Front Seat Belts (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Front Seat Belts (Solihull Plant Build) ((V) FROMHA000001)

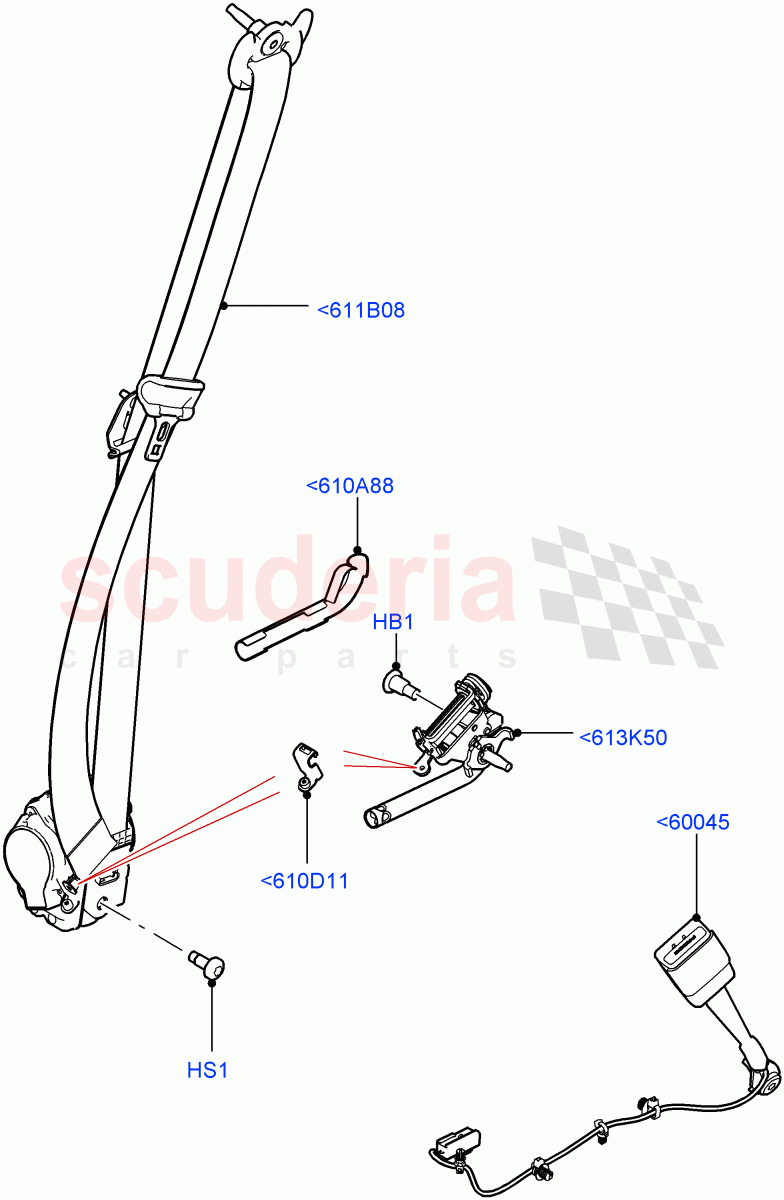

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR080344	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500410	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081110	BUCKLE - SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041845	COVER - SEAT BELT PRETENSIONER	Enquire	To Order
	LR041852	COVER - SEAT BELT PRETENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081145	PRETENSIONER BRACKET - SEAT BELT	Enquire	To Order
	LR081145	PRETENSIONER BRACKET - SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081122	SEAT BELT AND RETRACTOR	Enquire	To Order
	LR081124	SEAT BELT AND RETRACTOR	Enquire	To Order
	LR081125	SEAT BELT AND RETRACTOR	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081137	PRETENSIONER - SEAT BELT	Enquire	To Order
	LR081140	PRETENSIONER - SEAT BELT	Enquire	To Order
	LR081137	PRETENSIONER - SEAT BELT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<610A88	LR041845	COVER - SEAT BELT PRETENSIONER	LR041845 COVER - SEAT BELT PRETENSIONER RHD, Seatbelt Lock Retract-Standard / For Drivers Side	-	1	Enquire
<610A88	LR041852	COVER - SEAT BELT PRETENSIONER	LR041852 COVER - SEAT BELT PRETENSIONER LHD, Seatbelt Lock Retract-Standard / For Drivers Side	-	1	Enquire
<610D11	LR081145	PRETENSIONER BRACKET - SEAT BELT	LR081145 PRETENSIONER BRACKET - SEAT BELT Seatbelt Lock Retract-STD BTS / To: JA999999	-	1	Enquire
<610D11	LR081145	PRETENSIONER BRACKET - SEAT BELT	LR081145 PRETENSIONER BRACKET - SEAT BELT Seatbelt Lock Retraction-Automatic / From: KA000001	-	1	Enquire
<611B08	LR081122	SEAT BELT AND RETRACTOR	LR081122 SEAT BELT AND RETRACTOR St Belt Retractor Lock Less Clt Std / RH / To: JA999999	-	1	Enquire
<611B08	LR081124	SEAT BELT AND RETRACTOR	LR081124 SEAT BELT AND RETRACTOR RHD, Seatbelt Lock Retract-Standard / For Drivers Side / To: JA999999	-	1	Enquire
<611B08	LR081125	SEAT BELT AND RETRACTOR	LR081125 SEAT BELT AND RETRACTOR Seatbelt Lock Retract-STD BTS / RH / To: JA999999	-	1	Enquire
<611B08	LR081126	SEAT BELT AND RETRACTOR	LR081126 SEAT BELT AND RETRACTOR St Belt Retractor Lock Less Clt Std / LH / To: JA999999	-	1	Enquire
<611B08	LR081127	SEAT BELT AND RETRACTOR	LR081127 SEAT BELT AND RETRACTOR LHD, Seatbelt Lock Retract-Standard / For Drivers Side / To: JA999999	-	1	Enquire
<611B08	LR095401	SEAT BELT AND RETRACTOR	LR095401 SEAT BELT AND RETRACTOR Seatbelt Lock Retract-STD BTS / LH / To: JA999999	-	1	Enquire
<611B08	LR081122	SEAT BELT AND RETRACTOR	LR081122 SEAT BELT AND RETRACTOR StBlt ELR Without Rear Pretensioner / RH / From: KA000001	-	1	Enquire
<611B08	LR081124	SEAT BELT AND RETRACTOR	LR081124 SEAT BELT AND RETRACTOR RHD, Seatbelt - Standard EU / For Drivers Side / From: KA000001	-	1	Enquire
<611B08	LR081125	SEAT BELT AND RETRACTOR	LR081125 SEAT BELT AND RETRACTOR Seatbelt Lock Retraction-Automatic / RH / From: KA000001	-	1	Enquire
<611B08	LR081126	SEAT BELT AND RETRACTOR	LR081126 SEAT BELT AND RETRACTOR StBlt ELR Without Rear Pretensioner / LH / From: KA000001	-	1	Enquire
<611B08	LR081127	SEAT BELT AND RETRACTOR	LR081127 SEAT BELT AND RETRACTOR LHD, Seatbelt - Standard EU / For Drivers Side / From: KA000001	-	1	Enquire
<611B08	LR095401	SEAT BELT AND RETRACTOR	LR095401 SEAT BELT AND RETRACTOR Seatbelt Lock Retraction-Automatic / LH / From: KA000001	-	1	Enquire
<613K50	LR081137	PRETENSIONER - SEAT BELT	LR081137 PRETENSIONER - SEAT BELT RHD, Seatbelt Lock Retract-Standard / RH / To: JA999999	-	1	Enquire
<613K50	LR081140	PRETENSIONER - SEAT BELT	LR081140 PRETENSIONER - SEAT BELT LHD, Seatbelt Lock Retract-STD BTS / LH / To: JA999999	-	1	Enquire
<613K50	LR081137	PRETENSIONER - SEAT BELT	LR081137 PRETENSIONER - SEAT BELT RHD, Seatbelt - Standard EU / RH / From: KA000001	-	1	Enquire
<613K50	LR081140	PRETENSIONER - SEAT BELT	LR081140 PRETENSIONER - SEAT BELT LHD, Seatbelt Lock Retraction-Automatic / LH / From: KA000001	-	1	Enquire
<60045	LR081110	BUCKLE - SEAT BELT	LR081110 BUCKLE - SEAT BELT Driver And Passenger Seat	-	2	Enquire
HB1	LR080344	BOLT	LR080344 BOLT M10 X 28MM	-	2	Enquire
HS1	KYG500410	SCREW	KYG500410 SCREW M10 X 25MM, Self Tapping	-	2	Enquire
