Name: Rear Exhaust System (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMK2000001)
Rating: 5.0 (1 reviews)

View All

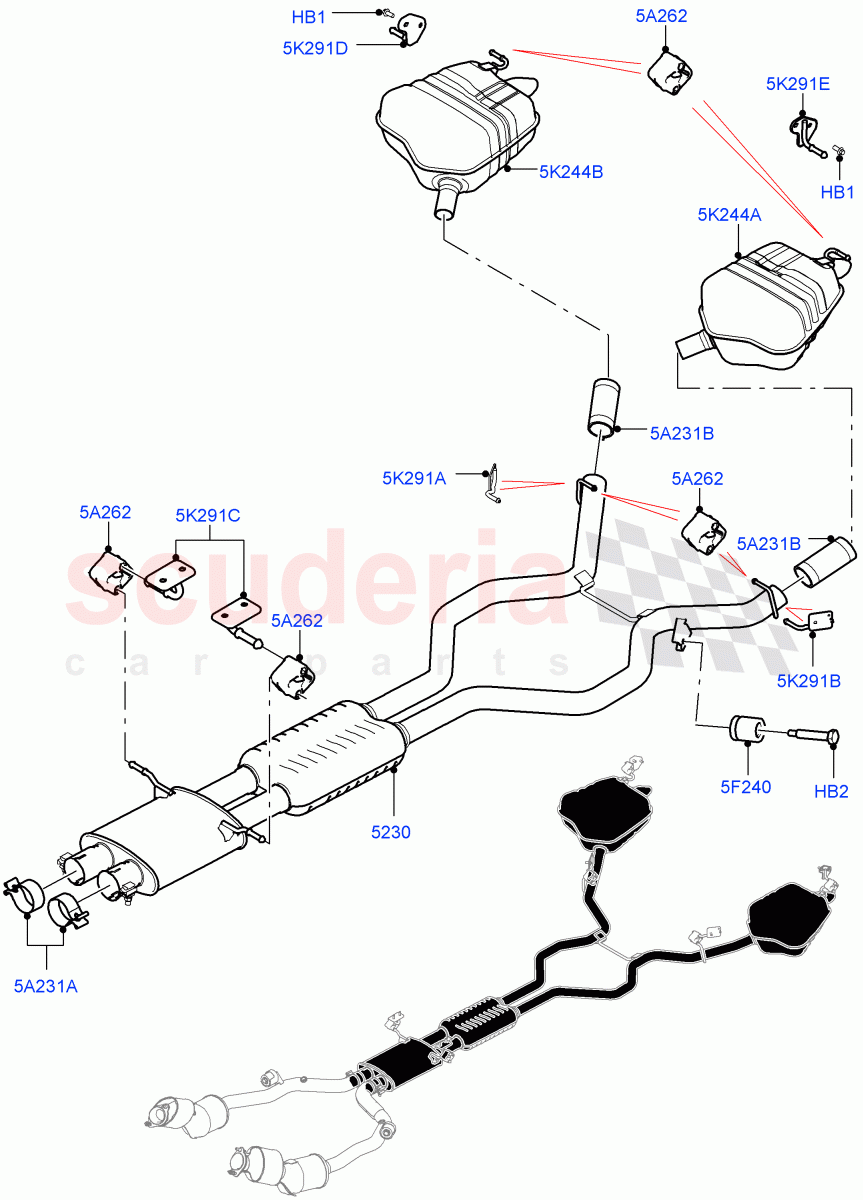

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126078	MUFFLER - CENTRE	$1,115.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088312	DAMPER - EXHAUST SYSTEM	$77.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036438	EXHAUST	$35.31	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	$77.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126085	MUFFLER - REAR	$701.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126086	MUFFLER - REAR	$701.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088302	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082704	BRACKET - REAR MUFFLER	$47.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082707	BRACKET - REAR MUFFLER	$47.31	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: K2000001 IN STOCK	$2.23	4
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking / From: K2000001	$2.53	1
5A231A	LR036438	EXHAUST	LR036438 EXHAUST 60MM, Front / From: K2000001	$35.31	2
5A231B	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, For Rear Muffler / From: K2000001	$77.02	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: K2000001	$23.23	6
5F240	LR088312	DAMPER - EXHAUST SYSTEM	LR088312 DAMPER - EXHAUST SYSTEM LH / From: K2000001	$77.97	1
5K244A	LR126085	MUFFLER - REAR	LR126085 MUFFLER - REAR LH / From: K2000001	$701.54	1
5K244B	LR126086	MUFFLER - REAR	LR126086 MUFFLER - REAR RH / From: K2000001	$701.54	1
5K291A	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST RH Centre / From: K2000001	$29.38	1
5K291B	LR088302	BRACKET - EXHAUST	LR088302 BRACKET - EXHAUST LH Centre / From: K2000001	$29.38	1
5K291C	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING RESONATOR, RH And LH / From: K2000001	$30.11	2
5K291D	LR082704	BRACKET - REAR MUFFLER	LR082704 BRACKET - REAR MUFFLER RH Rear / From: K2000001	$47.31	1
5K291E	LR082707	BRACKET - REAR MUFFLER	LR082707 BRACKET - REAR MUFFLER LH Rear / From: K2000001	$47.31	1
5230	LR126078	MUFFLER - CENTRE	LR126078 MUFFLER - CENTRE From: K2000001	$1,115.80	1

Rear Exhaust System (Nitra Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]
