Air Cleaner (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Air Cleaner (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR014311 BRACKET - AIR DUCT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR062025 CLEANER - AIR Enquire To Order
LR095793 CLEANER - AIR Enquire To Order
LR036428 CLEANER - AIR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR062606 CLEANER - AIR Enquire To Order
LR095787 CLEANER - AIR Enquire To Order
LR095791 CLEANER - AIR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR035726 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR044457 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036445 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036446 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR082421 MOULDING - SNOW INGRESS PROTECTOR Enquire To Order
LR095884 MOULDING - SNOW INGRESS PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR082417 MOULDING - SNOW INGRESS PROTECTOR Enquire To Order
View All

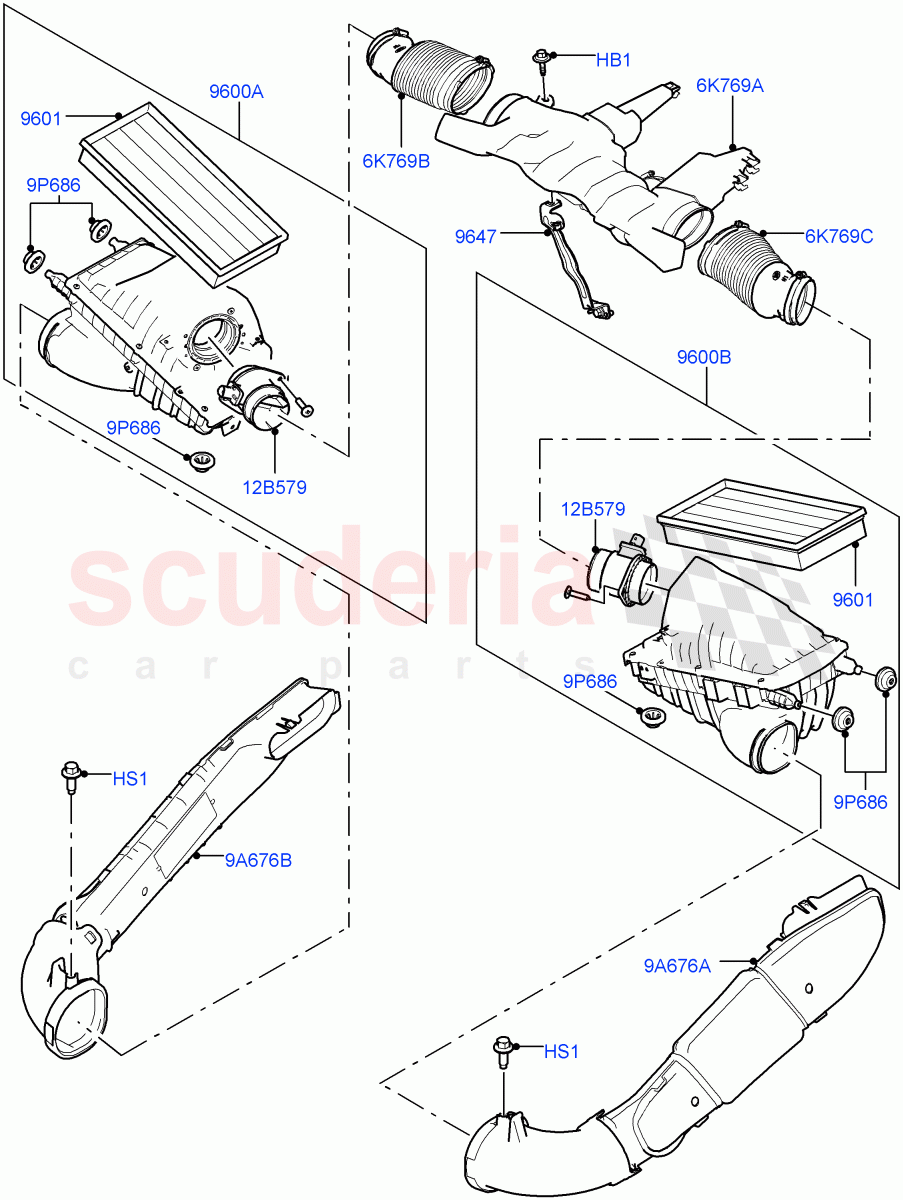

Air Cleaner (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Bracket, Hexagonal Head, M6 X 24MM 		- 12 Enquire
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		- 4 Enquire
6K769A LR044457
DUCT - AIR
Air Cleaner To Throttle Body, Centre 		- 1 Enquire
6K769B LR036445
DUCT - AIR
RH, Air Cleaner To Throttle Body 		- 1 Enquire
6K769C LR036446
DUCT - AIR
LH, Air Cleaner To Throttle Body 		- 1 Enquire
9A676A LR082421
MOULDING - SNOW INGRESS PROTECTOR
LH / To: HA003518 		- 1 Enquire
9A676A LR095884
MOULDING - SNOW INGRESS PROTECTOR
LH / From: HA003519 		- 1 Enquire
9A676B LR082417
MOULDING - SNOW INGRESS PROTECTOR
RH 		- 1 Enquire
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown 		- 6 Enquire
12B579 LR035726
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor 		- 2 Enquire
9600A LR062025
CLEANER - AIR
Air Cleaner S/S With H/C Trap / RH / To: HA013836 		- 1 Enquire
9600A LR095793
CLEANER - AIR
Air Cleaner S/S With H/C Trap / RH / From: HA013837 		- 1 Enquire
9600A LR036428
CLEANER - AIR
Air Cleaner-Dry/Single Stage / RH / To: HA013836 		- 1 Enquire
9600A LR095789
CLEANER - AIR
Air Cleaner-Dry/Single Stage / RH / From: HA013837 		- 1 Enquire
9600B LR062606
CLEANER - AIR
Air Cleaner S/S With H/C Trap / LH / To: HA013836 		- 1 Enquire
9600B LR095787
CLEANER - AIR
Air Cleaner S/S With H/C Trap / LH / From: HA013837 		- 1 Enquire
9600B LR095791
CLEANER - AIR
Air Cleaner-Dry/Single Stage / LH / From: HA013837 		- 1 Enquire
9600B LR036431
CLEANER - AIR
Air Cleaner-Dry/Single Stage / LH / To: HA013836 		- 1 Enquire
9601 LR161843
FILTER - AIR CLEANER 		- 2 Enquire
9647 LR014311
BRACKET - AIR DUCT SUPPORT
Air Duct Support 		- 1 Enquire
