Drive Shaft - Front Axle Drive (Propshaft, Nitra Plant Build) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Drive Shaft - Front Axle Drive (Propshaft, Nitra Plant Build) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TYG500141 BOLT Enquire To Order
LR092696 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
TYF500010 WASHER - SEALING Enquire To Order
LR141992 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR082562 SHAFT - FRONT AXLE Enquire To Order
LR141991 SHAFT - FRONT AXLE Enquire To Order
LR141988 SHAFT - FRONT AXLE Enquire To Order
Photo Part No Description Price (each) Stock
LR085960 NUT - PROPSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR034517 KIT - "O" RING Enquire To Order
View All

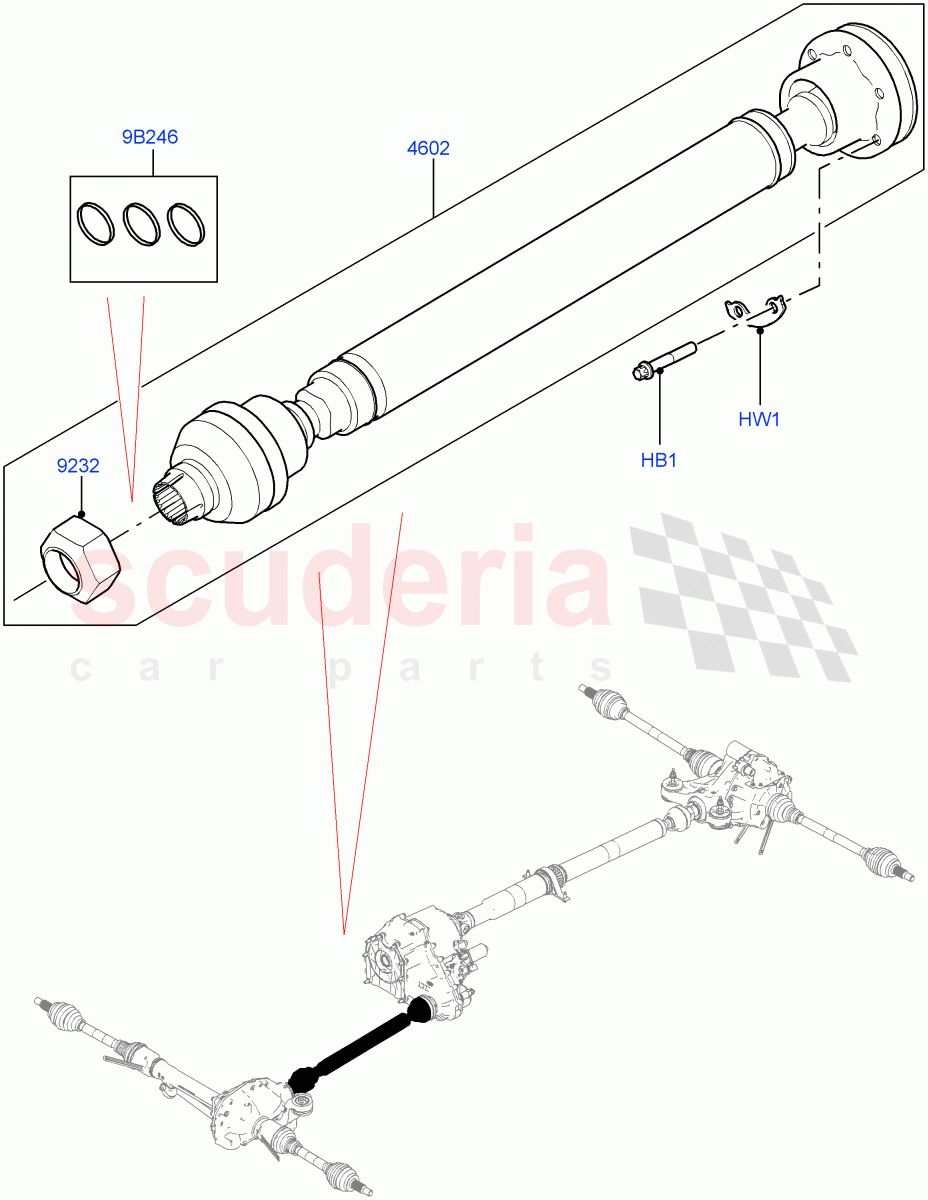

Drive Shaft - Front Axle Drive (Propshaft, Nitra Plant Build) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 TYG500141
BOLT
External Torx Head, M8 x 48MM / From: K2000001 / To: L2999999 		- 6 Enquire
HB1 LR092696
BOLT
External Torx Head, M10 x 52MM / From: M2000001 		- 6 Enquire
HW1 TYF500010
WASHER - SEALING
Propshaft / From: K2000001 / To: L2999999 		- 3 Enquire
HW1 LR141992
WASHER - SEALING
Propshaft, Service Fit - Flange Type Propshaft Connection / From: M2000001 		- 3 Enquire
9B246 LR034517
KIT - "O" RING
3 Piece / From: K2000001 		- 1 Enquire
4602 LR082562
SHAFT - FRONT AXLE
From: K2000001 / To: L2999999 		- 1 Enquire
4602 LR141991
SHAFT - FRONT AXLE
3.0L AJ20D6 Diesel High / From: M2000001 		- 1 Enquire
4602 LR141988
SHAFT - FRONT AXLE
2.0L I4 High DOHC AJ200 Petrol / From: M2000001 		- 1 Enquire
9232 LR085960
NUT - PROPSHAFT
Propshaft / From: K2000001 		- 1 Enquire
