Transmission Cooling Systems (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans Zf...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Transmission Cooling Systems (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR049457 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR036354 OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR062431 TUBE - OIL COOLER Enquire To Order
LR128181 TUBE - OIL COOLER Enquire To Order
LR144587 TUBE - OIL COOLER Enquire To Order
View All

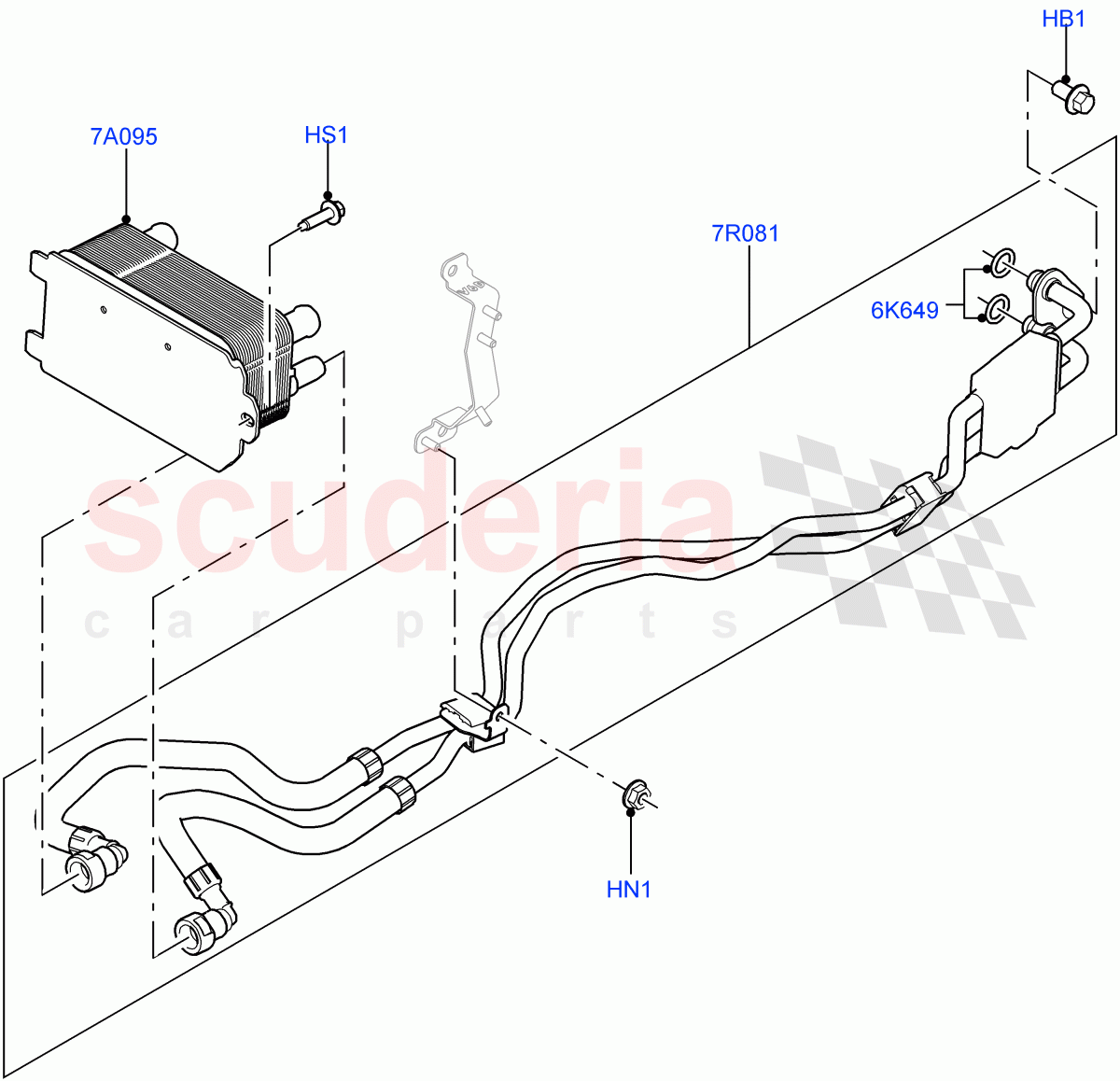

Transmission Cooling Systems (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: K2000001 		- 1 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: K2000001 		- 1 Enquire
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: K2000001 		- 1 Enquire
6K649 LR049457
O-RING 		- 2 Enquire
7A095 LR036354
OIL COOLER
From: K2000001 		- 1 Enquire
7R081 LR062431
TUBE - OIL COOLER
From: K2000001 / To: K2407028 		- 1 Enquire
7R081 LR128181
TUBE - OIL COOLER
From: K2407029 / To: L2445098 		- 1 Enquire
7R081 LR144587
TUBE - OIL COOLER
From: L2445099 		- 1 Enquire
