Fuel Lines (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Lines (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR082759 MANIFOLD - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR142295 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR142123 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
View All

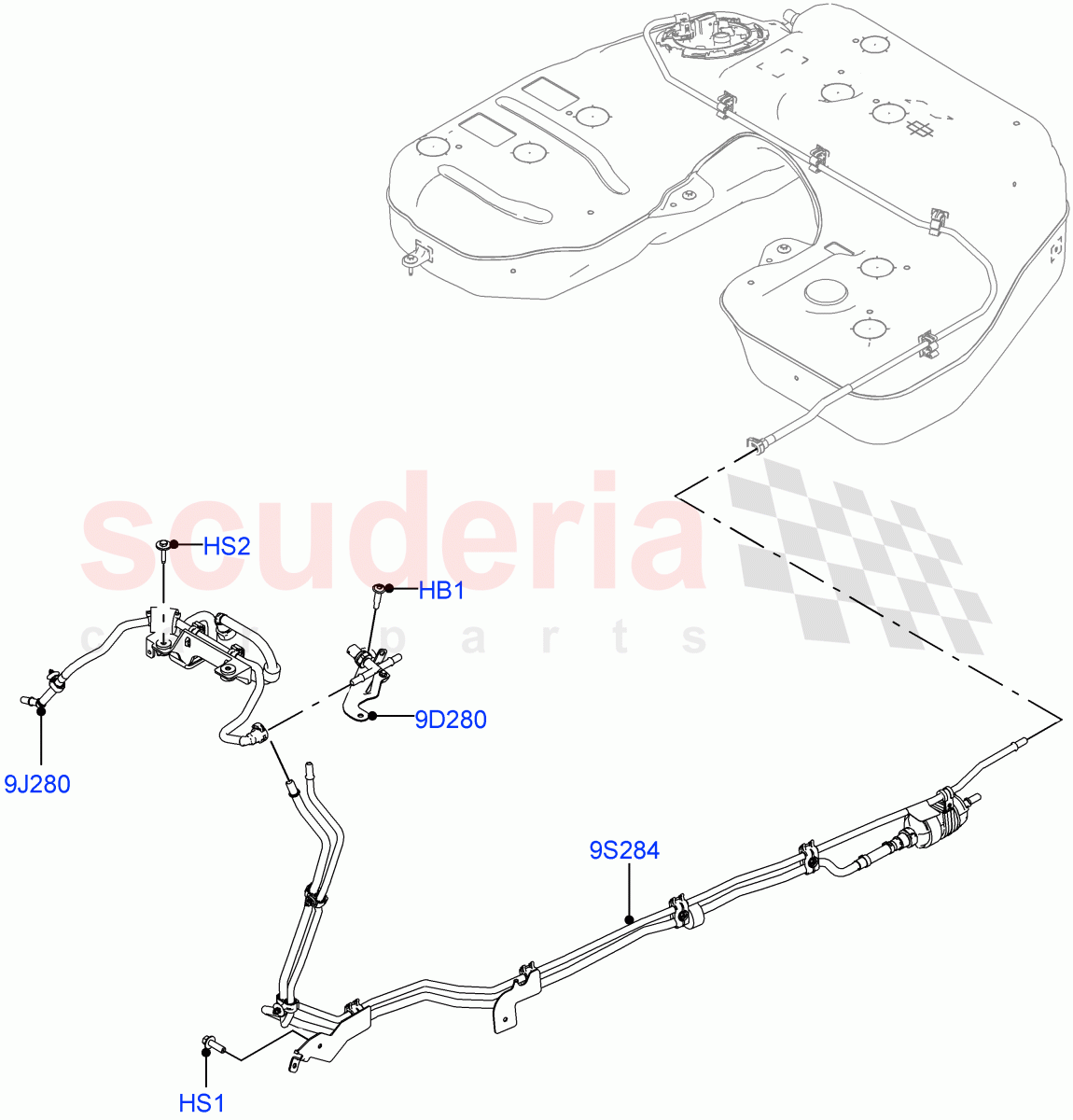

Fuel Lines (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx / From: M2000001 		- 2 Enquire
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001 		- 2 Enquire
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001 		- 2 Enquire
9D280 LR082759
MANIFOLD - FUEL SUPPLY
Fuel Pressure Sensor / From: M2000001 		- 1 Enquire
9J280 LR142295
PIPE - FUEL
Front / From: M2000001 		- 1 Enquire
9S284 LR142123
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: M2000001 		- 1 Enquire
