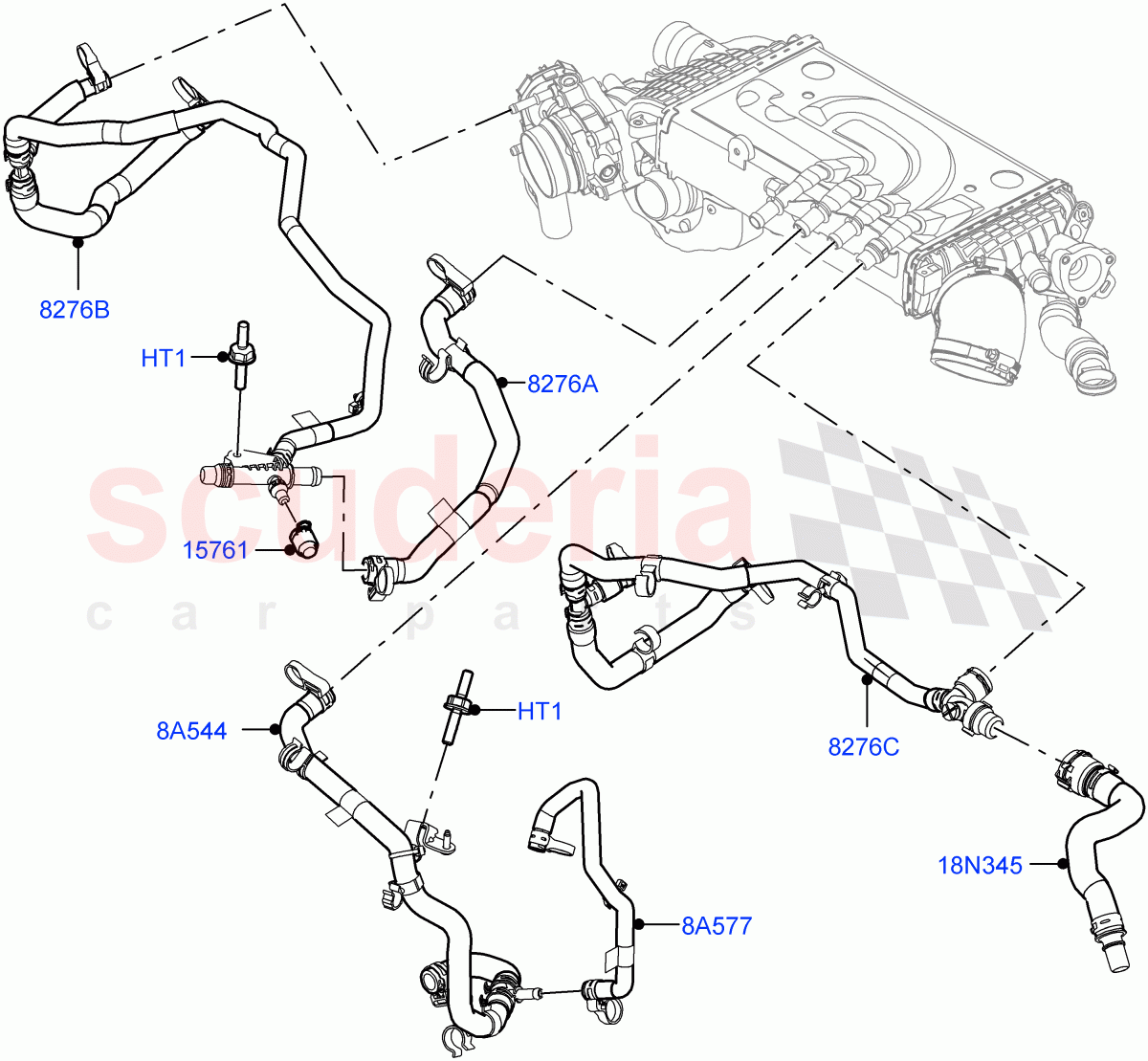

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR128187	STUD	$6.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159963	PLUG - BLANKING	$5.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147037	HOSE - WATER	$65.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121759	HOSE - WATER	$125.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137627	HOSE - WATER	$140.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121755	HOSE - WATER	$139.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121414	HOSE - THROTTLE BODY HEATER INLET	$31.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137848	HOSE - HEATER WATER	$57.03	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HT1	LR128187	STUD	LR128187 STUD Hexagonal Head, M6 X 22 + M6 X 18 / From: M2000001	$6.28	2
8A544	LR121755	HOSE - WATER	LR121755 HOSE - WATER Water Charge Air Cooler / From: M2000001	$139.50	1
8A577	LR121414	HOSE - THROTTLE BODY HEATER INLET	LR121414 HOSE - THROTTLE BODY HEATER INLET Heater Hose To Throttle Body / From: M2000001	$31.52	1
18N345	LR137848	HOSE - HEATER WATER	LR137848 HOSE - HEATER WATER Heater Water Control / From: M2000001	$57.03	1
8276A	LR147037	HOSE - WATER	LR147037 HOSE - WATER Intercooler Outlet / From: M2000001	$65.26	1
8276B	LR121759	HOSE - WATER	LR121759 HOSE - WATER Turbo Coolant Pipe / From: M2000001	$125.86	1
8276C	LR137627	HOSE - WATER	LR137627 HOSE - WATER Intercooler Inlet / From: M2000001	$140.55	1
15761	LR159963	PLUG - BLANKING	LR159963 PLUG - BLANKING From: M2000001	$5.81	1
