Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000048 NUT - HEX. - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR086041 SEAL - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR086042 SEAL - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FA108202 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR048842 WASHER - DRAIN PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR048841 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
IYX500050 KIT - GREASE AND ORING Enquire To Order
Photo Part No Description Price (each) Stock
LR048332 BRACKET - DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
LR044897 CHAIN - TRANSFER DRIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR086059 FLANGE - PROPSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR039528 KIT - TRANSFER BOX FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
LR046648 DAMPER - VIBRATION Enquire To Order
Photo Part No Description Price (each) Stock
LR122972 DAMPER - VIBRATION Enquire To Order
View All

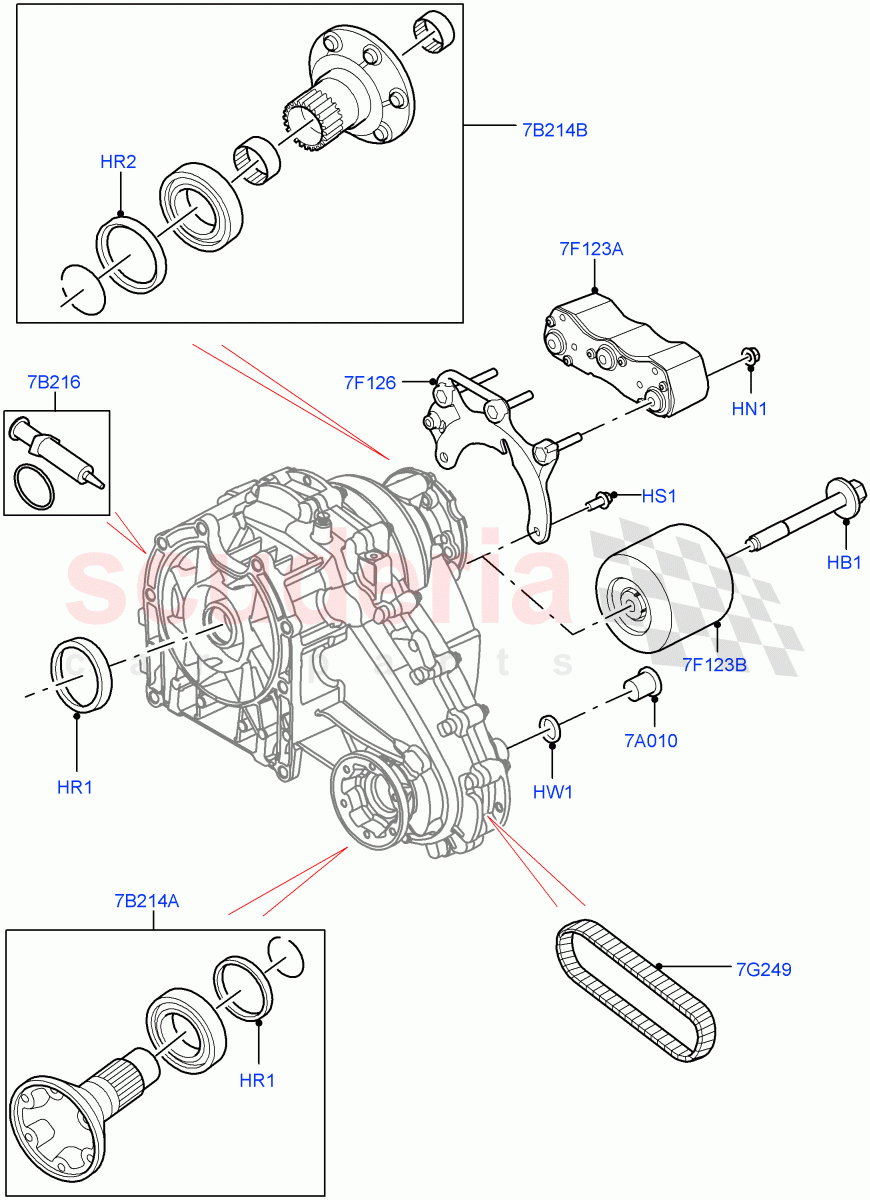

Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR000048
NUT - HEX. - FLANGED
3.0L DOHC GDI SC V6 PETROL / M8 		- 3 Enquire
HR1 LR086041
SEAL - SPECIAL
Input Shaft, Seal 		- 1 Enquire
HR2 LR086042
SEAL - SPECIAL
Seal, Oil - Rear Output Flange 		- 1 Enquire
HS1 FA108202
SCREW
3.0L DOHC GDI SC V6 PETROL / Hexagonal Head, M8 X 20MM, Taptite 		- 3 Enquire
HW1 LR048842
WASHER - DRAIN PLUG
Drain, FILLER, M18 		- 2 Enquire
7A010 LR048841
PLUG - OIL DRAIN
Drain, FILLER, M18 		- 2 Enquire
7B214A LR086059
FLANGE - PROPSHAFT
Front, Propshaft 		- 1 Enquire
7B214B LR039528
KIT - TRANSFER BOX FLANGE
Propshaft, Rear 		- 1 Enquire
7B216 IYX500050
KIT - GREASE AND ORING 		- 1 Enquire
7F123A LR046648
DAMPER - VIBRATION
3.0L DOHC GDI SC V6 PETROL 		- 1 Enquire
7F123B LR122972
DAMPER - VIBRATION
3.0L DOHC GDI SC V6 PETROL 		- 1 Enquire
7F126 LR048332
BRACKET - DAMPER
3.0L DOHC GDI SC V6 PETROL 		- 1 Enquire
7G249 LR044897
CHAIN - TRANSFER DRIVE 		- 1 Enquire
