Towing Equipment (Solihull Plant Build, Nitra Plant Build, Detachable Tow Bar) ((-) "CDN/USA") of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Towing Equipment (Solihull Plant Build, Nitra Plant Build, Detachable Tow Bar) ((-) "CDN/USA")

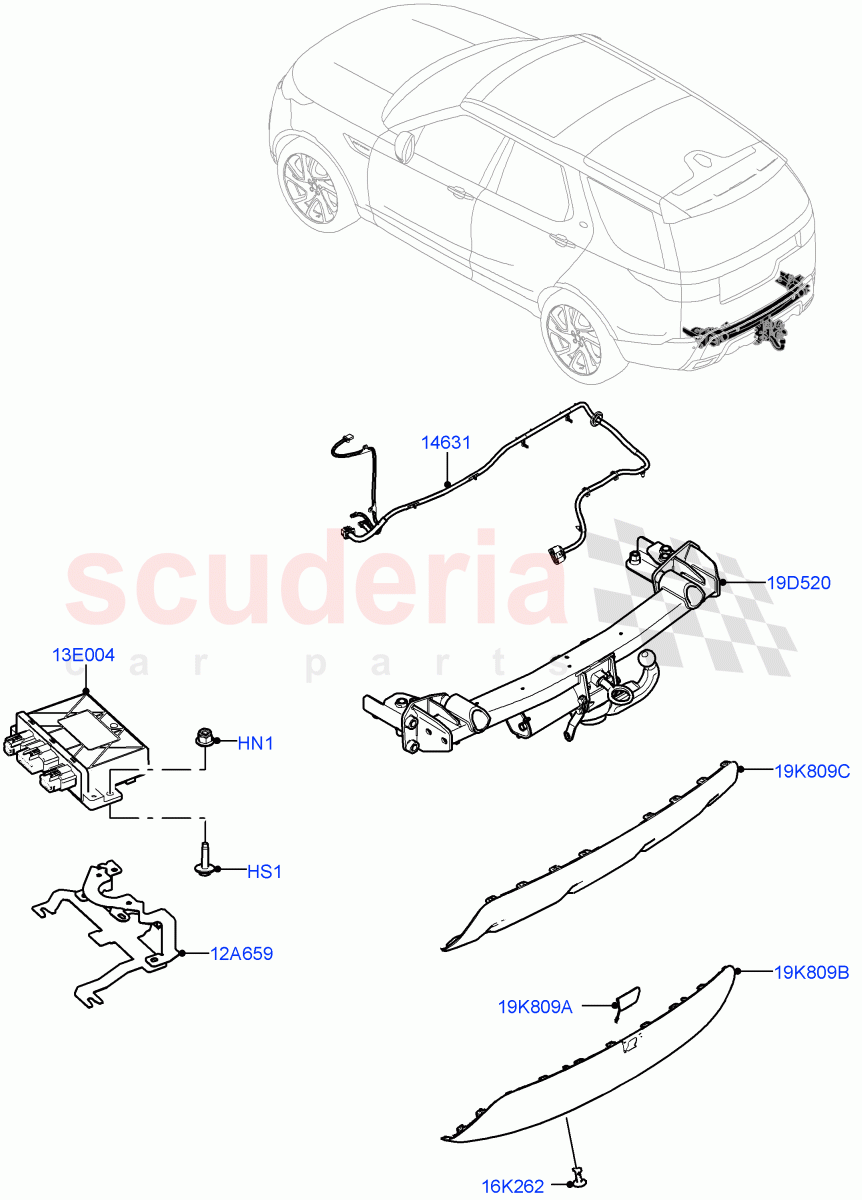

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146570	WIRING - TRAILER COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLRV0131	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLYT0295	MODULE - BODY CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012844	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLRT0305	KIT - TOW BRACKET	Enquire	To Order
	VPLRT0171	KIT - TOW BRACKET	Enquire	To Order
	VPLRT0171	KIT - TOW BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142612	COVER - TOWING HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142608	COVER - TOWING HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083036	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR123355	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR123355	COVER - TOWING HOOK OPENING	Enquire	To Order

...and 9 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	FN106042	NUT	FN106042 NUT (-)"AUS" / Hexagonal Head, M6 / From: M2000001	-	3	Enquire
HS1	FS106256	SCREW	FS106256 SCREW (-)"AUS" / M6 x 25MM / From: M2000001	-	3	Enquire
12A659	VPLRV0131	BRACKET - MODULE	VPLRV0131 BRACKET - MODULE (-)"AUS" / From: M2000001	-	1	Enquire
13E004	VPLYT0295	MODULE - BODY CONTROL	VPLYT0295 MODULE - BODY CONTROL (-)"AUS" / From: M2000001	-	1	Enquire
16K262	LR012844	CLIP - RETAINING	LR012844 CLIP - RETAINING (-)"AUS" / 1/4 Turn Click Type / From: M2000001	-	4	Enquire
19D520	VPLRT0305	KIT - TOW BRACKET	VPLRT0305 KIT - TOW BRACKET (-)"AUS" / Detachable, Not Available In China For Vehicles Manufactured Post 31-Oct-2018 / From: M2000001	-	1	Enquire
19D520	VPLRT0171	KIT - TOW BRACKET	VPLRT0171 KIT - TOW BRACKET (-)"AUS" / Detachable, Not Available In China For Vehicles Manufactured Post 31-Oct-2018 / To: L2999999	-	1	Enquire
19D520	VPLRT0171	KIT - TOW BRACKET	VPLRT0171 KIT - TOW BRACKET (-)"AUS" / Detachable, Not Available In China For Vehicles Manufactured Post 31-Oct-2018 / To: LA999999	-	1	Enquire
19K809A	LR142612	COVER - TOWING HOOK	LR142612 COVER - TOWING HOOK (-)"AUS" / From: M2000001	-	1	Enquire
19K809B	LR142608	COVER - TOWING HOOK	LR142608 COVER - TOWING HOOK (-)"AUS" / From: M2000001	-	1	Enquire
19K809C	LR083036	COVER - TOWING HOOK OPENING	LR083036 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lwr Valance - Dark Silver / To: KA084731	-	1	Enquire
19K809C	LR123355	COVER - TOWING HOOK OPENING	LR123355 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lwr Valance - Dark Silver / From: KA084732 / To: LA999999	-	1	Enquire
19K809C	LR123355	COVER - TOWING HOOK OPENING	LR123355 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lwr Valance - Dark Silver / From: K2000001 / To: L2999999	-	1	Enquire
19K809C	LR083037	COVER - TOWING HOOK OPENING	LR083037 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lwr Valance - White Silver / To: KA084731	-	1	Enquire
19K809C	LR123356	COVER - TOWING HOOK OPENING	LR123356 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lwr Valance - White Silver / From: KA084732 / To: LA999999	-	1	Enquire
19K809C	LR123356	COVER - TOWING HOOK OPENING	LR123356 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lwr Valance - White Silver / From: K2000001 / To: L2999999	-	1	Enquire
19K809C	LR083038	COVER - TOWING HOOK OPENING	LR083038 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lower Valance - Anthracite / To: KA084731	-	1	Enquire
19K809C	LR123357	COVER - TOWING HOOK OPENING	LR123357 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lower Valance - Anthracite / From: KA084732 / To: LA999999	-	1	Enquire
19K809C	LR123357	COVER - TOWING HOOK OPENING	LR123357 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lower Valance - Anthracite / From: K2000001 / To: L2999999	-	1	Enquire
19K809C	LR082880	COVER - TOWING HOOK OPENING	LR082880 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lower Valance-Indus Silver / To: KA084731	-	1	Enquire
19K809C	LR123354	COVER - TOWING HOOK OPENING	LR123354 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lower Valance-Indus Silver / From: KA084732 / To: LA999999	-	1	Enquire
19K809C	LR123354	COVER - TOWING HOOK OPENING	LR123354 COVER - TOWING HOOK OPENING (-)"AUS", Rear Bmp Lower Valance-Indus Silver / From: K2000001 / To: L2999999	-	1	Enquire
14631	LR146570	WIRING - TRAILER COUPLING	LR146570 WIRING - TRAILER COUPLING (-)"AUS" / From: M2000001	-	1	Enquire
