Transmission Cooling Systems (Solihull Plant Build) (3.0 V6 D Low Mt Row, 8 Speed Auto Trans Zf...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Transmission Cooling Systems (Solihull Plant Build) (3.0 V6 D Low MT ROW, 8 Speed Auto Trans ZF...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR049457 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR036354 OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR062431 TUBE - OIL COOLER Enquire To Order
View All

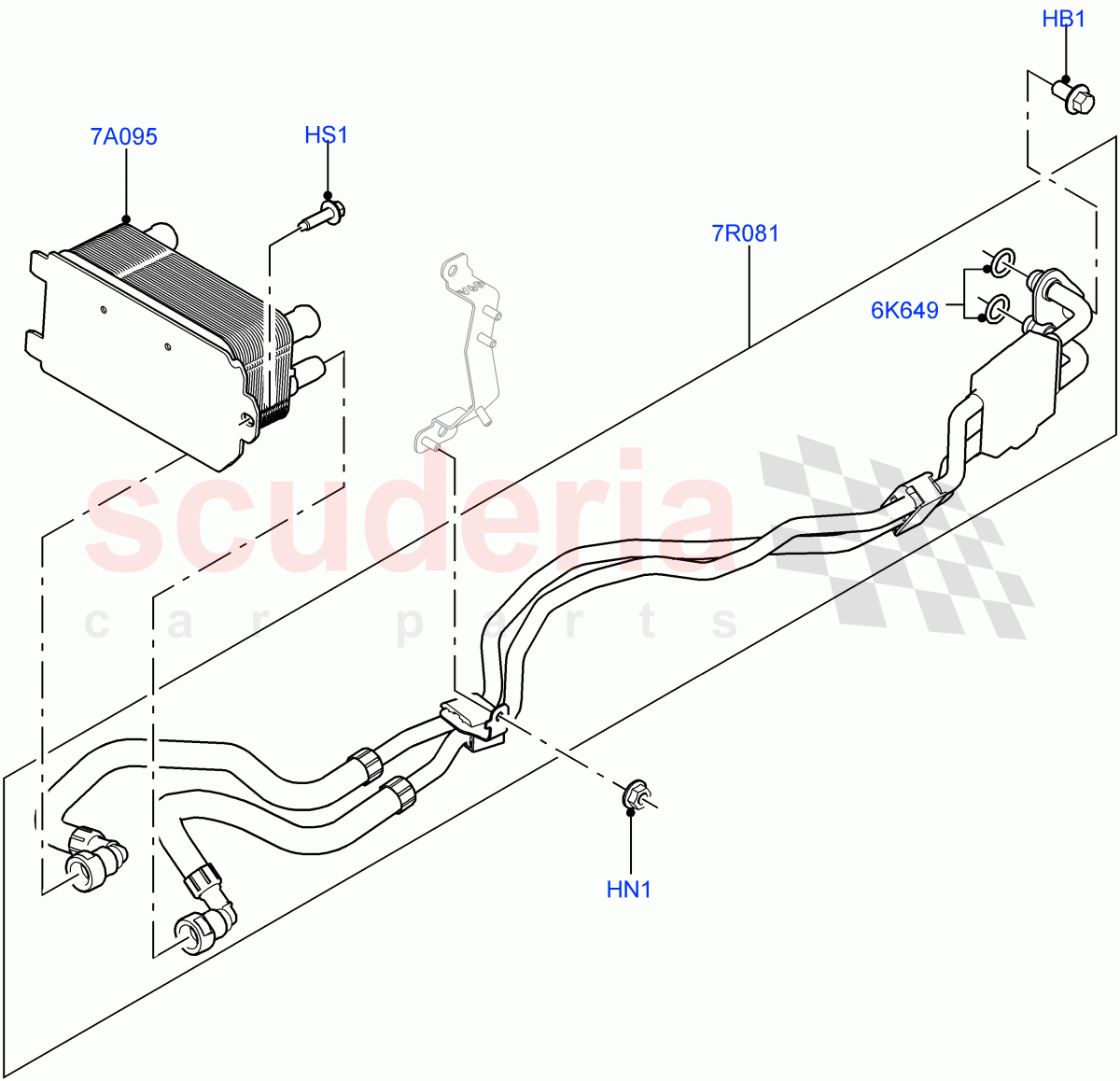

Transmission Cooling Systems (Solihull Plant Build) (3.0 V6 D Low MT ROW, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Gen2 Twin Turbo, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMAA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 1 Enquire
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM 		- 1 Enquire
6K649 LR049457
O-RING 		- 2 Enquire
7A095 LR036354
OIL COOLER 		- 1 Enquire
7R081 LR062431
TUBE - OIL COOLER 		- 1 Enquire
