Rear Exhaust System (Nitra Plant Build) (3.0L Aj20D6 Diesel High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Exhaust System (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WYG500060 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR141903 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR143217 MUFFLER - CENTER Enquire To Order
LR157604 MUFFLER - CENTRE Enquire To Order
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR141782 ACTUATOR - ELECTRONIC EXHAUST VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR036441 CLAMP - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
WCL500030 CLAMP - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR088313 DAMPER - EXHAUST SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR088312 DAMPER - EXHAUST SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR113558 DAMPER - DAMPING MASS Enquire To Order
Photo Part No Description Price (each) Stock
LR113559 DAMPER - DAMPING MASS Enquire To Order
Photo Part No Description Price (each) Stock
LR088310 MUFFLER - REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR088309 MUFFLER - REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR088295 BRACKET - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR088302 BRACKET - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR082704 BRACKET - REAR MUFFLER Enquire To Order
Photo Part No Description Price (each) Stock
LR082707 BRACKET - REAR MUFFLER Enquire To Order
View All

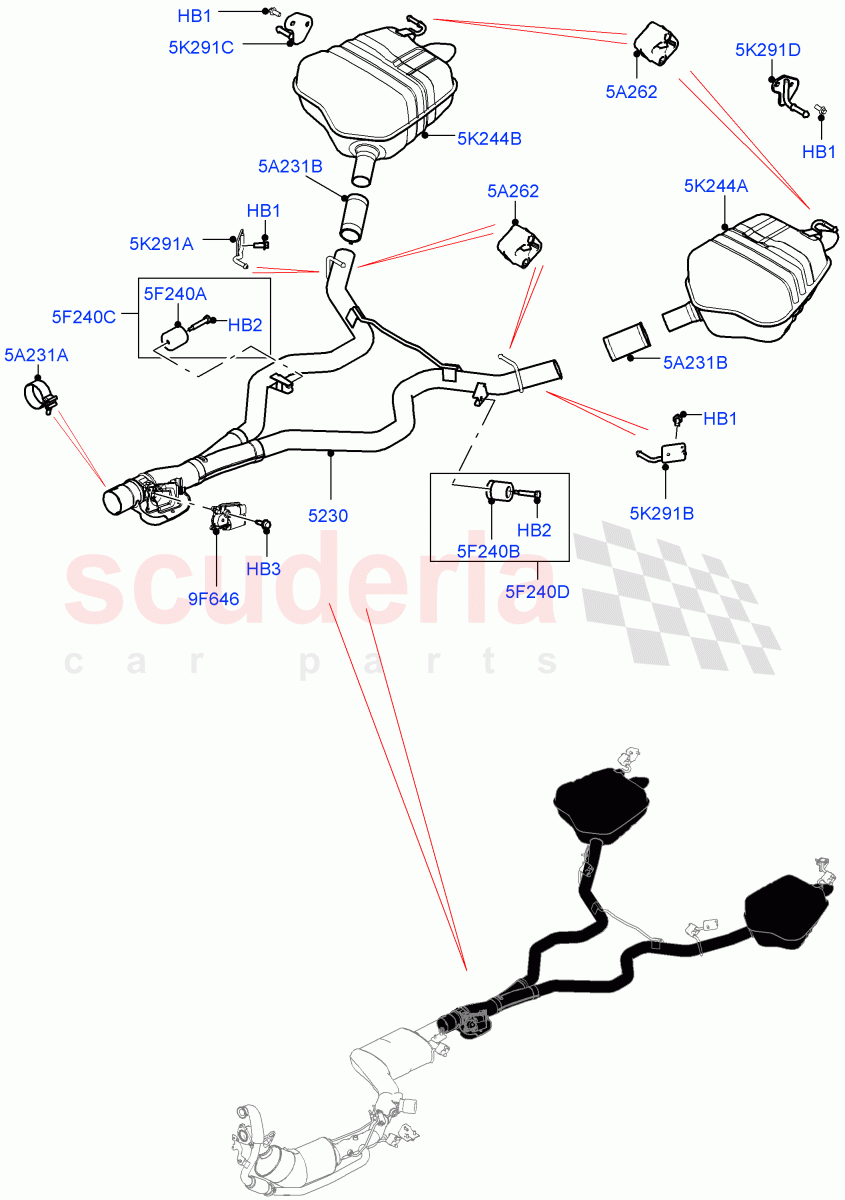

Rear Exhaust System (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: M2000001 		- 6 Enquire
HB2 WYG500060
BOLT
M8 X 70 - 8.8, Self Locking / From: M2000001 		- 2 Enquire
HB3 LR141903
BOLT
Actuator, M6 X 20MM / From: M2000001 		- 3 Enquire
5A231A LR036441
CLAMP - EXHAUST
70MM, Front / From: M2000001 		- 1 Enquire
5A231B WCL500030
CLAMP - EXHAUST
55MM, Rear / From: M2000001 		- 2 Enquire
5A262 LR090360
INSULATOR - RUBBER
From: M2000001 		- 4 Enquire
5F240A LR088313
DAMPER - EXHAUST SYSTEM
RH / From: M2000001 		- 1 Enquire
5F240B LR088312
DAMPER - EXHAUST SYSTEM
LH / From: M2000001 		- 1 Enquire
5F240C LR113558
DAMPER - DAMPING MASS
RH, Kit / From: M2000001 		- 1 Enquire
5F240D LR113559
DAMPER - DAMPING MASS
LH, Kit / From: M2000001 		- 1 Enquire
5K244A LR088310
MUFFLER - REAR
LH / From: M2000001 		- 1 Enquire
5K244B LR088309
MUFFLER - REAR
RH / From: M2000001 		- 1 Enquire
5K291A LR088295
BRACKET - EXHAUST
RH Centre / From: M2000001 		- 1 Enquire
5K291B LR088302
BRACKET - EXHAUST
LH Centre / From: M2000001 		- 1 Enquire
5K291C LR082704
BRACKET - REAR MUFFLER
RH Rear / From: M2000001 		- 1 Enquire
5K291D LR082707
BRACKET - REAR MUFFLER
LH Rear / From: M2000001 		- 1 Enquire
9F646 LR141782
ACTUATOR - ELECTRONIC EXHAUST VALVE
From: M2000001 		- 1 Enquire
5230 LR143217
MUFFLER - CENTER
From: M2000001 / To: M2450313 		- 1 Enquire
5230 LR157604
MUFFLER - CENTRE
From: M2450314 		- 1 Enquire
