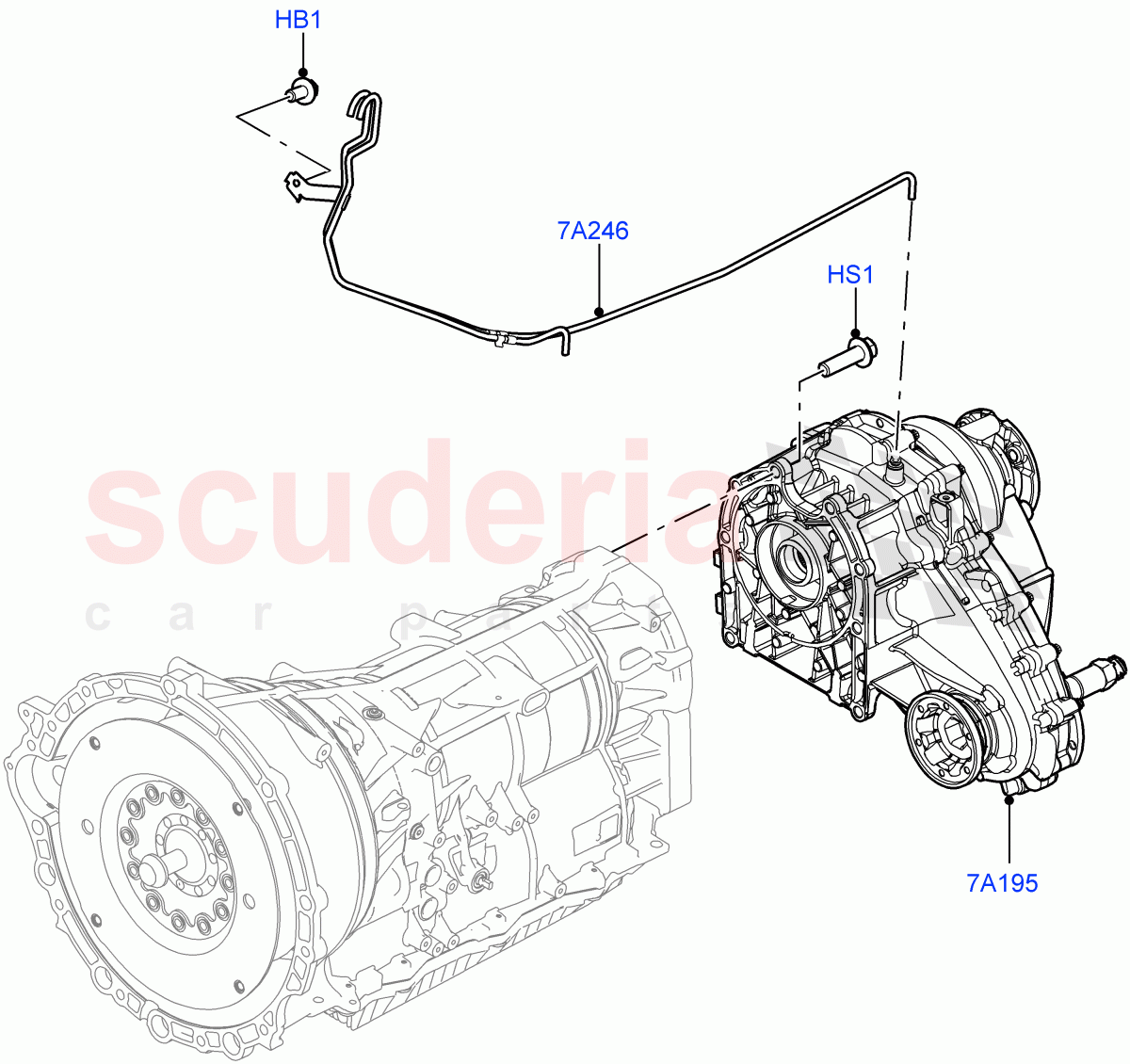

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FT110356	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080767	TUBE - BREATHER	Enquire	To Order
	LR082640	TUBE - TRANSMISSION VENTILATION	Enquire	To Order
	LR080753	TUBE - TRANSMISSION VENTILATION	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126	BOLT	FS106126 BOLT Breather Pipe, Hexagonal Head, M6 x 12MM	-	1	Enquire
HS1	FT110356	SCREW	FT110356 SCREW Hexagonal Head, M10 x 35MM	-	8	Enquire
7A195	LR082663	TRANSFER BOX	LR082663 TRANSFER BOX To: HA036470	-	1	Enquire
7A195	LR105963	TRANSFER BOX	LR105963 TRANSFER BOX From: HA036471 / To: JA068480	-	1	Enquire
7A195	LR117096	TRANSFER BOX	LR117096 TRANSFER BOX From: JA068481	-	1	Enquire
7A246	LR080767	TUBE - BREATHER	LR080767 TUBE - BREATHER 3.0L DOHC GDI SC V6 PETROL / Gearbox, Transfer Box	-	1	Enquire
7A246	LR082640	TUBE - TRANSMISSION VENTILATION	LR082640 TUBE - TRANSMISSION VENTILATION 2.0L I4 DSL HIGH DOHC AJ200 / Gearbox, Includes Bracket, Transfer Box	-	1	Enquire
7A246	LR080753	TUBE - TRANSMISSION VENTILATION	LR080753 TUBE - TRANSMISSION VENTILATION 3.0 V6 D Gen2 Mono Turbo / Gearbox, Includes Bracket, Transfer Box	-	1	Enquire
