Name: Air Suspension Controls/Electrics (Nitra Plant Build) ((V) FROMK2000001)
Rating: 5.0 (1 reviews)

View All

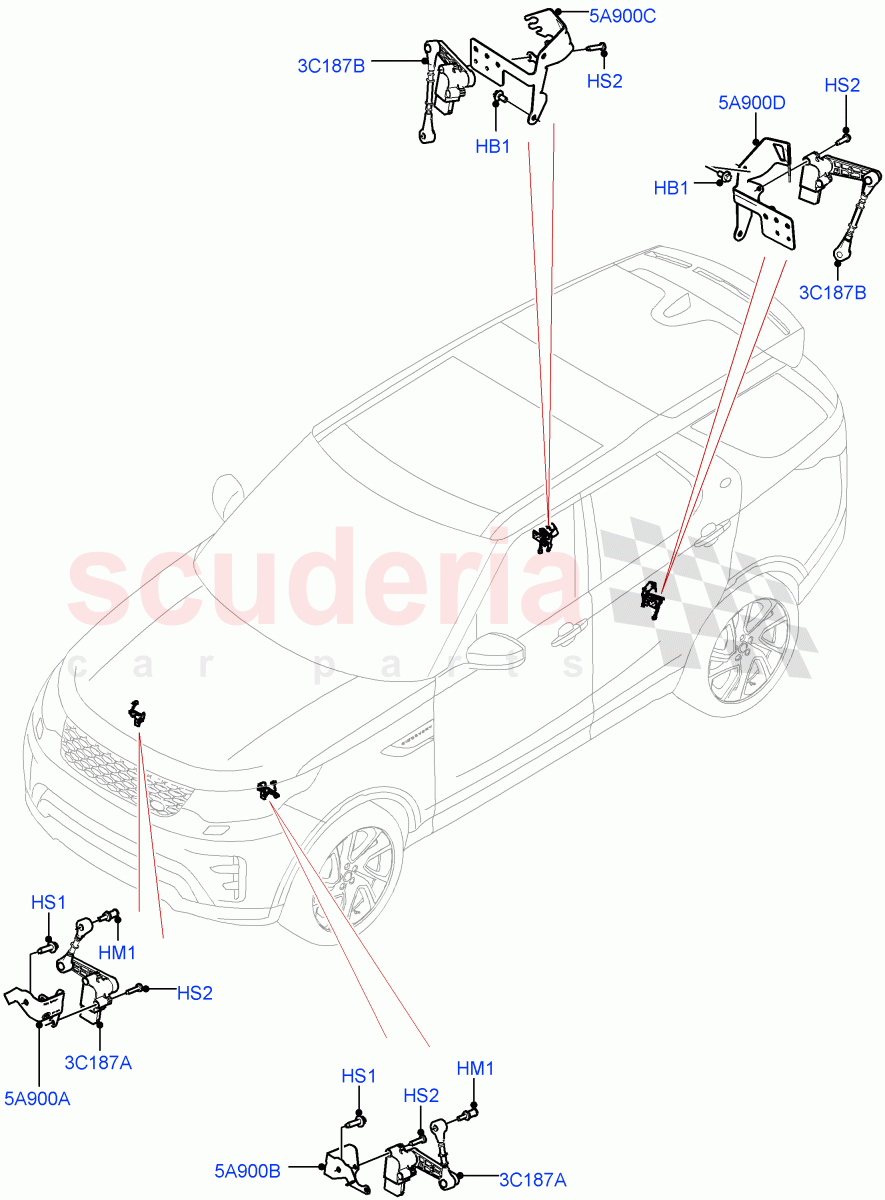

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126M	BOLT	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001707	PIN	$6.16	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR008793	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098914	SENSOR - AIR SUSPENSION	$195.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098915	SENSOR - AIR SUSPENSION	$198.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033254	BRACKET - SENSOR MOUNTING	$76.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033255	BRACKET - SENSOR MOUNTING	$76.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084049	BRACKET - SENSOR MOUNTING	$29.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084050	BRACKET - SENSOR MOUNTING	$29.61	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126M	BOLT	FS106126M BOLT Hexagonal Head, M6 x 12MM / From: K2000001	$1.12	4
HM1	LR001707	PIN	LR001707 PIN 16 MM / From: K2000001	$6.16	2
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: K2000001 IN STOCK	$3.31	2
HS2	LR008793	SCREW	LR008793 SCREW M5 X 16MM, Torx / From: K2000001	$0.95	8
3C187A	LR098914	SENSOR - AIR SUSPENSION	LR098914 SENSOR - AIR SUSPENSION LED Headlamps, With Standard Duty Coil Spring Susp / Front, RH/LH / From: K2000001	$195.86	2
3C187B	LR098915	SENSOR - AIR SUSPENSION	LR098915 SENSOR - AIR SUSPENSION LED Headlamps, With Standard Duty Coil Spring Susp / Rear, RH/LH / From: K2000001	$198.81	2
5A900A	LR033254	BRACKET - SENSOR MOUNTING	LR033254 BRACKET - SENSOR MOUNTING RH Front / From: K2000001	$76.16	1
5A900B	LR033255	BRACKET - SENSOR MOUNTING	LR033255 BRACKET - SENSOR MOUNTING LH Front / From: K2000001	$76.16	1
5A900C	LR084049	BRACKET - SENSOR MOUNTING	LR084049 BRACKET - SENSOR MOUNTING RH Rear / From: K2000001	$29.61	1
5A900D	LR084050	BRACKET - SENSOR MOUNTING	LR084050 BRACKET - SENSOR MOUNTING LH Rear / From: K2000001	$29.61	1

Air Suspension Controls/Electrics (Nitra Plant Build) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]
