Name: Oil Pan/Oil Level Indicator (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)
Rating: 4.2 (1 reviews)

Oil Pan/Oil Level Indicator (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Oil Pan/Oil Level Indicator (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

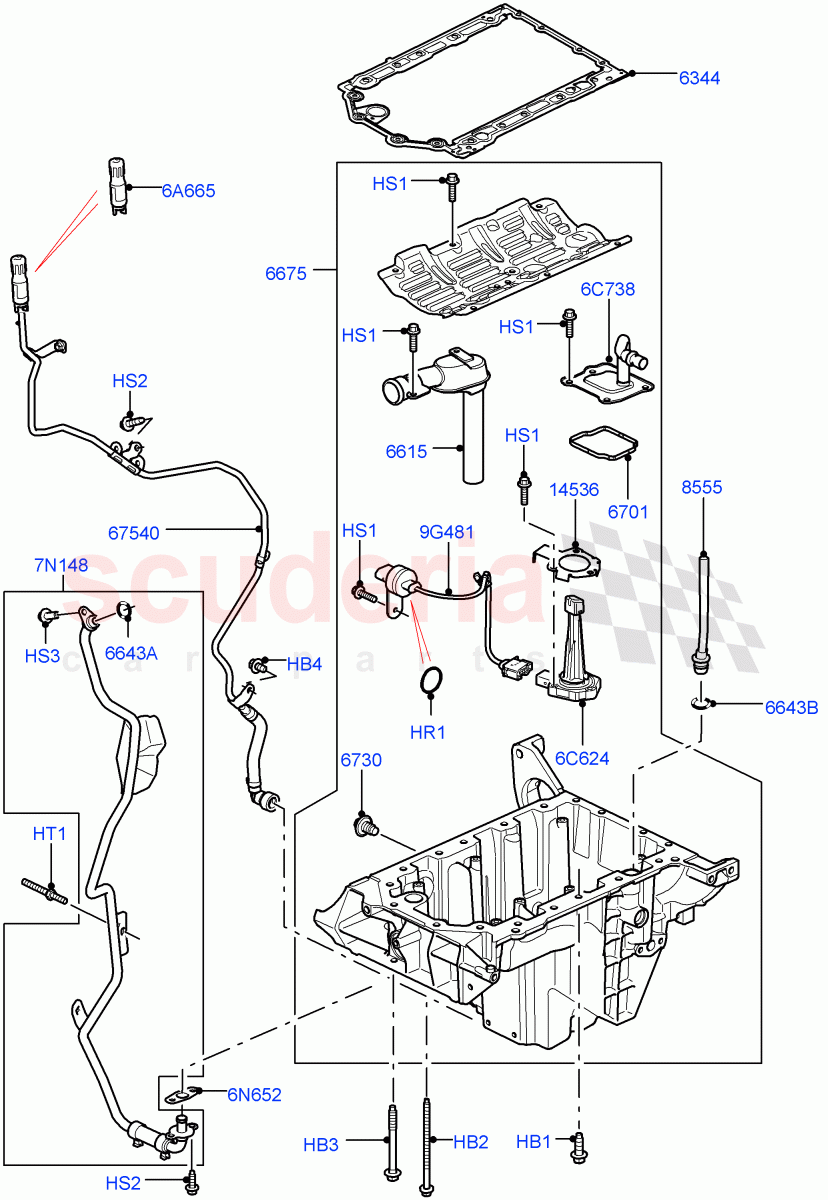

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1305834	BOLT	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	$2.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1419374	BOLT	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106106	BOLT	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096214	RING - SEALING	$7.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018816	SCREW	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4380670	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014198	STUD	$8.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005994	GASKET - OIL PAN	$37.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013527	TUBE - OIL PUMP INLET	$114.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086423	PAN - ENGINE OIL	$1,359.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014174	SEAL - COVER	$35.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038744	PLUG - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013608	TUBE - CRANKCASE VENTILATION	$42.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086422	RETAINER - OIL PAN	$14.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018460	O-RING	$7.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013568	O-RING	$10.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054148	TUBE - OIL EXTRACTION	$106.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013740	CAP - OIL LEVEL TUBE	$73.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012640	SENSOR - OIL LEVEL	$85.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037782	COVER AND TUBE - SCAVENGE RESERVOIR	$72.22	To Order

Photo	Part No	Description	Price (each)	Stock
	1331076	GASKET - OIL TUBE	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052353	TUBE - OIL	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086424	LEAD - OIL LEVEL SENSOR	$89.17	To Order
	LR136706	WIRE - OIL LEVEL SENSOR	$77.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1305834	BOLT	1305834 BOLT M8 X 20MM, Oil Pan	$2.19	9
HB2	1225745	BOLT AND WASHER - HEX.HEAD IN STOCK	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM, Oil Pan IN STOCK	$2.90	8
HB3	1419374	BOLT	1419374 BOLT M8 X 75MM, Oil Pan	$4.04	1
HB4	FS106106	BOLT	FS106106 BOLT Hexagonal Head, M6 X 10MM	$0.88	1
HR1	LR096214	RING - SEALING	LR096214 RING - SEALING Wiring Connector	$7.50	2
HS1	LR018816	SCREW	LR018816 SCREW M6 x 25MM	$2.32	16
HS2	4364422	SCREW	4364422 SCREW M6 X 16MM, Tube	$1.30	3
HS3	4380670	SCREW	4380670 SCREW Hexagonal Head, M6 X 16MM	$0.73	1
HT1	LR014198	STUD	LR014198 STUD M6 X 20MM, M6 X 40MM	$8.21	1
6A665	LR013740	CAP - OIL LEVEL TUBE	LR013740 CAP - OIL LEVEL TUBE Tube - Oil Extraction	$73.33	1
6C624	LR012640	SENSOR - OIL LEVEL	LR012640 SENSOR - OIL LEVEL	$85.24	1
6C738	LR037782	COVER AND TUBE - SCAVENGE RESERVOIR	LR037782 COVER AND TUBE - SCAVENGE RESERVOIR	$72.22	1
6N652	1331076	GASKET - OIL TUBE	1331076 GASKET - OIL TUBE Oil Tube	$1.32	1
7N148	LR052353	TUBE - OIL	LR052353 TUBE - OIL Scavenger Pipe	$288.81	1
9G481	LR086424	LEAD - OIL LEVEL SENSOR	LR086424 LEAD - OIL LEVEL SENSOR Sensor - Oil Level / To: HA999999	$89.17	1
9G481	LR136706	WIRE - OIL LEVEL SENSOR	LR136706 WIRE - OIL LEVEL SENSOR Sensor - Oil Level / From: JA000001	$77.20	1
6344	LR005994	GASKET - OIL PAN	LR005994 GASKET - OIL PAN Oil Pan	$37.28	1
6615	LR013527	TUBE - OIL PUMP INLET	LR013527 TUBE - OIL PUMP INLET	$114.86	1
6643A	LR018460	O-RING	LR018460 O-RING Scavenger Pipe	$7.31	1
6643B	LR013568	O-RING	LR013568 O-RING Ventilation Tube	$10.06	1
6675	LR086423	PAN - ENGINE OIL	LR086423 PAN - ENGINE OIL	$1,359.92	1
6701	LR014174	SEAL - COVER	LR014174 SEAL - COVER Cover Scavenge Reservoir	$35.97	1
6730	LR038744	PLUG - OIL	LR038744 PLUG - OIL M14 X 1.5	-	1	Enquire
8555	LR013608	TUBE - CRANKCASE VENTILATION	LR013608 TUBE - CRANKCASE VENTILATION Crankcase Ventilation	$42.87	1
14536	LR086422	RETAINER - OIL PAN	LR086422 RETAINER - OIL PAN Sensor - Oil Level / From: AA000001	$14.60	1
67540	LR054148	TUBE - OIL EXTRACTION	LR054148 TUBE - OIL EXTRACTION	$106.89	1
