Name: Inlet Manifold (Nitra Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMK2000001)
Rating: 4.0 (1 reviews)

Inlet Manifold (Nitra Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Inlet Manifold (Nitra Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR166341	GASKET - CAMSHAFT COVER	$32.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082511	OIL SPILL GAITER	$11.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062496	COVER - ENGINE TOP	$404.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053016	PIPE - OIL FEED	$38.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122398	BRACKET - ENGINE COVER	$8.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR179200	MANIFOLD - INLET	$408.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR179201	MANIFOLD - INLET	$415.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LBG500030	STUD - ENGINE COVER	$4.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016839	STUD - BALL	$4.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4611570	STUD - ENGINE COVER	$8.39	To Order

View All

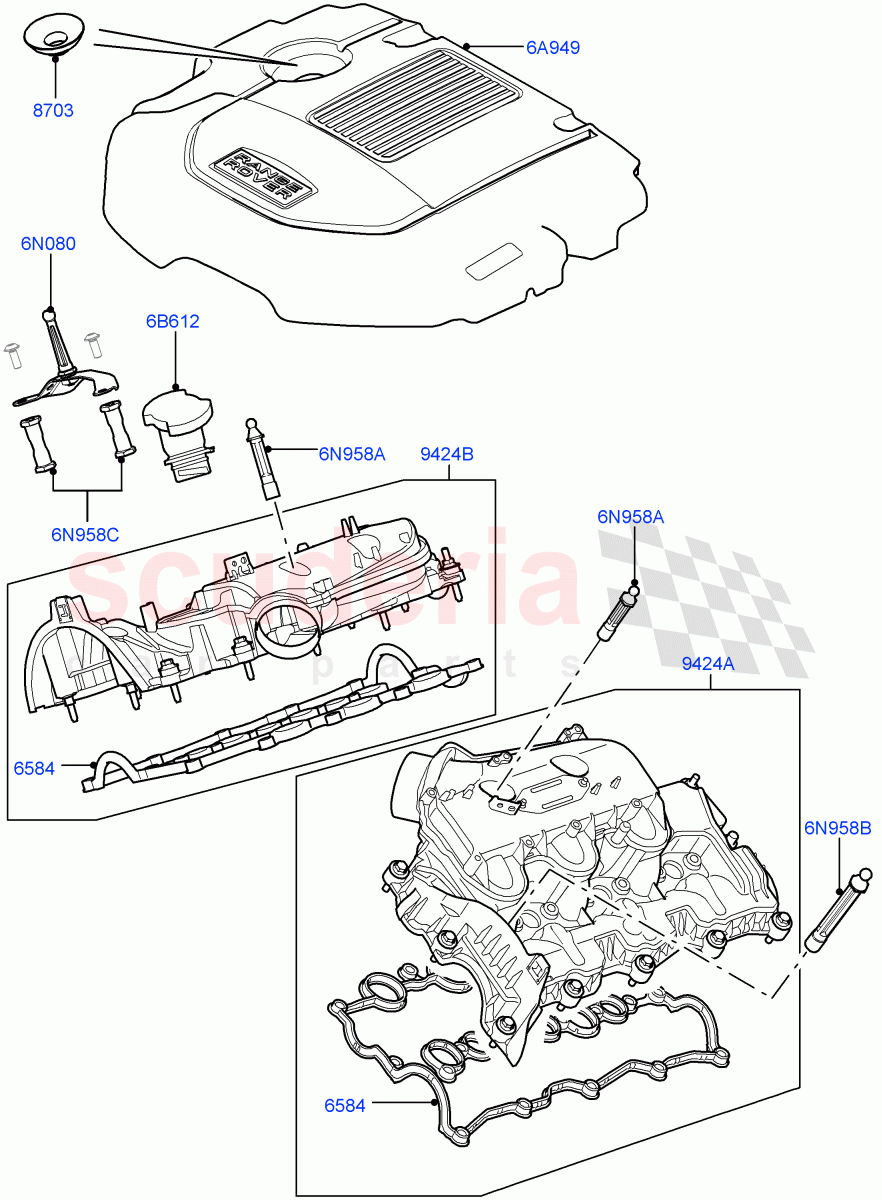

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A949	LR062496	COVER - ENGINE TOP	LR062496 COVER - ENGINE TOP Engine, Land Rover Logo / From: K2000001	$404.46	1
6B612	LR053016	PIPE - OIL FEED IN STOCK	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: K2000001 IN STOCK	$38.63	1
6N080	LR122398	BRACKET - ENGINE COVER	LR122398 BRACKET - ENGINE COVER Engine Cover / From: K2000001	$8.94	1
6N958A	LBG500030	STUD - ENGINE COVER	LBG500030 STUD - ENGINE COVER Engine Cover, Short / From: K2000001	$4.74	2
6N958B	LR016839	STUD - BALL	LR016839 STUD - BALL Engine Cover, LH Front / From: K2000001	$4.73	1
6N958C	4611570	STUD - ENGINE COVER	4611570 STUD - ENGINE COVER Engine Cover, RH Front / From: K2000001	$8.39	2
6584	LR166341	GASKET - CAMSHAFT COVER	LR166341 GASKET - CAMSHAFT COVER Camshaft Cover / From: K2000001	$32.61	2
8703	LR082511	OIL SPILL GAITER	LR082511 OIL SPILL GAITER Oil Spill / From: K2000001	$11.66	1
9424A	LR179200	MANIFOLD - INLET IN STOCK	LR179200 MANIFOLD - INLET LH / From: K2000001 IN STOCK	$408.65	1
9424B	LR179201	MANIFOLD - INLET IN STOCK	LR179201 MANIFOLD - INLET RH / From: K2000001 IN STOCK	$415.32	1
