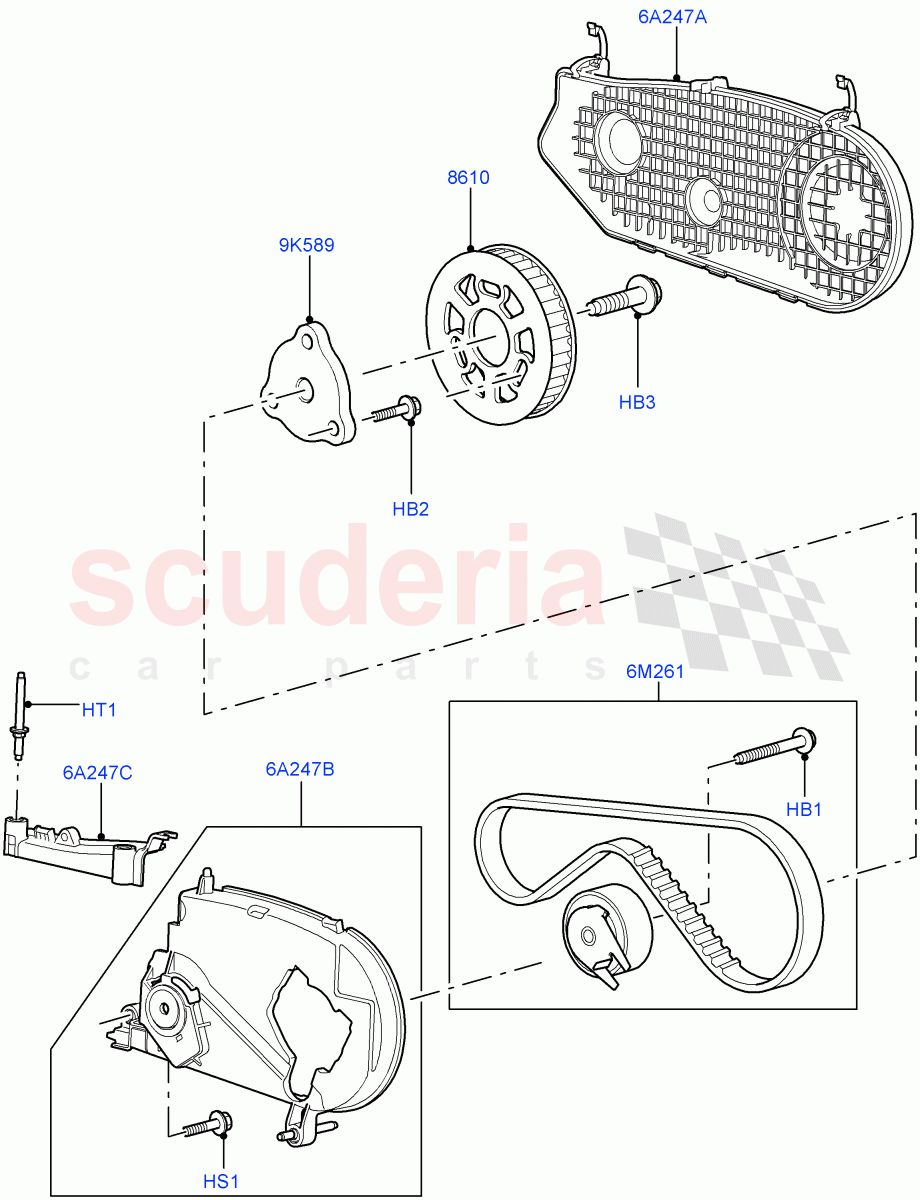

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000374	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4622661	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068165	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110747	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014211	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084437	PULLEY - AUX. DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069054	KIT - FUEL PUMP DRIVE BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013590	HUB - CAMSHAFT PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014189	COVER - TIMING BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013443	COVER - TIMING BELT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000374	BOLT	LR000374 BOLT M8 x 60MM	-	1	Enquire
HB2	4622661	SCREW	4622661 SCREW M8 X 16MM, Pulley	-	3	Enquire
HB3	LR068165	BOLT	LR068165 BOLT M12 x 1.5 x 35MM	-	1	Enquire
HS1	LR110747	SCREW	LR110747 SCREW M6 x 35MM	-	1	Enquire
HT1	LR014211	STUD	LR014211 STUD M6 X 14MM, M6 X 40MM	-	2	Enquire
6A247A	LR014189	COVER - TIMING BELT	LR014189 COVER - TIMING BELT Outer, Rear Engine Accessory Drive	-	1	Enquire
6A247B	LR013444	COVER - TIMING BELT	LR013444 COVER - TIMING BELT Inner, Rear Engine Accessory Drive / To: HA010936	-	1	Enquire
6A247B	LR104351	COVER	LR104351 COVER Inner, Rear Engine Accessory Drive / From: HA010937	-	1	Enquire
6A247C	LR013443	COVER - TIMING BELT	LR013443 COVER - TIMING BELT Inner, Rear Engine Accessory Drive	-	1	Enquire
6M261	LR069054	KIT - FUEL PUMP DRIVE BELT	LR069054 KIT - FUEL PUMP DRIVE BELT	-	1	Enquire
9K589	LR013590	HUB - CAMSHAFT PULLEY	LR013590 HUB - CAMSHAFT PULLEY Camshaft Pulley, Rear Engine Accessory Drive	-	1	Enquire
8610	LR084437	PULLEY - AUX. DRIVE	LR084437 PULLEY - AUX. DRIVE Rear Engine Accessory Drive	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Pulleys And Drive Belts (Rear, Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]
