Name: Accelerator/Injection Pump Controls (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Accelerator/Injection Pump Controls (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Accelerator/Injection Pump Controls (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

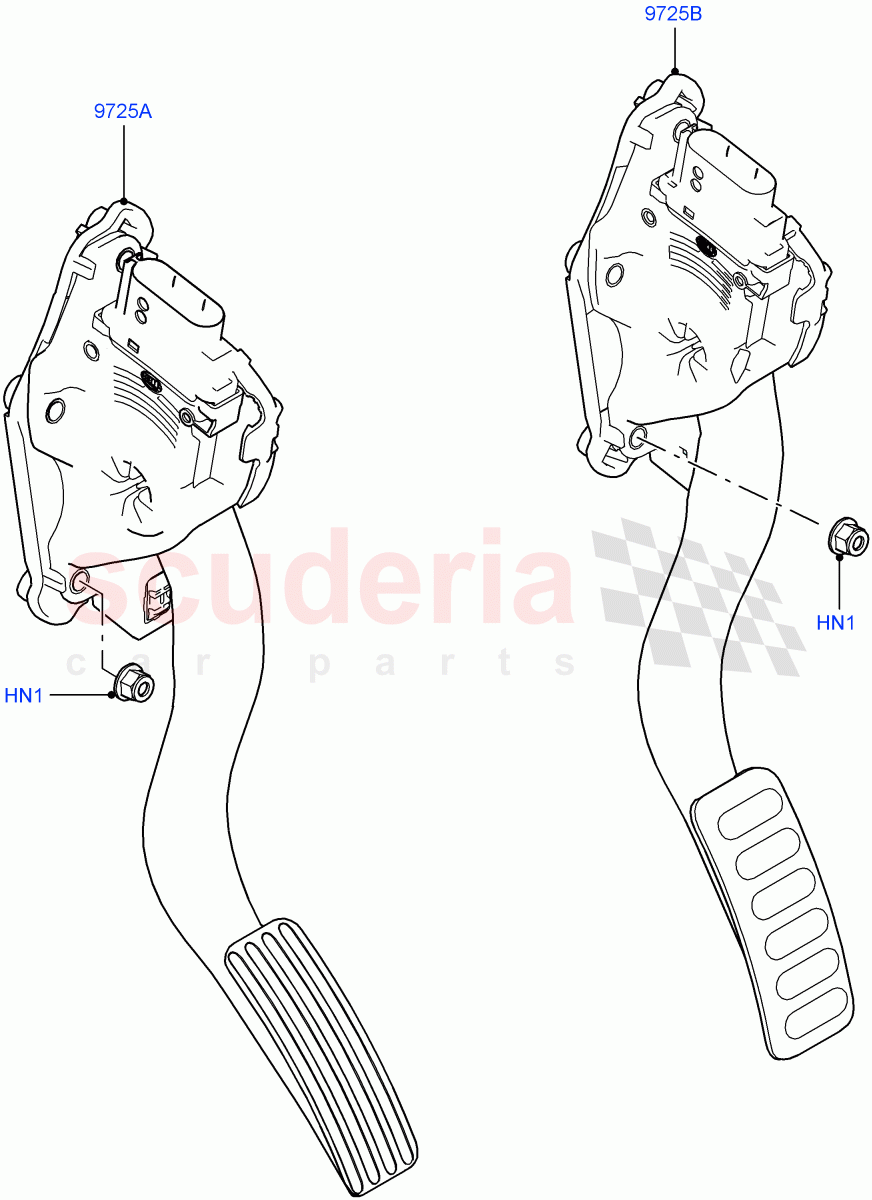

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062129	PEDAL AND BRACKET - ACCELERATOR	$294.74	To Order
	LR062130	PEDAL AND BRACKET - ACCELERATOR	$305.05	To Order
	LR115114	PEDAL AND BRACKET - ACCELERATOR	$300.55	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR072171	PEDAL AND BRACKET - ACCELERATOR	$300.52	To Order
	LR072172	PEDAL AND BRACKET - ACCELERATOR	$303.00	To Order
	LR104018	PEDAL AND BRACKET - ACCELERATOR	$273.67	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$0.69	2
9725A	LR062129	PEDAL AND BRACKET - ACCELERATOR	LR062129 PEDAL AND BRACKET - ACCELERATOR LHD, Standard Foot Pedal Pad Design / To: JA059352	$294.74	1
9725A	LR062130	PEDAL AND BRACKET - ACCELERATOR	LR062130 PEDAL AND BRACKET - ACCELERATOR RHD, Standard Foot Pedal Pad Design / To: JA059352	$305.05	1
9725A	LR115114	PEDAL AND BRACKET - ACCELERATOR	LR115114 PEDAL AND BRACKET - ACCELERATOR RHD, Standard Foot Pedal Pad Design / From: JA059353	$300.55	1
9725A	LR115113	PEDAL AND BRACKET - ACCELERATOR	LR115113 PEDAL AND BRACKET - ACCELERATOR LHD, Standard Foot Pedal Pad Design / From: JA059353	$305.05	1
9725B	LR072171	PEDAL AND BRACKET - ACCELERATOR	LR072171 PEDAL AND BRACKET - ACCELERATOR LHD, Unique Met Finish Foot Pedals Pads / To: HA999999	$300.52	1
9725B	LR072172	PEDAL AND BRACKET - ACCELERATOR	LR072172 PEDAL AND BRACKET - ACCELERATOR RHD, Unique Met Finish Foot Pedals Pads / To: HA999999	$303.00	1
9725B	LR104018	PEDAL AND BRACKET - ACCELERATOR	LR104018 PEDAL AND BRACKET - ACCELERATOR LHD, Unique Met Finish Foot Pedals Pads / From: JA000001 / To: JA058085	$273.67	1
9725B	LR104020	PEDAL AND BRACKET - ACCELERATOR	LR104020 PEDAL AND BRACKET - ACCELERATOR RHD, Unique Met Finish Foot Pedals Pads / From: JA000001 / To: JA058085	$300.62	1
9725B	LR115124	PEDAL AND BRACKET - ACCELERATOR	LR115124 PEDAL AND BRACKET - ACCELERATOR LHD, Unique Met Finish Foot Pedals Pads / From: JA058086	$284.10	1
9725B	LR115126	PEDAL AND BRACKET - ACCELERATOR	LR115126 PEDAL AND BRACKET - ACCELERATOR RHD, Unique Met Finish Foot Pedals Pads / From: JA058086	$249.40	1
