Rear Brake Discs And Calipers (Solihull Plant Build) (Front Disc And Caliper Size 19) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Rear Brake Discs And Calipers (Solihull Plant Build) (Front Disc And Caliper Size 19) ((V)...

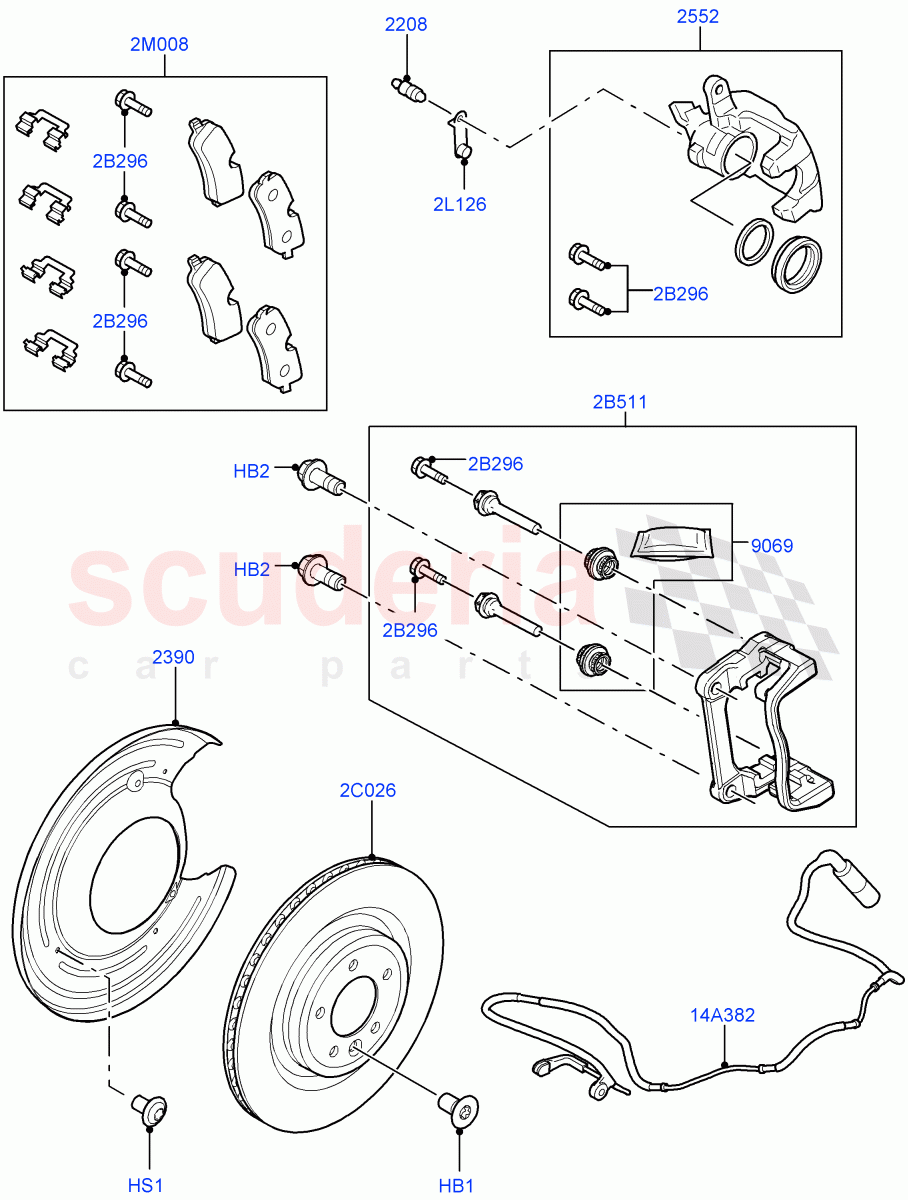

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYG000013	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082225	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR082553	SHIELD - BRAKE DISC SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102243	CALIPER - BRAKE	Enquire	To Order
	LR102246	CALIPER - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031319	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084121	BRACKET - BRAKE CALIPER	Enquire	To Order
	LR084116	BRACKET - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161898	DISC - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1913	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162042	KIT - BRAKE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084071	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR002080	BOLT	LR002080 BOLT M10 X 20MM, Torx / From: JA000001	-	2	Enquire
HB2	SYG000013	BOLT	SYG000013 BOLT External Torx Head, M12 X 35MM / From: JA000001	-	4	Enquire
HS1	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Torx / From: JA000001	-	6	Enquire
2B296	LR031319	BOLT	LR031319 BOLT Pin - Guide / From: JA000001	-	4	Enquire
2B511	LR084121	BRACKET - BRAKE CALIPER	LR084121 BRACKET - BRAKE CALIPER LH / From: JA000001	-	1	Enquire
2B511	LR084116	BRACKET - BRAKE CALIPER	LR084116 BRACKET - BRAKE CALIPER RH / From: JA000001	-	1	Enquire
2C026	LR161898	DISC - BRAKE	LR161898 DISC - BRAKE From: JA000001	-	2	Enquire
2L126	STC1913	CAP - BLEED SCREW	STC1913 CAP - BLEED SCREW From: JA000001	-	2	Enquire
2M008	LR162042	KIT - BRAKE LINING	LR162042 KIT - BRAKE LINING Axle Set, With Clips / From: JA000001	-	1	Enquire
14A382	LR084071	WIRE - BRAKE PAD WEAR WARNING	LR084071 WIRE - BRAKE PAD WEAR WARNING From: JA000001	-	1	Enquire
2208	LR015523	SCREW - BLEED	LR015523 SCREW - BLEED From: JA000001	-	2	Enquire
2390	LR082225	SHIELD - BRAKE DISC SPLASH	LR082225 SHIELD - BRAKE DISC SPLASH RH / From: JA000001	-	1	Enquire
2390	LR082553	SHIELD - BRAKE DISC SPLASH	LR082553 SHIELD - BRAKE DISC SPLASH LH / From: JA000001	-	1	Enquire
2552	LR102243	CALIPER - BRAKE	LR102243 CALIPER - BRAKE RH / From: JA000001	-	1	Enquire
2552	LR102246	CALIPER - BRAKE	LR102246 CALIPER - BRAKE LH / From: JA000001	-	1	Enquire
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot / From: JA000001	-	2	Enquire
