Engine Bay Harness (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Engine Bay Harness (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP501130 BOLT $1.31 To Order
Photo Part No Description Price (each) Stock
DYC500160 CLIP - SINGLE $1.62 To Order
Photo Part No Description Price (each) Stock
LR025158 NUT - HEX. $0.27 To Order
Photo Part No Description Price (each) Stock
LR087050 ENGINE BAY HARNESS $3,187.30 To Order
LR100419 ENGINE BAY HARNESS $4,583.61 To Order
LR115580 ENGINE BAY HARNESS $2,465.88 To Order
Photo Part No Description Price (each) Stock
LR050937 BOX - FUSE $68.05 To Order
Photo Part No Description Price (each) Stock
LR086930 BRACKET - FUSE BOX $41.30 To Order
Photo Part No Description Price (each) Stock
LR086804 WIRING - ACTIVE VANES $53.99 To Order
View All

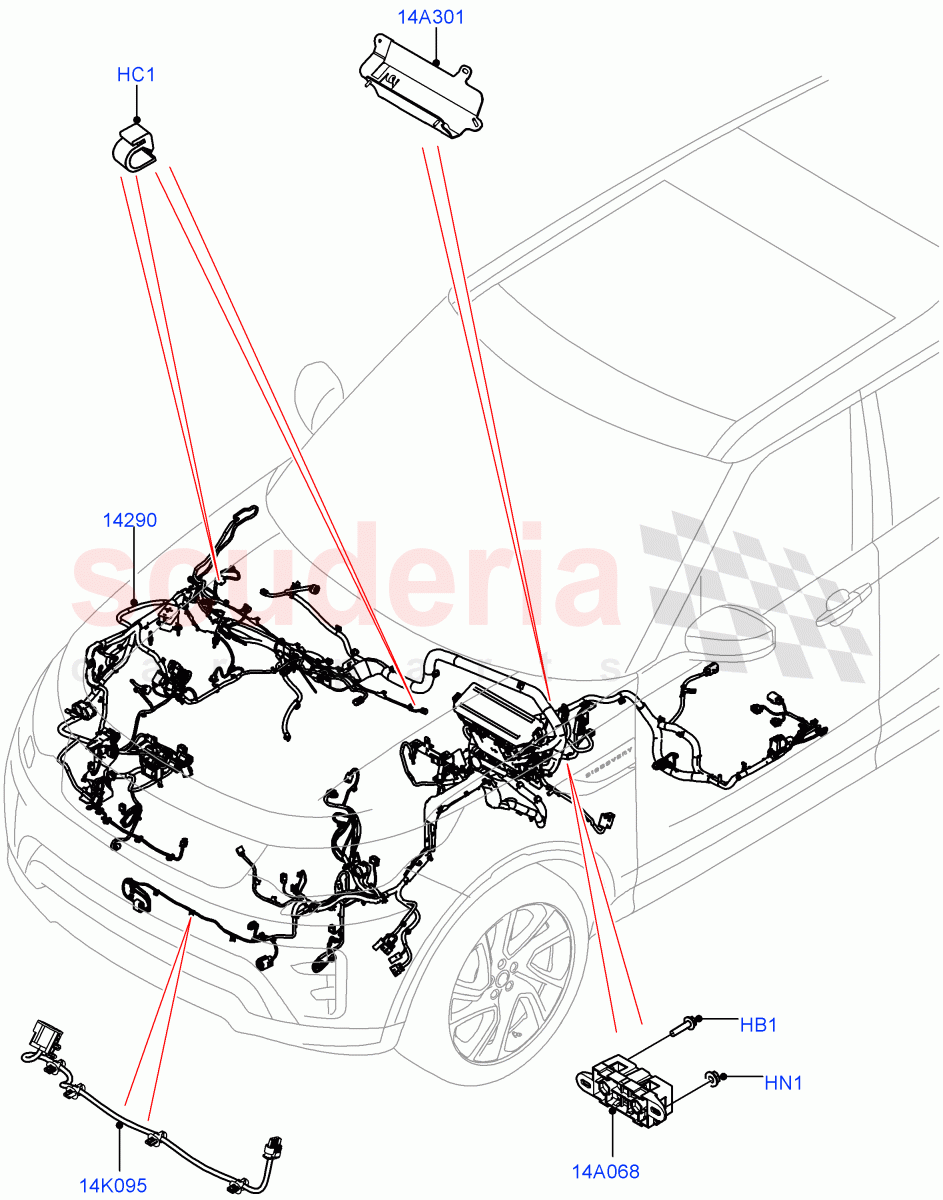

Engine Bay Harness (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP501130
BOLT
M6 x 12MM 		$1.31 1
HC1 DYC500160
CLIP - SINGLE
Connector, Heated Washer Jet 		$1.62 2
HN1 LR025158
NUT - HEX.
M5 		$0.27 1
14A068 LR050937
BOX - FUSE 		$68.05 1
14A301 LR086930
BRACKET - FUSE BOX
LHD 		$41.30 1
14K095 LR086804
WIRING - ACTIVE VANES 		$53.99 1
14290 LR087050
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / To: HA999999 		$3,187.30 1
14290 LR100419
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / From: JA000001 / To: JA999999 		$4,583.61 1
14290 LR115580
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / From: KA000001 / To: KA999999 		$2,465.88 1
