Rear Knuckle And Hub (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Rear Knuckle And Hub (Solihull Plant Build) ((V) FROMHA000001)

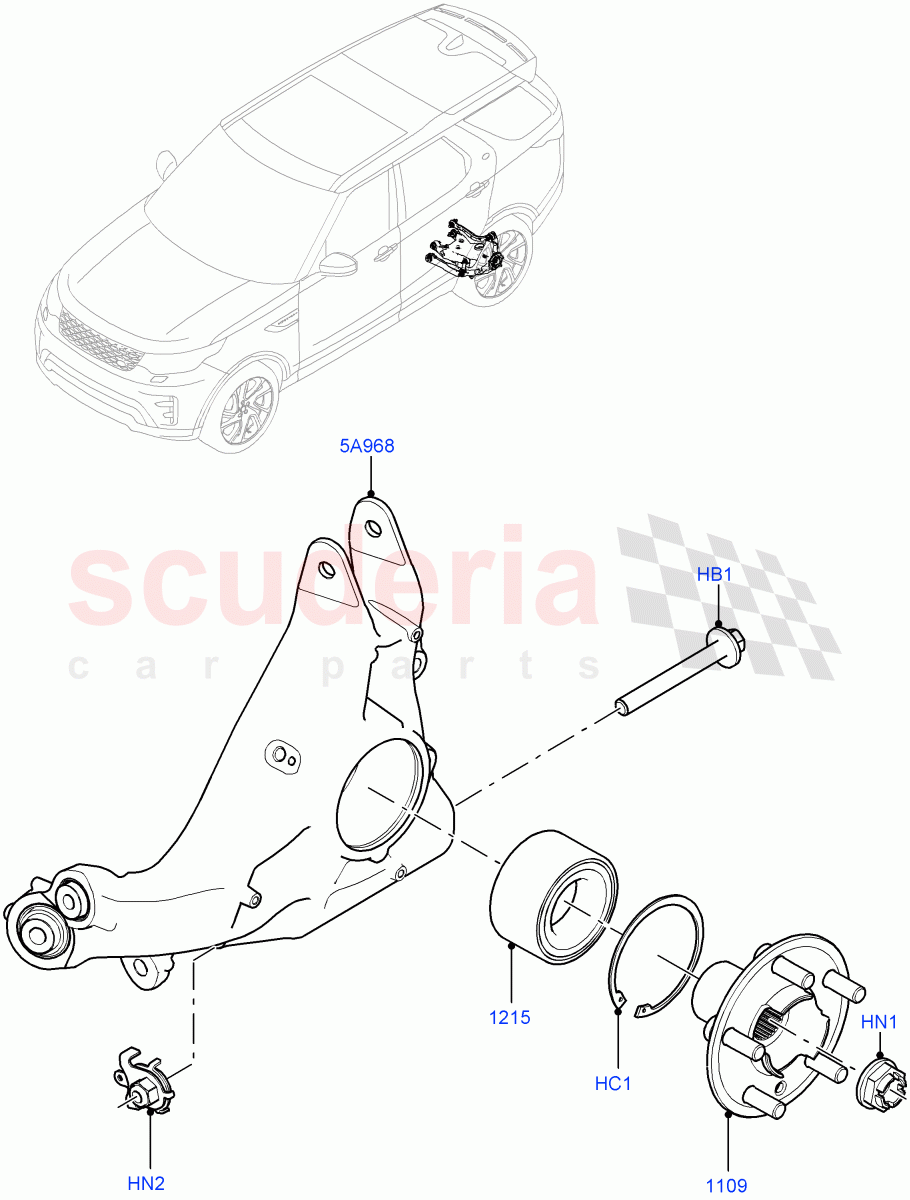

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038196	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038382	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024151	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043586	NUT - FLAG TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081538	HUB - WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077894	BEARING - WHEEL HUB	Enquire	To Order
	LR133541	BEARING - WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094541	KNUCKLE - REAR WHEEL	Enquire	To Order
	LR094539	KNUCKLE - REAR WHEEL	Enquire	To Order
	LR098782	KNUCKLE - REAR WHEEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR038196	BOLT	LR038196 BOLT Hexagonal Head, M14 X 125	-	2	Enquire
HC1	LR038382	CIRCLIP	LR038382 CIRCLIP 95MM, Retaining Ring	-	2	Enquire
HN1	LR024151	NUT AND WASHER - HEX.	LR024151 NUT AND WASHER - HEX. M24X2.0	-	2	Enquire
HN2	LR043586	NUT - FLAG TYPE	LR043586 NUT - FLAG TYPE Flag Type, M14	-	2	Enquire
5A968	LR094541	KNUCKLE - REAR WHEEL	LR094541 KNUCKLE - REAR WHEEL With Standard Duty Coil Spring Susp / LH / To: HA999999	-	1	Enquire
5A968	LR094539	KNUCKLE - REAR WHEEL	LR094539 KNUCKLE - REAR WHEEL With Standard Duty Coil Spring Susp / RH / To: HA999999	-	1	Enquire
5A968	LR098782	KNUCKLE - REAR WHEEL	LR098782 KNUCKLE - REAR WHEEL With Standard Duty Coil Spring Susp / LH / From: JA000001	-	1	Enquire
5A968	LR098784	KNUCKLE - REAR WHEEL	LR098784 KNUCKLE - REAR WHEEL With Four Corner Air Suspension / LH / From: JA000001	-	1	Enquire
5A968	LR098781	KNUCKLE - REAR WHEEL	LR098781 KNUCKLE - REAR WHEEL With Standard Duty Coil Spring Susp / RH / From: JA000001	-	1	Enquire
5A968	LR098783	KNUCKLE - REAR WHEEL	LR098783 KNUCKLE - REAR WHEEL With Four Corner Air Suspension / RH / From: JA000001	-	1	Enquire
5A968	LR094540	KNUCKLE - REAR WHEEL	LR094540 KNUCKLE - REAR WHEEL With Four Corner Air Suspension / RH / To: HA999999	-	1	Enquire
5A968	LR094542	KNUCKLE - REAR WHEEL	LR094542 KNUCKLE - REAR WHEEL With Four Corner Air Suspension / LH / To: HA999999	-	1	Enquire
1109	LR081538	HUB - WHEEL	LR081538 HUB - WHEEL RH/LH	-	2	Enquire
1215	LR077894	BEARING - WHEEL HUB	LR077894 BEARING - WHEEL HUB RH/LH / To: KA096500	-	2	Enquire
1215	LR133541	BEARING - WHEEL HUB	LR133541 BEARING - WHEEL HUB RH/LH / From: KA096501	-	2	Enquire
