Name: Turbocharger (Solihull Plant Build, Lubrication And Cooling) (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Turbocharger (Solihull Plant Build, Lubrication And Cooling) (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Turbocharger (Solihull Plant Build, Lubrication And Cooling) (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L...

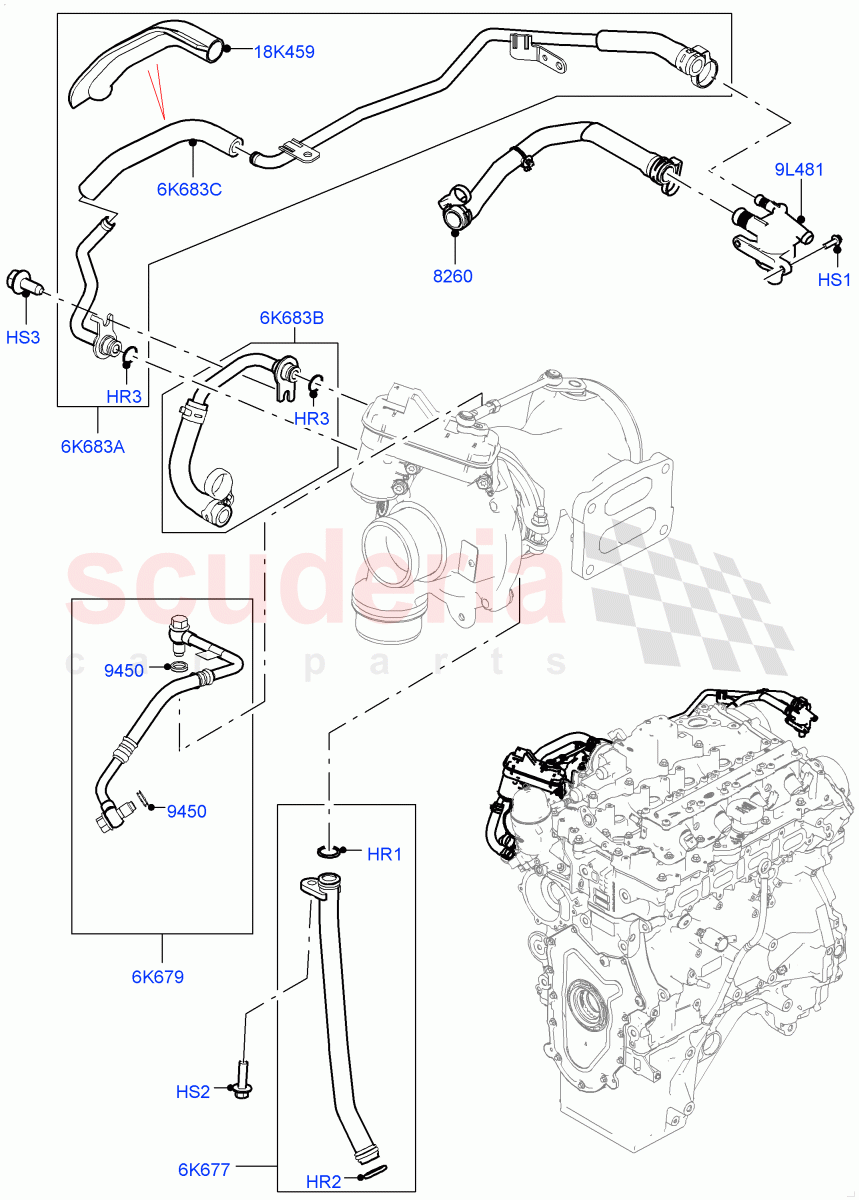

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR136779	RING - SEALING	$4.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR123816	O-RING	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122683	SCREW	$1.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR108956	HOSE	$53.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100575	HOSE - OIL RETURN	$30.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091576	PIPE - OIL FEED	$43.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093489	SEPARATOR - COOLANT DEGAS	$89.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127419	SLEEVE - INSULATING	$6.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092089	CONNECTION - WATER	$103.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097977	CONNECTION - WATER	$43.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127418	CONNECTION - WATER	$7.25	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR136779	RING - SEALING IN STOCK	LR136779 RING - SEALING 13.8 x 2.5, Drain, Upper / From: JA000001 IN STOCK	$4.63	1
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Drain, Lower / From: JA000001 IN STOCK	$3.81	1
HR3	LR123816	O-RING	LR123816 O-RING Cooling For Turbocharger / From: JA000001	$2.98	2
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: JA000001 IN STOCK	$1.54	2
HS2	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: JA000001	$2.38	1
HS3	LR122683	SCREW IN STOCK	LR122683 SCREW M6 X 16MM / From: JA000001 IN STOCK	$1.81	1
6K677	LR100575	HOSE - OIL RETURN	LR100575 HOSE - OIL RETURN 2.0L I4 High DOHC AJ200 Petrol / From: JA000001	$30.39	1
6K679	LR091576	PIPE - OIL FEED	LR091576 PIPE - OIL FEED From: JA000001	$43.96	1
6K683A	LR092089	CONNECTION - WATER	LR092089 CONNECTION - WATER Cooling For Turbocharger, Feed, Includes Heat Shield / From: JA000001	$103.43	1
6K683B	LR097977	CONNECTION - WATER	LR097977 CONNECTION - WATER Cooling For Turbocharger, Return / From: JA000001	$43.98	1
6K683C	LR127418	CONNECTION - WATER	LR127418 CONNECTION - WATER Cooling For Turbocharger, Feed / From: JA000001	$7.25	1
9L481	LR093489	SEPARATOR - COOLANT DEGAS	LR093489 SEPARATOR - COOLANT DEGAS From: JA000001	$89.83	1
18K459	LR127419	SLEEVE - INSULATING	LR127419 SLEEVE - INSULATING Heatshield / From: JA000001	$6.11	1
8260	LR108956	HOSE	LR108956 HOSE Tube Water By-Pass / From: JA000001	$53.70	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed / From: JA000001 IN STOCK	$4.48	4
