Name: Rear Exhaust System (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)
Rating: 5.0 (1 reviews)

Rear Exhaust System (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Rear Exhaust System (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

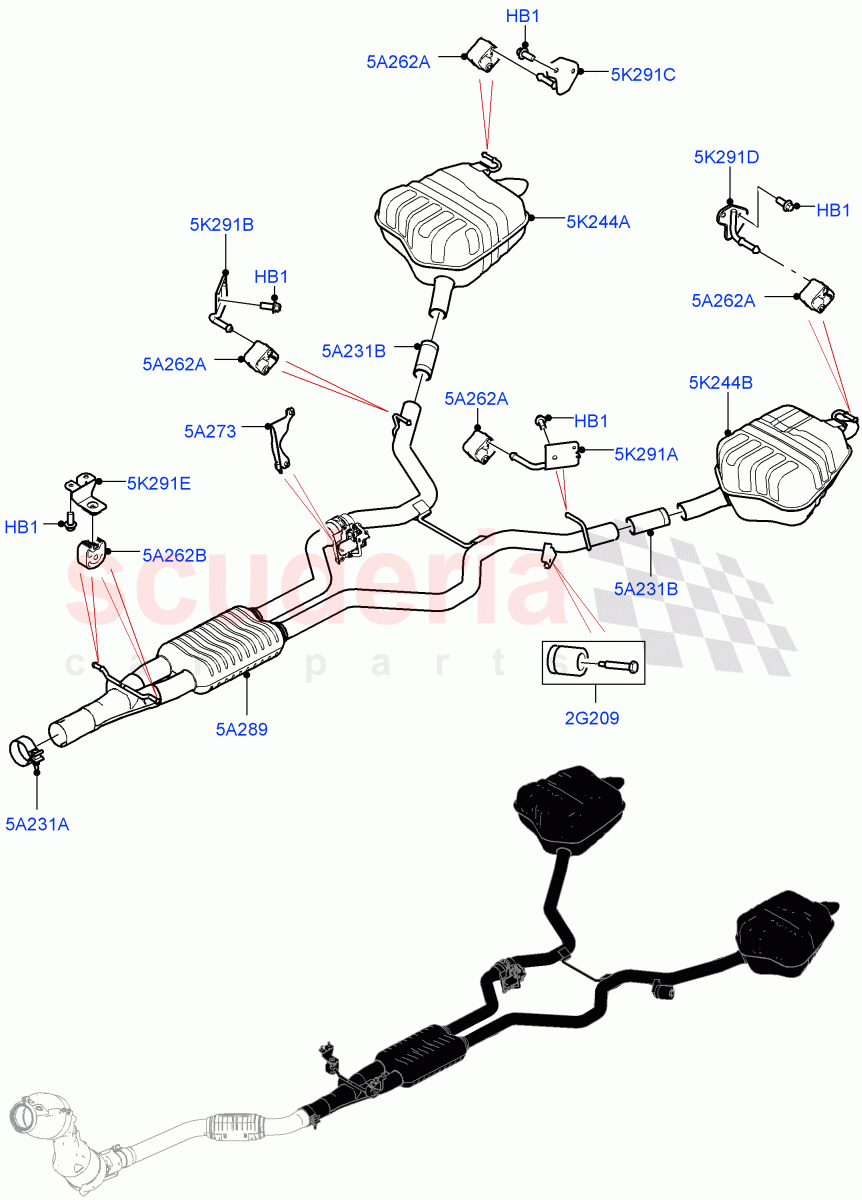

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR112283	DAMPER - DAMPING MASS	$83.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113591	HEAT SHIELD - EXHAUST DAMPER	$17.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105220	RESONATOR - EXHAUST SYSTEM	$1,200.41	To Order
	LR120478	RESONATOR - EXHAUST SYSTEM	$1,165.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036438	EXHAUST	$35.31	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	$77.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093418	INSULATOR - RUBBER	$35.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105239	MUFFLER - REAR	$796.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105240	MUFFLER - REAR	$796.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088302	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082704	BRACKET - REAR MUFFLER	$47.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082707	BRACKET - REAR MUFFLER	$47.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110248	BRACKET - REAR MUFFLER	$45.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: JA000001 IN STOCK	$2.23	10
2G209	LR112283	DAMPER - DAMPING MASS	LR112283 DAMPER - DAMPING MASS From: JA000001	$83.04	1
5A231A	LR036438	EXHAUST	LR036438 EXHAUST 60MM, Front / From: JA000001	$35.31	1
5A231B	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, For Rear Muffler / From: JA000001	$77.02	2
5A262A	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER Rear And Center Locations / From: JA000001	$23.23	4
5A262B	LR093418	INSULATOR - RUBBER	LR093418 INSULATOR - RUBBER Front, RH And LH / From: JA000001	$35.00	2
5A273	LR113591	HEAT SHIELD - EXHAUST DAMPER	LR113591 HEAT SHIELD - EXHAUST DAMPER From: JA000001	$17.10	1
5A289	LR105220	RESONATOR - EXHAUST SYSTEM	LR105220 RESONATOR - EXHAUST SYSTEM From: JA000001 / To: KA082965	$1,200.41	1
5A289	LR120478	RESONATOR - EXHAUST SYSTEM	LR120478 RESONATOR - EXHAUST SYSTEM From: KA082966	$1,165.18	1
5K244A	LR105239	MUFFLER - REAR	LR105239 MUFFLER - REAR RH / From: JA000001	$796.99	1
5K244B	LR105240	MUFFLER - REAR	LR105240 MUFFLER - REAR LH / From: JA000001	$796.99	1
5K291A	LR088302	BRACKET - EXHAUST	LR088302 BRACKET - EXHAUST LH Rear, RESONATOR / From: JA000001	$29.38	1
5K291B	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST RESONATOR, RH Rear / From: JA000001	$29.38	1
5K291C	LR082704	BRACKET - REAR MUFFLER	LR082704 BRACKET - REAR MUFFLER For Rear Muffler, RH Rear / From: JA000001	$47.31	1
5K291D	LR082707	BRACKET - REAR MUFFLER	LR082707 BRACKET - REAR MUFFLER For Rear Muffler, LH Rear / From: JA000001	$47.31	1
5K291E	LR110248	BRACKET - REAR MUFFLER	LR110248 BRACKET - REAR MUFFLER RESONATOR, RH And LH / From: JA000001	$45.60	2
