Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 High Dohc Aj200 Petrol, Lhd) ((V)...

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, LHD) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR110501 PUMP - OIL & VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR081604 GROMMET - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR100577 HOSE - VACUUM CONTROL HARNESS Enquire To Order
LR112246 HOSE - VACUUM CONTROL HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
LR081631 SENSOR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR138047 BRACKET - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR099160 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR073665 CONNECTOR - VACUUM TUBE Enquire To Order
View All

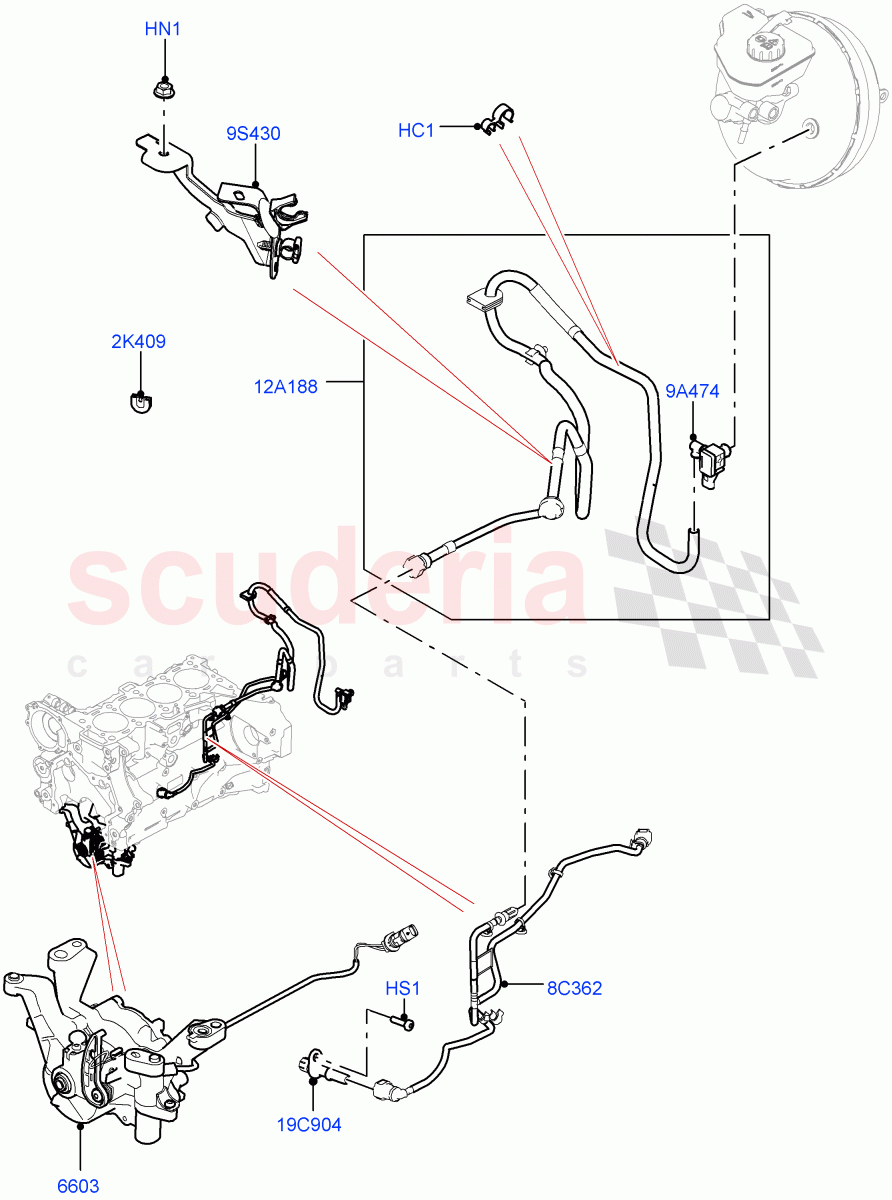

Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, LHD) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR049402
CLIP - DOUBLE
Double / From: JA000001 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Bracket, Hexagonal Head, M6 / From: JA000001 		- 1 Enquire
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: JA000001 		- 1 Enquire
2K409 LR081604
GROMMET - BRAKE PIPE
From: JA000001 		- 1 Enquire
8C362 LR100577
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: JA000001 / To: JA999999 		- 1 Enquire
8C362 LR112246
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: KA000001 		- 1 Enquire
9A474 LR081631
SENSOR - VACUUM
From: JA000001 		- 1 Enquire
9S430 LR138047
BRACKET - HOSE
From: JA000001 		- 1 Enquire
12A188 LR099160
HOSE - VACUUM
To Brake Booster / From: JA000001 		- 1 Enquire
19C904 LR073665
CONNECTOR - VACUUM TUBE
Cylinder Block, Pump - Vacuum / From: JA000001 		- 1 Enquire
6603 LR110501
PUMP - OIL & VACUUM
From: JA000001 		- 1 Enquire
