Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR116475 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100083 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR108580 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR095815 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100081 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR100137 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100138 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR081658 HOSE - RADIATOR TO ENG. VENT ELBOW Enquire To Order
Photo Part No Description Price (each) Stock
LR100552 HOSE - COOLANT BLEED Enquire To Order
Photo Part No Description Price (each) Stock
LR100553 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100129 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100554 HOSE - COOLANT BLEED Enquire To Order
Photo Part No Description Price (each) Stock
LR100136 HOSE - WATER Enquire To Order
View All

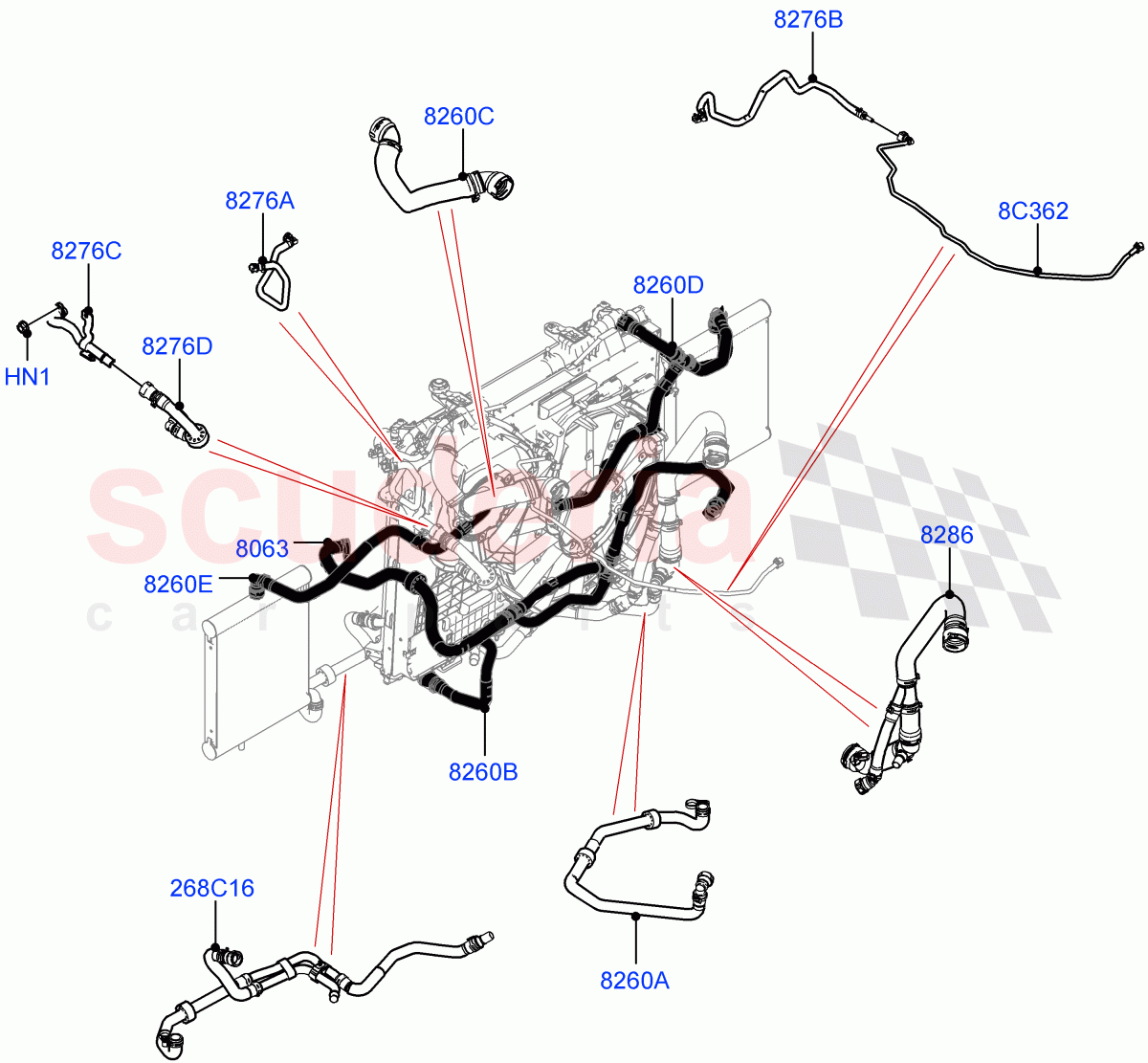

Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMKA000001, (V) TOLA999999) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: KA000001 		- 1 Enquire
8C362 LR100554
HOSE - COOLANT BLEED
From Engine To Expansion Tank / From: KA000001 		- 1 Enquire
268C16 LR100136
HOSE - WATER
LH, Auxiliary Radiator / From: KA000001 		- 1 Enquire
8063 LR116475
HOSE - WATER
From Engine To Expansion Tank / From: KA000001 		- 1 Enquire
8260A LR108580
HOSE - WATER
RH, Auxiliary Radiator, Outlet / From: KA000001 		- 1 Enquire
8260B LR095815
HOSE - HEATER WATER
From Transmission Oil Cooler To Radiator / From: KA000001 		- 1 Enquire
8260C LR100081
HOSE - RADIATOR
Radiator, Top / From: KA000001 		- 1 Enquire
8260D LR100137
HOSE - WATER
RH, Auxiliary Radiator, Feed / From: KA000001 		- 1 Enquire
8260E LR100138
HOSE - WATER
LH, Auxiliary Radiator, Feed / From: KA000001 		- 1 Enquire
8276A LR081658
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: KA000001 		- 1 Enquire
8276B LR100552
HOSE - COOLANT BLEED
To Expansion Tank / From: KA000001 		- 1 Enquire
8276C LR100553
HOSE - WATER
Water Charge Air Cooler / From: KA000001 		- 1 Enquire
8276D LR100129
HOSE - WATER
Intercooler Inlet / From: KA000001 		- 1 Enquire
8286 LR100083
HOSE - RADIATOR
Lower, Radiator / From: KA000001 		- 1 Enquire
