Inlet Manifold (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) ((V)...

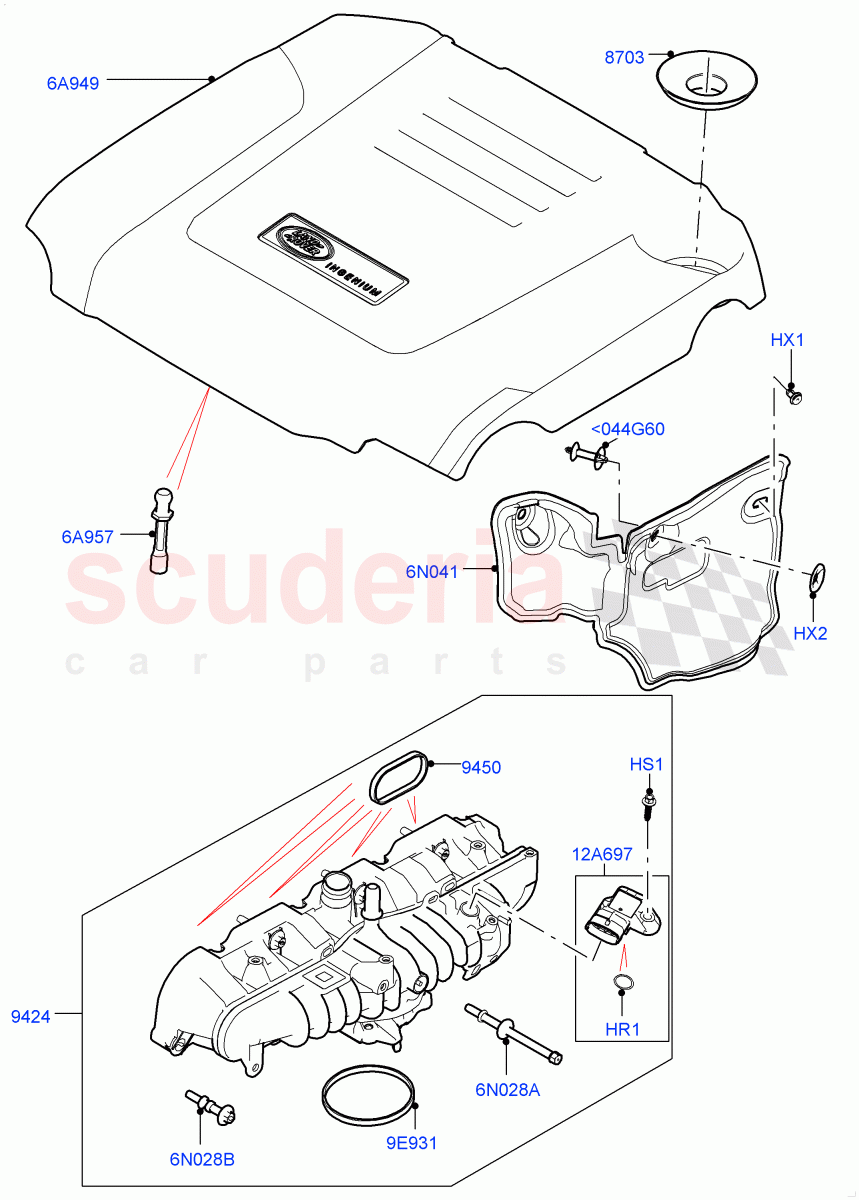

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132382	WASHER - DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106371	INLET MANIFOLD WITH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100469	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082528	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100360	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091773	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106169	PIN - TRIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<044G60	LR106169	PIN - TRIM	LR106169 PIN - TRIM Insulator, Pin 6.5 X 0.8 - 2 + 5 X 0.8 / From: JA000001	-	1	Enquire
HR1	LR095783	O-RING	LR095783 O-RING 7.5MM, MAP Sensor / From: JA000001	-	1	Enquire
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor / From: JA000001	-	1	Enquire
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: JA000001	-	2	Enquire
HX2	LR132382	WASHER - DRAIN PLUG	LR132382 WASHER - DRAIN PLUG 25 x 7, Push On / From: JA000001	-	1	Enquire
6A949	LR100469	COVER - ENGINE TOP	LR100469 COVER - ENGINE TOP Engine / From: JA000001	-	1	Enquire
6A957	LR082528	STUD - BALL	LR082528 STUD - BALL Ball Stud, Engine Cover / From: JA000001	-	3	Enquire
6N028A	LR091773	BOLT - SPECIAL	LR091773 BOLT - SPECIAL M6 x 97MM, Manifold To Cylinder Head, Special Bolt / From: JA000001	-	1	Enquire
6N028B	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: JA000001	-	6	Enquire
6N041	LR100360	INSULATOR - CYLINDER HEAD	LR100360 INSULATOR - CYLINDER HEAD LH Side / From: JA000001	-	1	Enquire
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake / From: JA000001	-	1	Enquire
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE Pressure / From: JA000001	-	1	Enquire
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: JA000001	-	1	Enquire
9424	LR106371	INLET MANIFOLD WITH INTERCOOLER	LR106371 INLET MANIFOLD WITH INTERCOOLER From: JA000001	-	1	Enquire
9450	LR091766	GASKET - INTAKE MANIFOLD	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold / From: JA000001	-	4	Enquire
