Fuel Pump And Sender Unit (Nitra Plant Build) (2.0L I4 Dsl High Dohc Aj200) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Fuel Pump And Sender Unit (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR066438 SCREW $2.94 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.05 ARRIVING SOON
LR117476 GASKET $10.05 ARRIVING SOON
Photo Part No Description Price (each) Stock
LR125195 SENDER - FUEL TANK $136.97 To Order
Photo Part No Description Price (each) Stock
LR082729 RING - RETAINING $25.88 To Order
LR117478 RING - RETAINING $32.31 To Order
Photo Part No Description Price (each) Stock
LR172880 CONTROL - FUEL PUMP DRIVE $222.55 To Order
Photo Part No Description Price (each) Stock
LR082752 PUMP - FUEL $611.22 To Order
LR113560 SENDER AND PUMP $605.30 To Order
View All

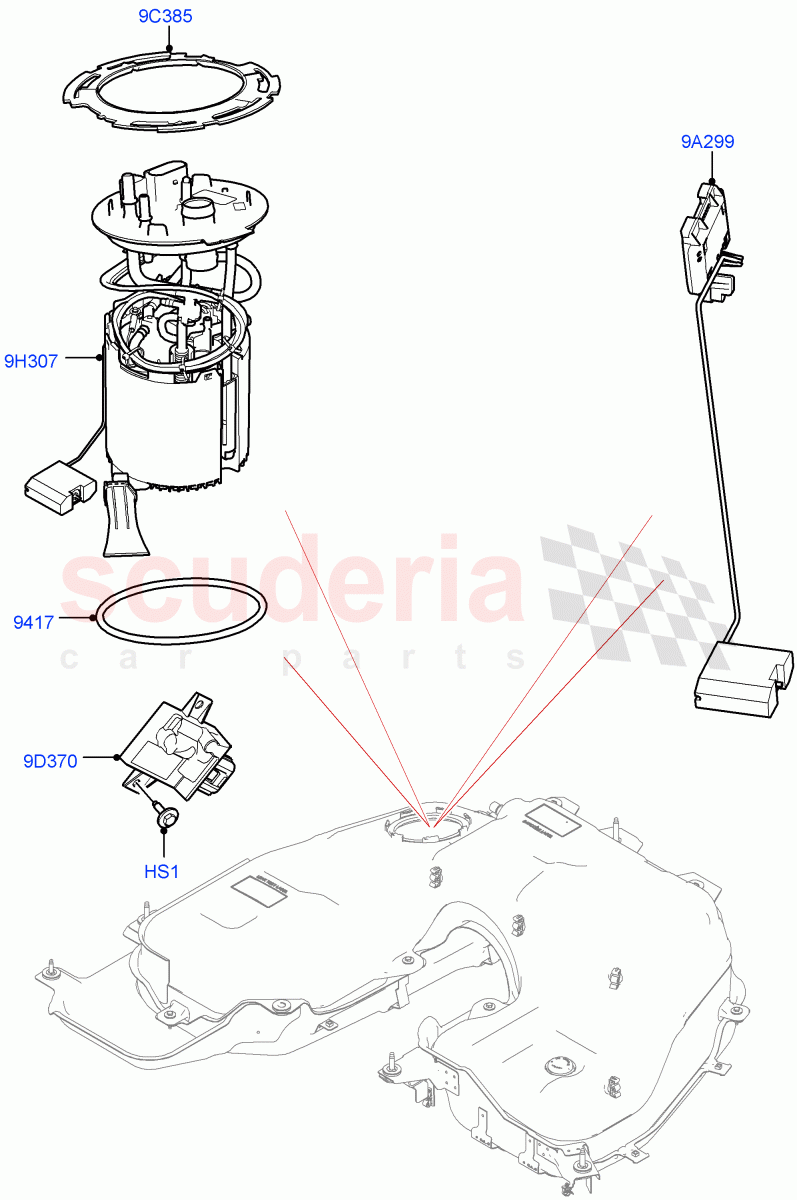

Fuel Pump And Sender Unit (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR066438
SCREW
Hexagonal Head, M6 X 20MM / From: K2000001 		$2.94 2
9A299 LR125195
SENDER - FUEL TANK
From: K2000001 		$136.97 1
9C385 LR082729
RING - RETAINING
From: K2000001 / To: K2404828 		$25.88 1
9C385 LR117478
RING - RETAINING
From: K2404829 		$32.31 1
9D370 LR172880
CONTROL - FUEL PUMP DRIVE
From: K2000001 / To: L2999999 		$222.55 1
9H307 LR082752
PUMP - FUEL
Fuel Tank-Diesel / From: K2000001 		$611.22 1
9H307 LR113560
SENDER AND PUMP
Fuel Tank-Diesel With Filters / From: K2000001 		$605.30 1
9417 LR117476
GASKET
O-Ring / From: K2000001 / To: K2404828
ARRIVING SOON 		$10.05 1
9417 LR117476
GASKET
O-Ring / From: K2404829
ARRIVING SOON 		$10.05 1
