Rear Seat Base (Changsu (China), With 60/40 Split - Folding Rr Seat) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Rear Seat Base (Changsu (China), With 60/40 Split - Folding Rr Seat) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB108166 BOLT - HEX.HEAD Enquire To Order
LR079241 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR067429 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR059302 MOUNTING - SEAT BACK Enquire To Order
LR079650 MOUNTING - SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR068841 COVER - HINGE Enquire To Order
Photo Part No Description Price (each) Stock
LR003839 GUIDE - SEAT LATCH Enquire To Order
Photo Part No Description Price (each) Stock
LR000717 PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR068935 BUSHING - REAR SEAT MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR003432 FRAME AND SPRING - RR SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR003433 FRAME AND SPRING - RR SEAT CUSHION Enquire To Order
View All

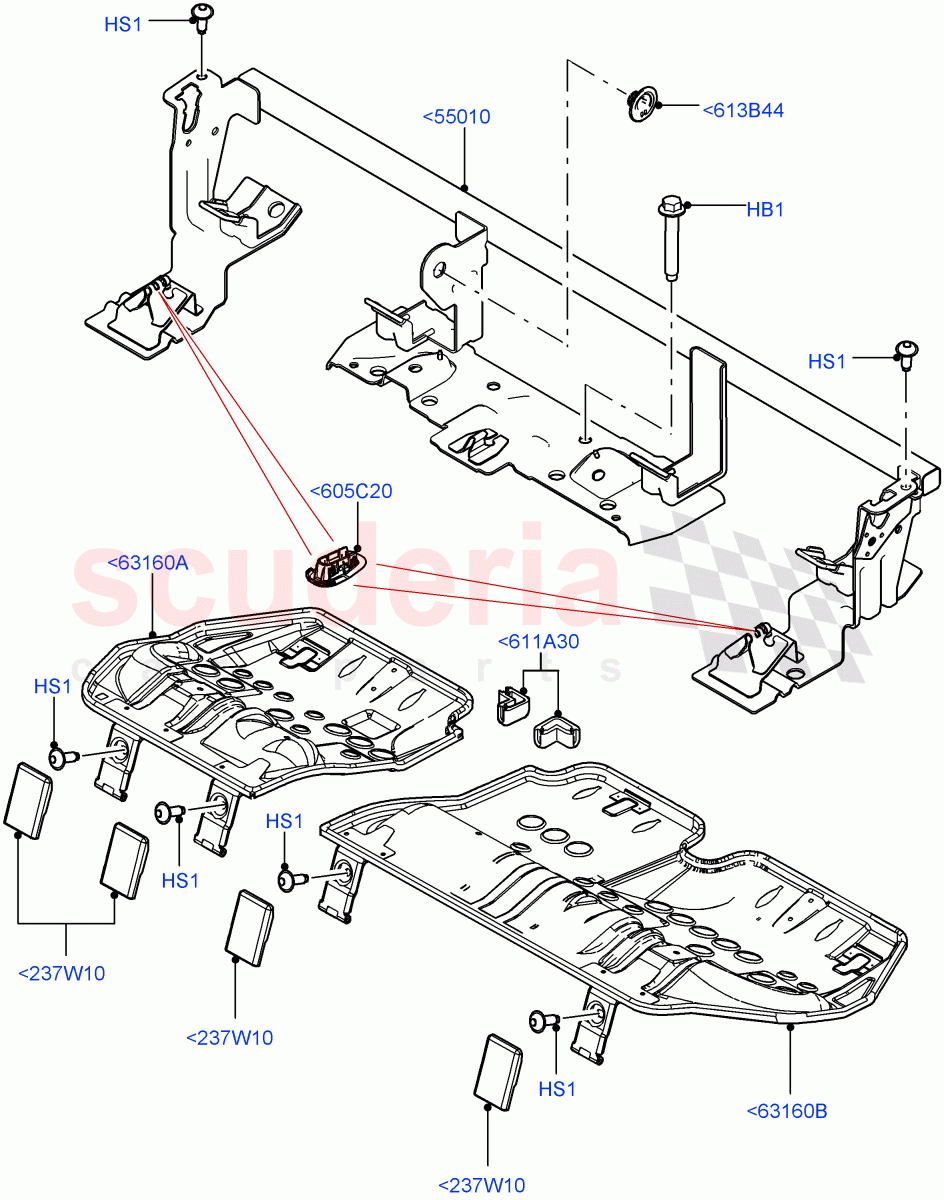

Rear Seat Base (Changsu (China), With 60/40 Split - Folding Rr Seat) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<237W10 LR068841
COVER - HINGE
I/P Facia Contrast - Ebony/Cirrus / From: FG000001 		- 4 Enquire
<605C20 LR003839
GUIDE - SEAT LATCH
From: FG000001 		- 2 Enquire
<611A30 LR000717
PROTECTOR
RH/LH / From: FG000001 		- 2 Enquire
<613B44 LR068935
BUSHING - REAR SEAT MOUNTING
From: FG000001 		- 1 Enquire
<55010 LR059302
MOUNTING - SEAT BACK
From: FG000001 / To: HG352541 		- 1 Enquire
<55010 LR079650
MOUNTING - SEAT BACK
From: HG352542 		- 1 Enquire
<63160A LR003432
FRAME AND SPRING - RR SEAT CUSHION
Small / From: FG000001 		- 1 Enquire
<63160B LR003433
FRAME AND SPRING - RR SEAT CUSHION
Large / From: FG000001 		- 1 Enquire
HB1 FB108166
BOLT - HEX.HEAD
M8 x 1.25 x 80 / From: FG000001 / To: GG310160 		- 4 Enquire
HB1 LR079241
BOLT
M8 x 85MM / From: GG310161 		- 4 Enquire
HS1 LR067429
BOLT
M8 X 16MM / From: FG000001 		- 6 Enquire
