Front Brake Discs And Calipers (Halewood (UK), Disc And Caliper Size-Frt 18/RR 17, Front Disc And Caliper Size 18, Disc And Caliper Size-Frt 18/RR 16) ((V) FROMHH000001, (V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Front Brake Discs And Calipers (Halewood (UK), Disc And Caliper Size-Frt 18/RR 17, Front Disc And...

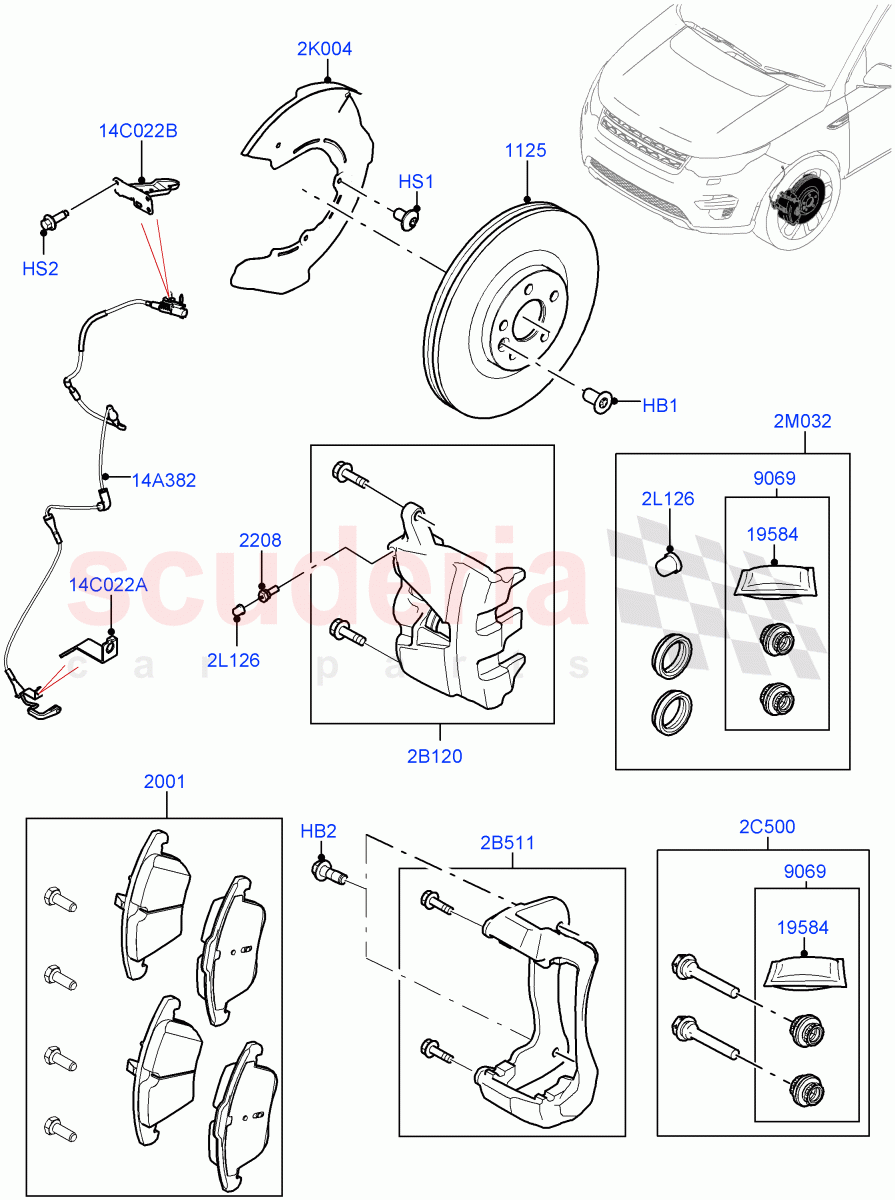

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058339	BOLT	Enquire	To Order
	LR090697	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083647	DISC - BRAKE - VENTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091308	BRAKE PADS - LESS SPRINGS	Enquire	To Order
	LR091568	BRAKE PADS - LESS SPRINGS	Enquire	To Order
	LR134638	BRAKE PADS - LESS SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020053	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091302	CALIPER - BRAKE - LESS PADS	Enquire	To Order
	LR091303	CALIPER - BRAKE - LESS PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101970	BRACKET - BRAKE CALIPER	Enquire	To Order
	LR101971	BRACKET - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091306	KIT - LOCATING PIN BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083649	SHIELD - SPLASH	Enquire	To Order
	LR083650	SHIELD - SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1913	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091309	CALIPER BRAKE PAD MTG PARTS	Enquire	To Order
	LR086604	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083646	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091307	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079314	BRACKET - WIRING CONNECTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR002080	BOLT	LR002080 BOLT M10 X 20MM, Torx / From: HH000001	-	2	Enquire
HB2	LR058339	BOLT	LR058339 BOLT M12 X 42MM / From: HH000001 / To: HH685833	-	4	Enquire
HB2	LR090697	BOLT	LR090697 BOLT Hexagonal Head, M14 X 43mm / From: HH685834	-	4	Enquire
HS1	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Torx / From: HH000001	-	6	Enquire
HS2	RYG500190	SCREW	RYG500190 SCREW Hexagonal Head, M6 X 16MM / From: HH000001	-	2	Enquire
2B120	LR091302	CALIPER - BRAKE - LESS PADS	LR091302 CALIPER - BRAKE - LESS PADS RH, For 18" Brakes / From: HH000001	-	1	Enquire
2B120	LR091303	CALIPER - BRAKE - LESS PADS	LR091303 CALIPER - BRAKE - LESS PADS LH, For 18" Brakes / From: HH000001	-	1	Enquire
2B511	LR101970	BRACKET - BRAKE CALIPER	LR101970 BRACKET - BRAKE CALIPER RH / From: HH000001	-	1	Enquire
2B511	LR101971	BRACKET - BRAKE CALIPER	LR101971 BRACKET - BRAKE CALIPER LH / From: HH000001	-	1	Enquire
2C500	LR091306	KIT - LOCATING PIN BOLTS	LR091306 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot / From: HH000001	-	2	Enquire
2K004	LR083649	SHIELD - SPLASH	LR083649 SHIELD - SPLASH RH / From: HH000001	-	1	Enquire
2K004	LR083650	SHIELD - SPLASH	LR083650 SHIELD - SPLASH LH / From: HH000001	-	1	Enquire
2L126	STC1913	CAP - BLEED SCREW	STC1913 CAP - BLEED SCREW From: HH000001	-	2	Enquire
2M032	LR091309	CALIPER BRAKE PAD MTG PARTS	LR091309 CALIPER BRAKE PAD MTG PARTS Caliper Set / From: HH000001 / To: HH685766	-	2	Enquire
2M032	LR086604	KIT - CALIPER BRAKE PAD MTG PARTS	LR086604 KIT - CALIPER BRAKE PAD MTG PARTS Caliper Set / From: HH685767	-	2	Enquire
14A382	LR083646	WIRE - BRAKE PAD WEAR WARNING	LR083646 WIRE - BRAKE PAD WEAR WARNING From: HH000001	-	1	Enquire
14C022A	LR091307	BRACKET - WIRING	LR091307 BRACKET - WIRING From: HH000001	-	1	Enquire
14C022B	LR079314	BRACKET - WIRING CONNECTOR	LR079314 BRACKET - WIRING CONNECTOR From: HH000001	-	1	Enquire
1125	LR083647	DISC - BRAKE - VENTED	LR083647 DISC - BRAKE - VENTED 349MM, For 18" Brakes, RH/LH / From: HH000001	-	2	Enquire
2001	LR091308	BRAKE PADS - LESS SPRINGS	LR091308 BRAKE PADS - LESS SPRINGS For 18" Brakes, Less Clips, Standard Performance / From: HH000001	-	1	Enquire
2001	LR091568	BRAKE PADS - LESS SPRINGS	LR091568 BRAKE PADS - LESS SPRINGS European Markets / Dealer Fit Only, For 18" Brakes, High Performance, Less Clips / From: HH000001 / To: KH813986	-	1	Enquire
2001	LR134638	BRAKE PADS - LESS SPRINGS	LR134638 BRAKE PADS - LESS SPRINGS European Markets / Dealer Fit Only, For 18" Brakes, High Performance, Less Clips / From: KH813987	-	1	Enquire
2208	LR015523	SCREW - BLEED	LR015523 SCREW - BLEED From: HH000001	-	2	Enquire
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot / From: HH000001	-	2	Enquire
19584	LR020053	GREASE - CHASSIS LUBRICATION	LR020053 GREASE - CHASSIS LUBRICATION From: HH000001	-	1	Enquire
