Air Cleaner (2.2L Cr Di 16V Diesel)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Air Cleaner (2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000033 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR030371 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR024316 PIN Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR000044 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR053013 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR161844 FILTER - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR025326 CONNECTION - AIR INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR060350 TUBE - AIR CLEANER INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR049679 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR049681 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR019830 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR060069 INSULATOR - AIR CLEANER HOUSING Enquire To Order
View All

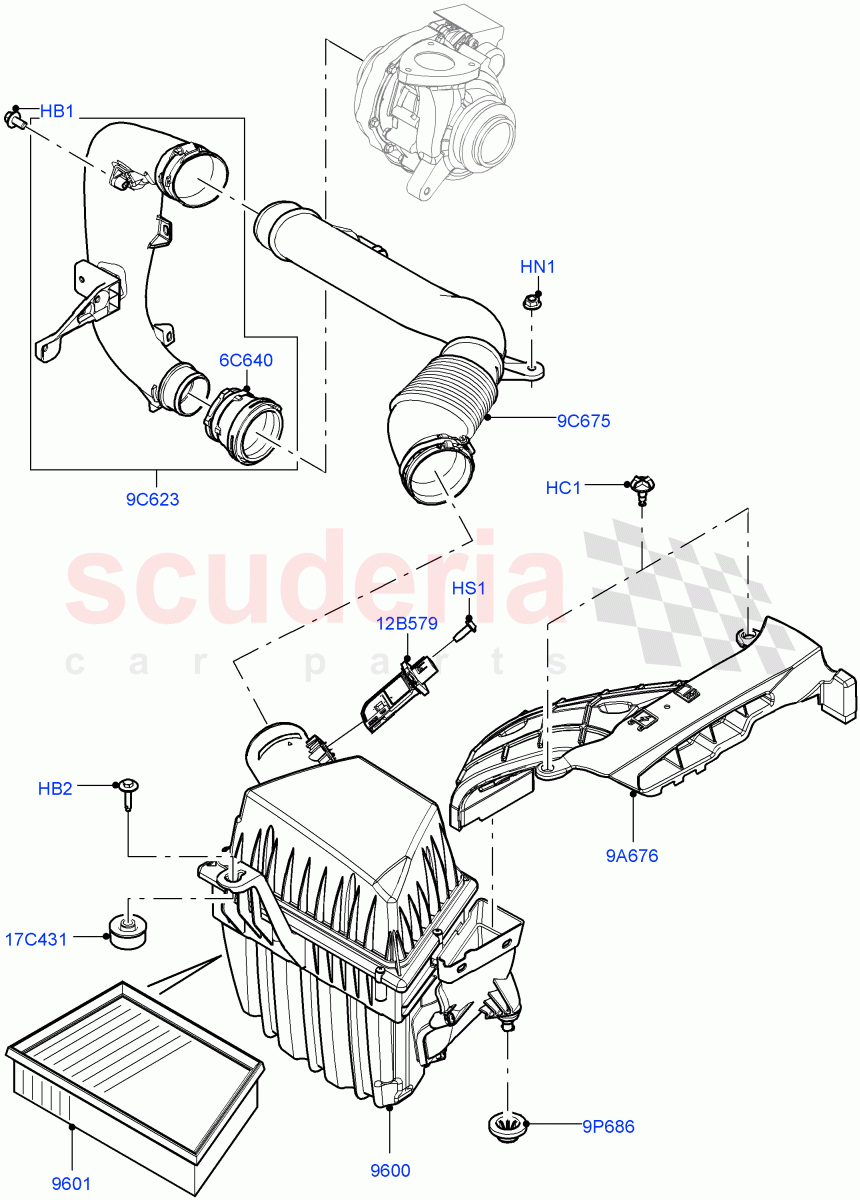

Air Cleaner (2.2L CR DI 16V Diesel) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000033
SCREW
Hexagonal Head, M6 x 12MM 		- 1 Enquire
HB2 LR030371
BOLT
Bolt And Washer, Hexagonal Head, M6 x 25MM 		- 1 Enquire
HC1 LR024316
PIN
Rivet Blind 9.4 X 13 		- 2 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 1 Enquire
HS1 LR000044
SCREW
4 X 12MM 		- 2 Enquire
6C640 LR025326
CONNECTION - AIR INLET
Connection, Turbocharger Inlet 		- 1 Enquire
9A676 LR060350
TUBE - AIR CLEANER INTAKE 		- 1 Enquire
9C623 LR049679
DUCT - AIR
Turbocharger Inlet 		- 1 Enquire
9C675 LR049681
DUCT - AIR
Air Filter Housing To Turbocharger Inlet Tube 		- 1 Enquire
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown 		- 2 Enquire
12B579 LR019830
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor 		- 1 Enquire
17C431 LR060069
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown 		- 1 Enquire
9600 LR053013
CLEANER - AIR
Housing Assy 		- 1 Enquire
9601 LR161844
FILTER - AIR CLEANER 		- 1 Enquire
