Cylinder Head (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Cylinder Head (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12)

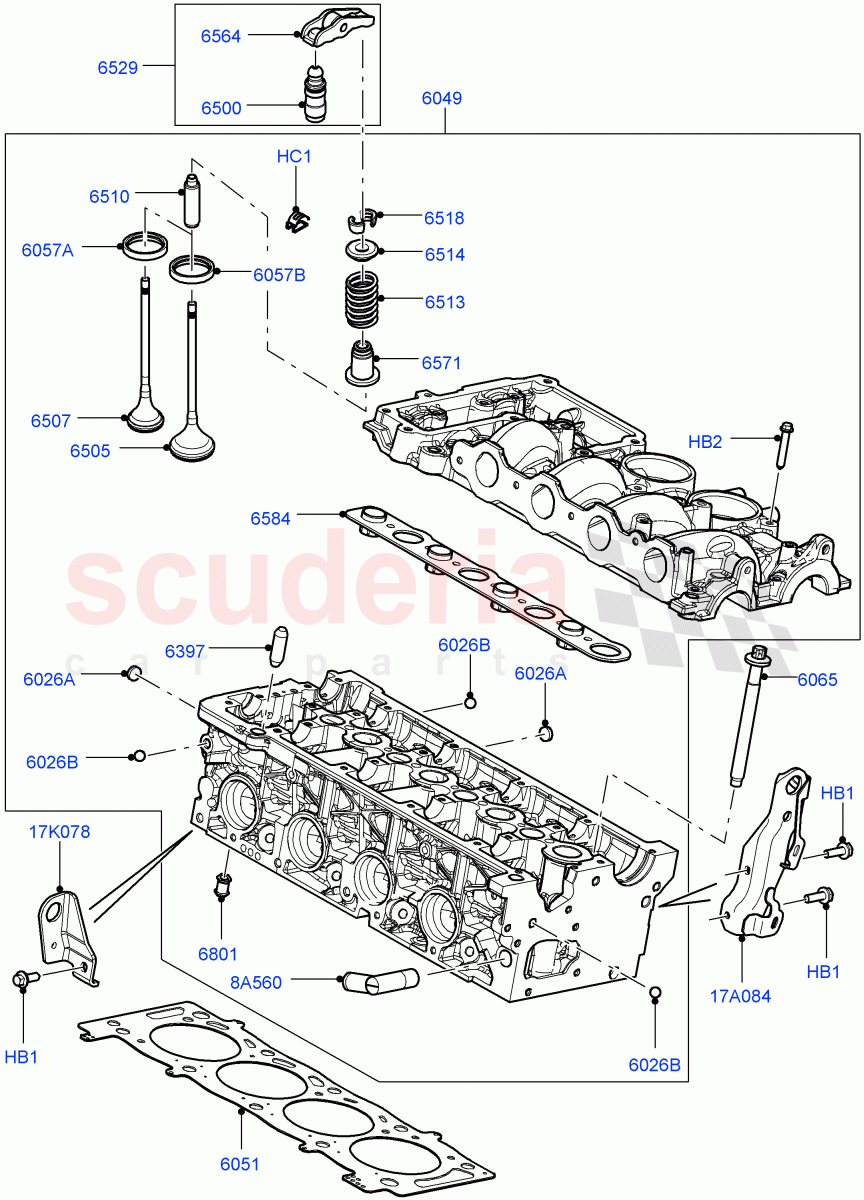

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009409	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043999	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004165	SPRING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022092	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017303	GASKET-CYLINDER HEAD	Enquire	To Order
	LR017304	GASKET-CYLINDER HEAD	Enquire	To Order
	LR017305	GASKET-CYLINDER HEAD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR062477	BOLT - HEX.HEAD	Enquire	To Order
	LR075366	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000658	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004168	TAPPET - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069033	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069031	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001240	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000669	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007154	KEY - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140311	ARM - VALVE ROCKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004167	ARM - VALVE ROCKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001242	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002834	GASKET - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000677	VALVE - CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001215	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006657	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009393	CONNECTOR - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006647	BRACKET - ENGINE LIFTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005363	BRACKET - ENGINE LIFTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR009409	BOLT	LR009409 BOLT M8 X 23MM	-	3	Enquire
HB2	LR043999	BOLT - HEX.HEAD	LR043999 BOLT - HEX.HEAD M6 X 40MM	-	27	Enquire
HC1	LR004165	SPRING - RETAINING	LR004165 SPRING - RETAINING Arm Assy Valve Rocker	-	16	Enquire
8A560	LR009393	CONNECTOR - INLET	LR009393 CONNECTOR - INLET	-	1	Enquire
17A084	LR006647	BRACKET - ENGINE LIFTING	LR006647 BRACKET - ENGINE LIFTING Rear	-	1	Enquire
17K078	LR005363	BRACKET - ENGINE LIFTING	LR005363 BRACKET - ENGINE LIFTING Front	-	1	Enquire
6026A	LR001215	PLUG - ENGINE	LR001215 PLUG - ENGINE	-	4	Enquire
6026B	LR006657	PLUG - ENGINE	LR006657 PLUG - ENGINE Ball Polished	-	6	Enquire
6049	LR022092	CYLINDER HEAD	LR022092 CYLINDER HEAD New Part-Please Check For Reman Version	-	1	Enquire
6051	LR017303	GASKET-CYLINDER HEAD	LR017303 GASKET-CYLINDER HEAD 1 Hole, 1.25MM	-	1	Enquire
6051	LR017304	GASKET-CYLINDER HEAD	LR017304 GASKET-CYLINDER HEAD 1.30MM, 2 Holes	-	1	Enquire
6051	LR017305	GASKET-CYLINDER HEAD	LR017305 GASKET-CYLINDER HEAD 1.35MM, 3 Holes	-	1	Enquire
6051	LR017307	GASKET-CYLINDER HEAD	LR017307 GASKET-CYLINDER HEAD 1.40MM, 4 Holes	-	1	Enquire
6065	LR062477	BOLT - HEX.HEAD	LR062477 BOLT - HEX.HEAD To: FH501000	-	10	Enquire
6065	LR075366	BOLT - HEX.HEAD	LR075366 BOLT - HEX.HEAD From: FH501001	-	10	Enquire
6397	LR000658	DOWEL - PIN	LR000658 DOWEL - PIN	-	2	Enquire
6500	LR004168	TAPPET - VALVE	LR004168 TAPPET - VALVE	-	16	Enquire
6505	LR069033	VALVE - EXHAUST	LR069033 VALVE - EXHAUST	-	8	Enquire
6507	LR069031	VALVE - INLET	LR069031 VALVE - INLET	-	8	Enquire
6513	LR001240	SPRING - VALVE	LR001240 SPRING - VALVE	-	16	Enquire
6514	LR000669	RETAINER - VALVE SPRING	LR000669 RETAINER - VALVE SPRING	-	16	Enquire
6518	LR007154	KEY - VALVE SPRING RETAINER	LR007154 KEY - VALVE SPRING RETAINER	-	32	Enquire
6529	LR140311	ARM - VALVE ROCKER	LR140311 ARM - VALVE ROCKER Complete Assembly	-	16	Enquire
6564	LR004167	ARM - VALVE ROCKER	LR004167 ARM - VALVE ROCKER	-	16	Enquire
6571	LR001242	SEAL - VALVE STEM	LR001242 SEAL - VALVE STEM	-	16	Enquire
6584	LR002834	GASKET - CYLINDER HEAD	LR002834 GASKET - CYLINDER HEAD	-	1	Enquire
6801	LR000677	VALVE - CONTROL	LR000677 VALVE - CONTROL	-	1	Enquire
