Crankshaft/Pistons And Bearings (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Crankshaft/Pistons And Bearings (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12)

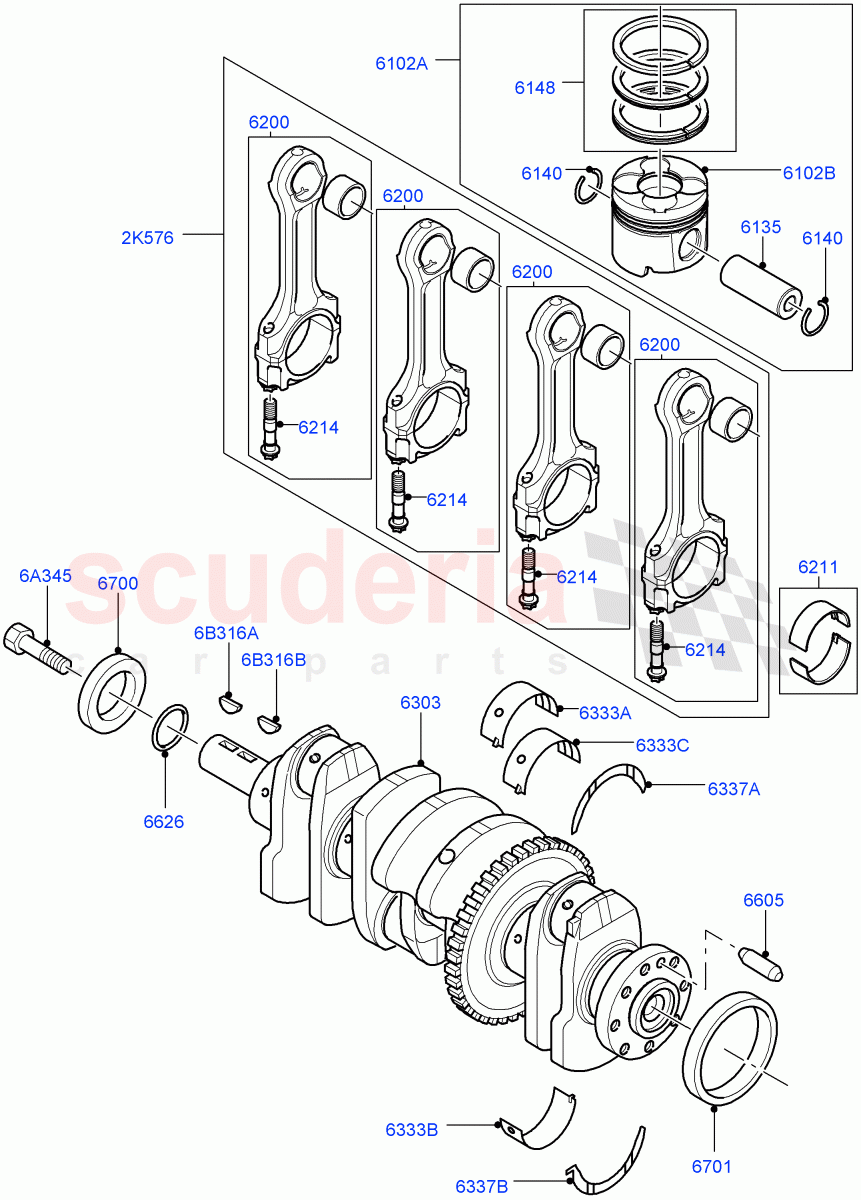

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001224	RETAINER - PISTON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038757	KIT - PISTON RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019693	ROD - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069028	BEARING - CONNECTING ROD	Enquire	To Order
	LR069029	BEARING - CONNECTING ROD	Enquire	To Order
	LR069030	BEARING - CONNECTING ROD	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR001233	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022080	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000671	PLUG - SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000647	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052514	SEAL - CRANKSHAFT OIL - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052515	SEAL - CRANKSHAFT OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051836	KIT - CONNECTING RODS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022444	PISTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022090	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022514	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR022517	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR022518	BEARING - CRANKSHAFT MAIN	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR025915	BEARING - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025913	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000645	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000650	KEY - WOODRUFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000651	KEY - WOODRUFF	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2K576	LR051836	KIT - CONNECTING RODS	LR051836 KIT - CONNECTING RODS	-	1	Enquire
6A345	LR000645	BOLT - HEX.HEAD	LR000645 BOLT - HEX.HEAD M14 X 150MM, Pulley - Crankshaft	-	1	Enquire
6B316A	LR000650	KEY - WOODRUFF	LR000650 KEY - WOODRUFF Pin - Crankshaft	-	1	Enquire
6B316B	LR000651	KEY - WOODRUFF	LR000651 KEY - WOODRUFF Pin - Crankshaft	-	1	Enquire
6102A	LR022444	PISTON	LR022444 PISTON Includes Piston Rings, Pin And Retaining Rings	-	4	Enquire
6140	LR001224	RETAINER - PISTON PIN	LR001224 RETAINER - PISTON PIN	-	8	Enquire
6148	LR038757	KIT - PISTON RING	LR038757 KIT - PISTON RING	-	4	Enquire
6200	LR019693	ROD - CONNECTING	LR019693 ROD - CONNECTING	-	4	Enquire
6211	LR069028	BEARING - CONNECTING ROD	LR069028 BEARING - CONNECTING ROD Green / To: EH999999	-	4	Enquire
6211	LR069029	BEARING - CONNECTING ROD	LR069029 BEARING - CONNECTING ROD Yellow / To: EH999999	-	4	Enquire
6211	LR069030	BEARING - CONNECTING ROD	LR069030 BEARING - CONNECTING ROD Blue / To: EH999999	-	4	Enquire
6211	LR134885	BEARING - CONNECTING ROD	LR134885 BEARING - CONNECTING ROD Green / From: FH000001	-	4	Enquire
6211	LR134886	BEARING - CONNECTING ROD	LR134886 BEARING - CONNECTING ROD Yellow / From: FH000001	-	4	Enquire
6211	LR134887	BEARING - CONNECTING ROD	LR134887 BEARING - CONNECTING ROD Blue / From: FH000001	-	4	Enquire
6214	LR001233	BOLT - SPECIAL	LR001233 BOLT - SPECIAL M9 X 45MM	-	8	Enquire
6303	LR022080	CRANKSHAFT	LR022080 CRANKSHAFT	-	1	Enquire
6333A	LR022090	BEARING - CRANKSHAFT MAIN	LR022090 BEARING - CRANKSHAFT MAIN Upper	-	5	Enquire
6333B	LR022514	BEARING - CRANKSHAFT MAIN	LR022514 BEARING - CRANKSHAFT MAIN 1.869MM, Lower, Yellow	-	5	Enquire
6333B	LR022517	BEARING - CRANKSHAFT MAIN	LR022517 BEARING - CRANKSHAFT MAIN 1.837MM, Blue, Lower	-	5	Enquire
6333B	LR022518	BEARING - CRANKSHAFT MAIN	LR022518 BEARING - CRANKSHAFT MAIN 1.845MM, Black, Lower	-	5	Enquire
6333B	LR022519	BEARING - CRANKSHAFT MAIN	LR022519 BEARING - CRANKSHAFT MAIN 1.853MM, Green, Lower	-	5	Enquire
6333B	LR022520	BEARING - CRANKSHAFT MAIN	LR022520 BEARING - CRANKSHAFT MAIN 1.861MM, Lower, Red	-	5	Enquire
6337A	LR025915	BEARING - CAMSHAFT	LR025915 BEARING - CAMSHAFT Upper	-	2	Enquire
6337B	LR025913	BEARING - CRANKSHAFT MAIN	LR025913 BEARING - CRANKSHAFT MAIN Lower	-	2	Enquire
6605	LR000671	PLUG - SLEEVE	LR000671 PLUG - SLEEVE Plug	-	1	Enquire
6626	LR000647	RING - SEALING	LR000647 RING - SEALING O Ring	-	1	Enquire
6700	LR052514	SEAL - CRANKSHAFT OIL - FRONT	LR052514 SEAL - CRANKSHAFT OIL - FRONT	-	1	Enquire
6701	LR052515	SEAL - CRANKSHAFT OIL	LR052515 SEAL - CRANKSHAFT OIL Crankshaft, Rear	-	1	Enquire
