Name: Rear Brake Pipes (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)
Rating: 5.0 (1 reviews)

View All

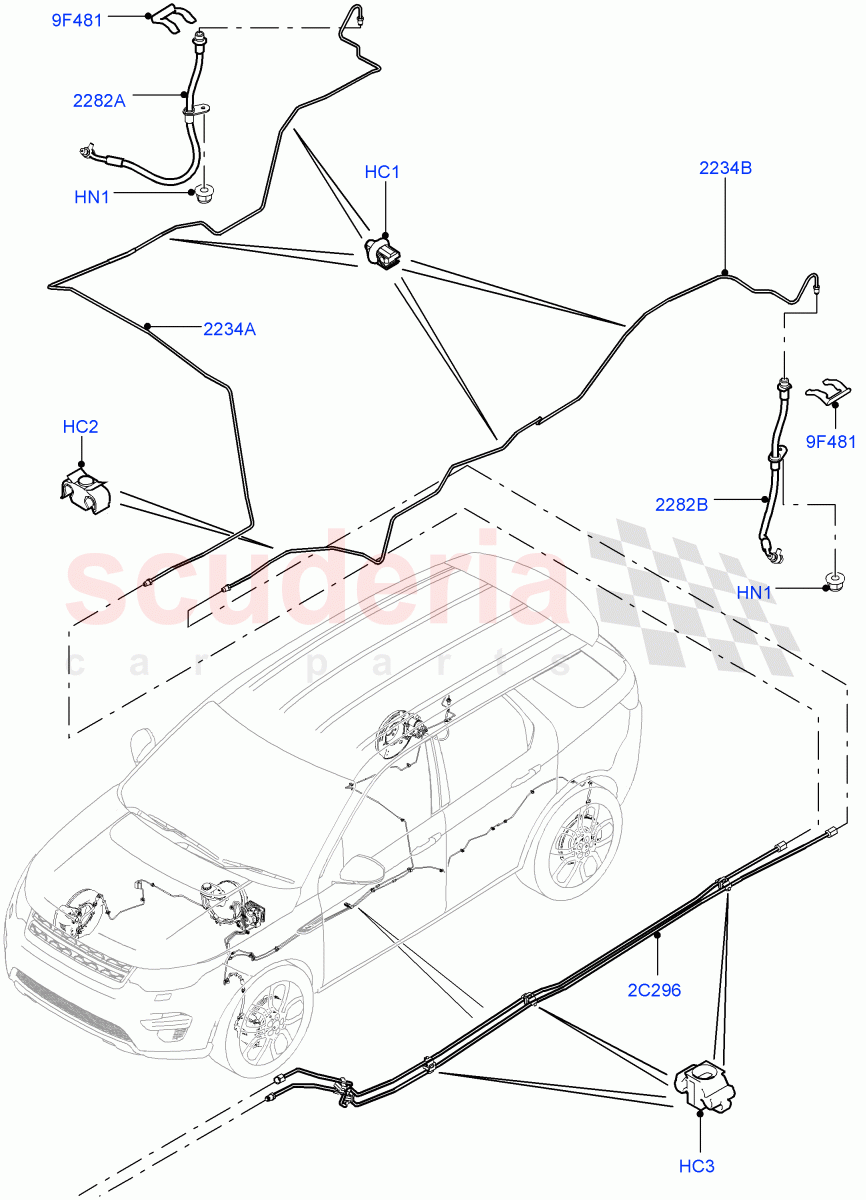

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000061	CLIP	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR1864	CLIP - BRAKE PIPE	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006030	CLIP	$5.89	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR078982	TUBE - BRAKE	$55.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104181	HOSE - BRAKE	$77.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104180	HOSE - BRAKE	$70.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071988	KIT - BRAKE TUBES	$99.79	To Order

Photo	Part No	Description	Price (each)	Stock
	EJP7813	CLIP - HOSE	$2.36	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR000061	CLIP	LR000061 CLIP 4.8 X 8 X 4, Single / From: FG000001	$0.50	13
HC2	ANR1864	CLIP - BRAKE PIPE	ANR1864 CLIP - BRAKE PIPE Double / From: FG000001	$2.32	1
HC3	LR006030	CLIP	LR006030 CLIP Brake Tube, Double / From: FG000001	$5.89	3
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Brake Hose, Hexagonal Head, M6, Support Bracket / From: FG000001 IN STOCK	$0.69	2
2C296	LR071988	KIT - BRAKE TUBES	LR071988 KIT - BRAKE TUBES Under Floor / From: FG000001	$99.79	1
9F481	EJP7813	CLIP - HOSE IN STOCK	EJP7813 CLIP - HOSE Brake Hose, Retainer / From: FG000001 IN STOCK	$2.36	2
2234A	LR061018	TUBE - BRAKE	LR061018 TUBE - BRAKE RH, ABS Modulator To Caliper Hose, Rear Section / From: FG000001 / To: JG420362	$60.66	1
2234A	LR117104	TUBE - BRAKE	LR117104 TUBE - BRAKE RH, ABS Modulator To Caliper Hose, Rear Section / From: JG420362	$59.42	1
2234B	LR078982	TUBE - BRAKE	LR078982 TUBE - BRAKE LH, ABS Modulator To Caliper Hose, Rear Section / From: FG000001	$55.38	1
2282A	LR104181	HOSE - BRAKE	LR104181 HOSE - BRAKE RH, To Caliper / From: FG000001	$77.79	1
2282B	LR104180	HOSE - BRAKE	LR104180 HOSE - BRAKE LH, To Caliper / From: FG000001	$70.13	1

Rear Brake Pipes (Changsu (China)) ((V) Fromfg000001, (V) Tokg446856)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]
