Transmission Modules And Sensors (Transmission Control Module) (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Halewood (UK), 1.5L AJ20P3 Petrol High PHEV) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Transmission Modules And Sensors (Transmission Control Module) (1.5L AJ20P3 Petrol High, 8 Speed...

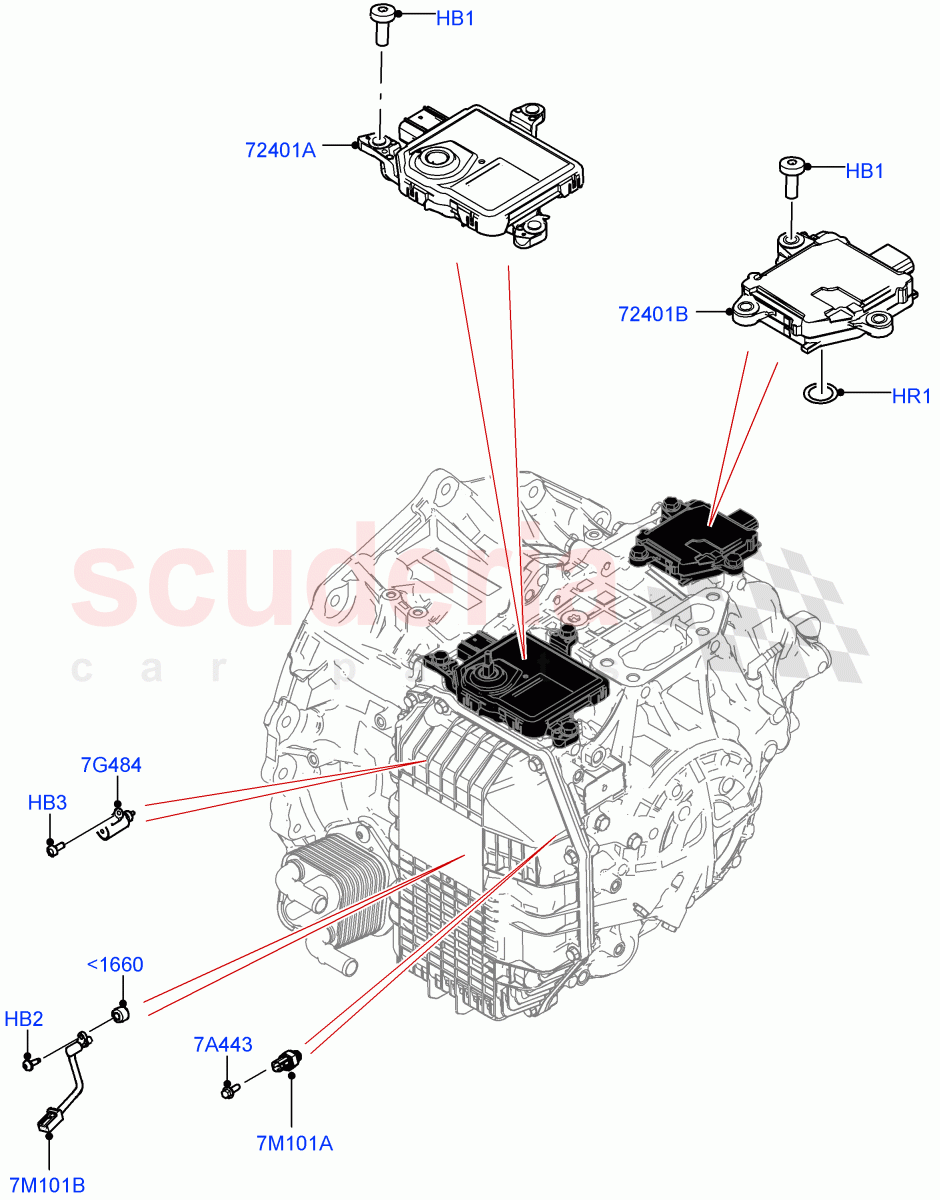

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<1660	LR127741	SPACER - STRIKER	LR127741 SPACER - STRIKER Sensor - Output Speed / From: LH000001	-	1	Enquire
HB1	LR127738	BOLT	LR127738 BOLT Transmission Control Module / From: LH000001	-	3	Enquire
HB2	LR127737	SCREW	LR127737 SCREW Sensor - Output Speed / From: LH000001	-	1	Enquire
HB3	LR127736	SCREW	LR127736 SCREW 1.5L AJ20P3 Petrol High / Solenoid, Torx / From: LH000001	-	1	Enquire
HR1	LR133121	RING - SEALING	LR133121 RING - SEALING 1.5L AJ20P3 Petrol High PHEV / E-O/P Driver / From: LH000001	-	1	Enquire
7A443	LR023465	BOLT	LR023465 BOLT Hexagonal Head, M6 X 14MM, Sensor - Input Speed / From: LH000001	-	1	Enquire
7G484	LR127848	SOLENOID - SHIFT CONTROL	LR127848 SOLENOID - SHIFT CONTROL 1.5L AJ20P3 Petrol High / Not P Hold / From: LH000001	-	1	Enquire
7M101A	LR127861	SENSOR - TURBINE SHAFT SPEED - TSS	LR127861 SENSOR - TURBINE SHAFT SPEED - TSS Sensor - Input Speed / From: LH000001	-	1	Enquire
7M101B	LR127849	SENSOR - ENGINE SPEED	LR127849 SENSOR - ENGINE SPEED Output / From: LH000001	-	1	Enquire
72401A	LR138822	MODULE - TRANSMISSION CONTROL (TCM)	LR138822 MODULE - TRANSMISSION CONTROL (TCM) 1.5L AJ20P3 Petrol High PHEV / From: LH000001 / To: NH999999	-	1	Enquire
72401A	LR138820	MODULE - TRANSMISSION CONTROL (TCM)	LR138820 MODULE - TRANSMISSION CONTROL (TCM) 1.5L AJ20P3 Petrol High / From: LH000001 / To: NH999999	-	1	Enquire
72401A	LR175151	Module - Transmission Control (TCM)	LR175151 Module - Transmission Control (TCM) 1.5L AJ20P3 Petrol High PHEV / From: PH000001	-	1	Enquire
72401A	LR175152	Module - Transmission Control (TCM)	LR175152 Module - Transmission Control (TCM) 1.5L AJ20P3 Petrol High / From: PH000001	-	1	Enquire
72401B	LR132264	MODULE - TRANSMISSION CONTROL (TCM)	LR132264 MODULE - TRANSMISSION CONTROL (TCM) 1.5L AJ20P3 Petrol High PHEV / E-O/P Driver / From: LH000001	-	1	Enquire
