Timing Gear (2.0L I4 High Dohc Aj200 Petrol, Halewood (Uk), 2.0L I4 Mid Dohc Aj200 Petrol, 2.0L I4...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Timing Gear (2.0L I4 High DOHC AJ200 Petrol, Halewood (UK), 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088515 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR091750 BOLT - SPECIAL Enquire To Order
LR127722 BOLT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR095784 O-RING Enquire To Order
LR154974 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073762 PIN - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR073759 NUT - SPECIAL Enquire To Order
LR120542 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR142281 SPROCKET - CAMSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR091759 SPROCKET - CAMSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR091740 CHAIN - TIMING Enquire To Order
Photo Part No Description Price (each) Stock
LR091742 CHAIN - TIMING Enquire To Order
LR139321 CHAIN - DRIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR091743 TENSIONER - TIMING BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR093825 TENSIONER - TIMING BELT Enquire To Order
LR123811 TENSIONER - TIMING BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR124261 IDLER - DRIVE CHAIN Enquire To Order
LR124261 IDLER - DRIVE CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR073778 SOLENOID - ENGINE VARIABLE TIMING Enquire To Order
LR177463 SOLENOID - ENGINE VARIABLE TIMING Enquire To Order
Photo Part No Description Price (each) Stock
LR124262 ARM - TIMING CHAIN TENSIONER Enquire To Order
LR124262 ARM - TIMING CHAIN TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
LR125215 GUIDE - TIMING CHAIN Enquire To Order
LR125215 GUIDE - TIMING CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR091745 GUIDE - TIMING CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR091747 ARM - TIMING CHAIN TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
LR091746 GUIDE - TIMING CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR091574 JET - CHAIN LUBRICATING Enquire To Order
Photo Part No Description Price (each) Stock
LR091575 JET - CHAIN LUBRICATING Enquire To Order
View All

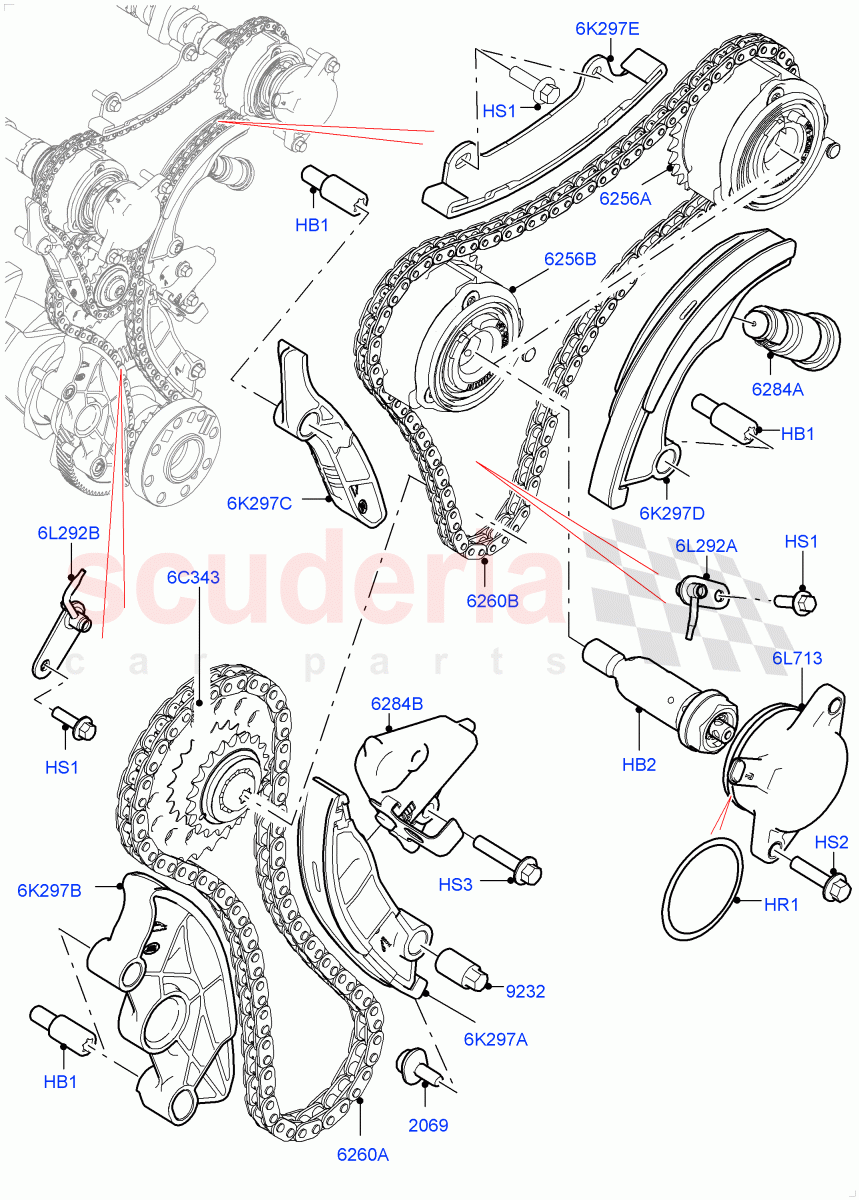

Timing Gear (2.0L I4 High DOHC AJ200 Petrol, Halewood (UK), 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088515
BOLT
Chain Guide, M8 X 17MM, Primary / From: JH000001 		- 2 Enquire
HB2 LR091750
BOLT - SPECIAL
Variable Valve Timing Unit / From: JH000001 / To: KH806742 		- 2 Enquire
HB2 LR127722
BOLT - SPECIAL
Variable Valve Timing Unit / From: KH806743 		- 2 Enquire
HR1 LR095784
O-RING 		- 2 Enquire
HR1 LR154974
O-RING 		- 2 Enquire
HS1 LR073655
SCREW
Chain Guide, Hexagonal Head, M6 X 20MM / From: JH000001 		- 2 Enquire
HS2 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: JH000001 		- 4 Enquire
HS3 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Tensioner / From: JH000001 		- 2 Enquire
6C343 LR124261
IDLER - DRIVE CHAIN
Intermediate / From: JH000001 / To: JH770574 		- 1 Enquire
6C343 LR124261
IDLER - DRIVE CHAIN
Intermediate / From: JH770575 		- 1 Enquire
6K297A LR124262
ARM - TIMING CHAIN TENSIONER
Primary, Rear / From: JH000001 / To: JH770574 		- 1 Enquire
6K297A LR124262
ARM - TIMING CHAIN TENSIONER
Primary, Rear / From: JH770575 		- 1 Enquire
6K297B LR125215
GUIDE - TIMING CHAIN
Front, Primary / From: JH000001 / To: KH804514 		- 1 Enquire
6K297B LR125215
GUIDE - TIMING CHAIN
Front, Primary / From: KH804515 		- 1 Enquire
6K297C LR091745
GUIDE - TIMING CHAIN
Front, Secondary / From: JH000001 		- 1 Enquire
6K297D LR091747
ARM - TIMING CHAIN TENSIONER
Rear, Secondary / From: JH000001 		- 1 Enquire
6K297E LR091746
GUIDE - TIMING CHAIN
Secondary, Upper / From: JH000001 		- 1 Enquire
6L292A LR091574
JET - CHAIN LUBRICATING
Upper / From: JH000001 		- 1 Enquire
6L292B LR091575
JET - CHAIN LUBRICATING
Lower / From: JH000001 		- 1 Enquire
6L713 LR073778
SOLENOID - ENGINE VARIABLE TIMING
From: JH000001 / To: KH802807 		- 2 Enquire
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: KH802808 		- 2 Enquire
2069 LR073762
PIN - SPECIAL
PIVOT / From: JH000001 		- 1 Enquire
6256A LR142281
SPROCKET - CAMSHAFT
Exhaust, Variable Valve Timing Unit / From: JH000001 		- 1 Enquire
6256B LR091759
SPROCKET - CAMSHAFT
Inlet, Variable Valve Timing Unit / From: JH000001 		- 1 Enquire
6260A LR091740
CHAIN - TIMING
Lower, Primary / From: JH000001 		- 1 Enquire
6260B LR091742
CHAIN - TIMING
Secondary, Upper / From: JH000001 / To: KH830040 		- 1 Enquire
6260B LR139321
CHAIN - DRIVE
Secondary, Upper / From: KH830041 		- 1 Enquire
6284A LR091743
TENSIONER - TIMING BELT
Secondary / From: JH000001 		- 1 Enquire
6284B LR093825
TENSIONER - TIMING BELT
Primary / From: JH000001 / To: KH781654 		- 1 Enquire
6284B LR123811
TENSIONER - TIMING BELT
Primary / From: KH781655 		- 1 Enquire
9232 LR073759
NUT - SPECIAL
From: JH000001 / To: JH773584 		- 1 Enquire
9232 LR120542
NUT - SPECIAL
From: JH773585 		- 1 Enquire
