Front Exhaust System (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA, 2.0L AJ20P4 Petrol E100 PTA) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Front Exhaust System (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA, 2.0L...

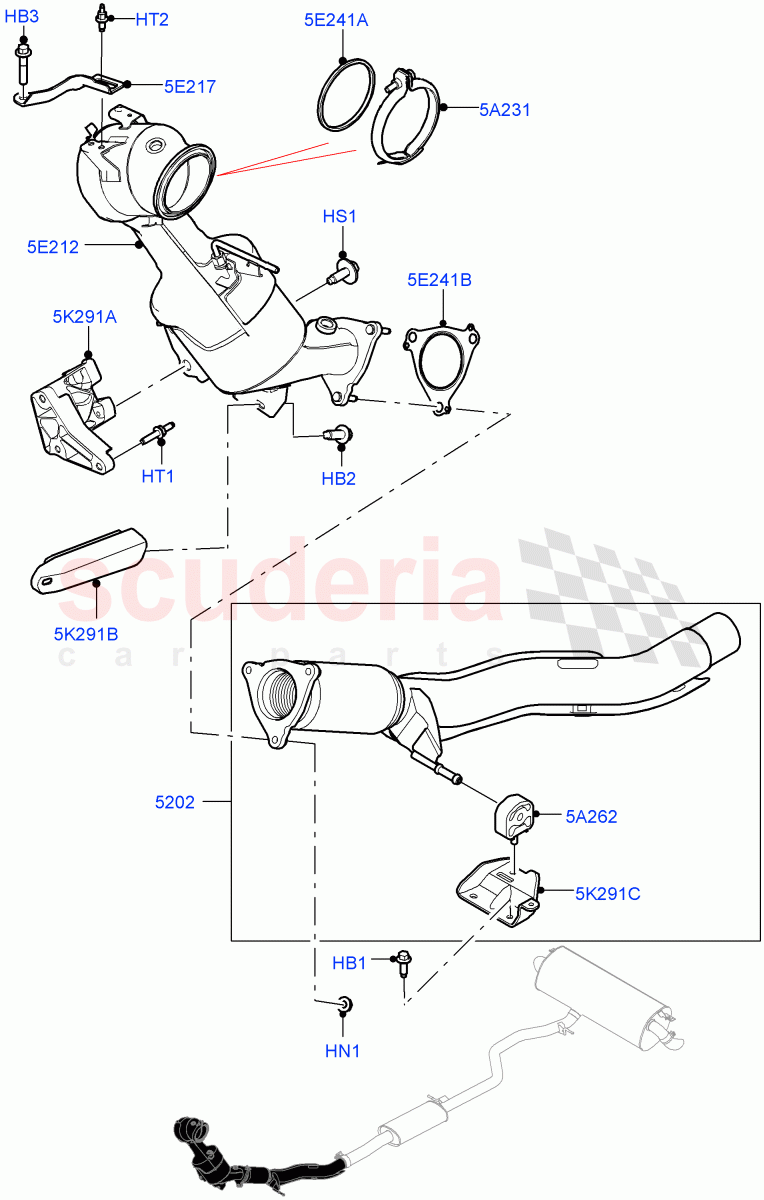

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108086	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYG500050	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023448	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144624	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138045	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140098	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100224	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140386	CONVERTER	Enquire	To Order
	LR140392	CONVERTER	Enquire	To Order
	LR140384	CATALYST AND PARTICLE FILTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR140385	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094164	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114108	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114109	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133156	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG500440	BOLT	RYG500440 BOLT Bracket, Exhaust pipe, Hexagonal Head, M8 X 20MM / From: MH000001	-	2	Enquire
HB2	RYG500230	BOLT - HEX.HEAD	RYG500230 BOLT - HEX.HEAD Hexagonal Head, Lower Bracket, M8 X 20MM / From: MH000001	-	2	Enquire
HB3	FB108086	BOLT	FB108086 BOLT Hexagonal Head, M8 x 40MM, To Cylinder Head / From: MH000001	-	1	Enquire
HN1	FX108046	NUT - LOCKING	FX108046 NUT - LOCKING Exhaust pipe, M8 / From: MH000001	-	3	Enquire
HS1	PYG500050	SCREW	PYG500050 SCREW Lower Bracket, M8 X 20MM / From: MH000001	-	2	Enquire
HT1	LR023448	STUD	LR023448 STUD M8 X 30 + M8 X 16MM, To Engine / From: MH000001	-	3	Enquire
HT2	LR144624	BOLT - HEX.HEAD	LR144624 BOLT - HEX.HEAD M8 X 15MM +M6 X 10MM, To Upper Bracket / From: MH000001	-	2	Enquire
5A231	LR140098	CLAMP - EXHAUST	LR140098 CLAMP - EXHAUST Turbocharger Outlet / From: MH000001	-	1	Enquire
5A262	LR100224	INSULATOR - RUBBER	LR100224 INSULATOR - RUBBER Front / From: MH000001	-	1	Enquire
5E212	LR140386	CONVERTER	LR140386 CONVERTER SULEV Requirements / From: MH000001	-	1	Enquire
5E212	LR140392	CONVERTER	LR140392 CONVERTER Stage V European Emissions / From: MH000001	-	1	Enquire
5E212	LR140384	CATALYST AND PARTICLE FILTER	LR140384 CATALYST AND PARTICLE FILTER EU6D - Final (Petrol) Emission / From: MH000001 / To: MH999999	-	1	Enquire
5E212	LR167506	CATALYST AND PARTICLE FILTER	LR167506 CATALYST AND PARTICLE FILTER EU6D - Final (Petrol) Emission / From: NH000001	-	1	Enquire
5E217	LR140385	BRACKET	LR140385 BRACKET Upper / From: MH000001	-	1	Enquire
5E241A	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER Turbocharger / From: MH000001	-	1	Enquire
5E241B	LR094164	GASKET - EXHAUST PIPE	LR094164 GASKET - EXHAUST PIPE Outlet / From: MH000001	-	1	Enquire
5K291A	LR114108	BRACKET - EXHAUST PIPE MOUNTING	LR114108 BRACKET - EXHAUST PIPE MOUNTING Lower, To Engine / From: MH000001	-	1	Enquire
5K291B	LR114109	BRACKET - EXHAUST PIPE MOUNTING	LR114109 BRACKET - EXHAUST PIPE MOUNTING Lower / From: MH000001	-	1	Enquire
5K291C	LR133156	BRACKET - EXHAUST PIPE MOUNTING	LR133156 BRACKET - EXHAUST PIPE MOUNTING Front / From: MH000001	-	1	Enquire
5202	LR138045	CATALYTIC CONVERTER	LR138045 CATALYTIC CONVERTER From: MH000001	-	1	Enquire
