Name: Oil Pan/Oil Level Indicator (2.0L AJ20P4 Petrol E100 PTA, Itatiaia (Brazil)) ((V) FROMLT000001)
Rating: 5.0 (1 reviews)

View All

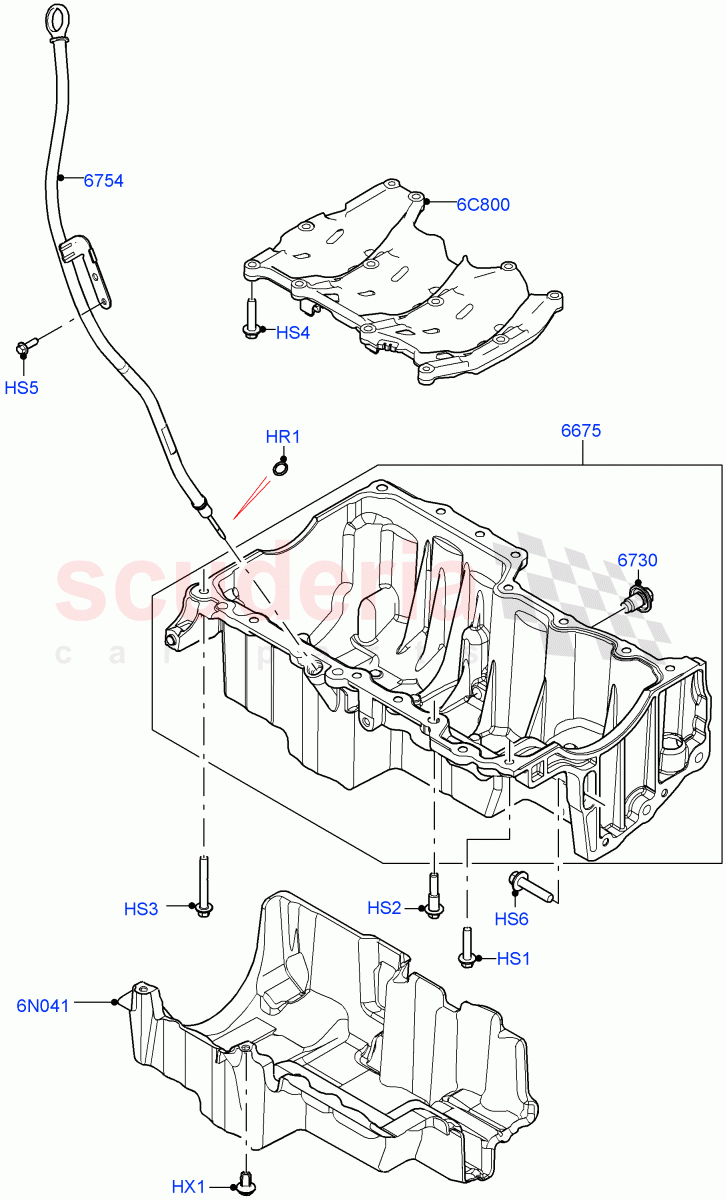

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$4.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087669	PAN - ENGINE OIL	$529.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$7.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117524	TUBE - OIL LEVEL INDICATOR	$48.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137476	TRAY - WINDAGE	$374.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124586	INSULATOR - OIL SUMP	$108.66	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator / From: LT000001	$4.96	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: LT000001	$2.26	13
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm / From: LT000001	$3.30	2
HS3	LR074137	SCREW	LR074137 SCREW M8 x 60mm / From: LT000001	$1.86	1
HS4	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: LT000001	$2.20	12
HS5	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: LT000001	$2.23	1
HS6	LR073724	SCREW	LR073724 SCREW M8 X 25MM, Timing Chain Lower Cover / From: LT000001	$1.96	1
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: LT000001	$2.92	3
6C800	LR137476	TRAY - WINDAGE	LR137476 TRAY - WINDAGE From: LT000001	$374.15	1
6N041	LR124586	INSULATOR - OIL SUMP	LR124586 INSULATOR - OIL SUMP Oil Pan / From: LT000001	$108.66	1
6675	LR087669	PAN - ENGINE OIL	LR087669 PAN - ENGINE OIL From: LT000001	$529.09	1
6730	LR073675	PLUG - OIL DRAIN IN STOCK	LR073675 PLUG - OIL DRAIN M14 X 21 / From: LT000001 IN STOCK	$7.90	1
6754	LR117524	TUBE - OIL LEVEL INDICATOR	LR117524 TUBE - OIL LEVEL INDICATOR From: LT000001	$48.84	1

Oil Pan/Oil Level Indicator (2.0L Aj20P4 Petrol E100 Pta, Itatiaia (Brazil)) ((V) Fromlt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]
