Cylinder Head Cover (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Cylinder Head Cover (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid...

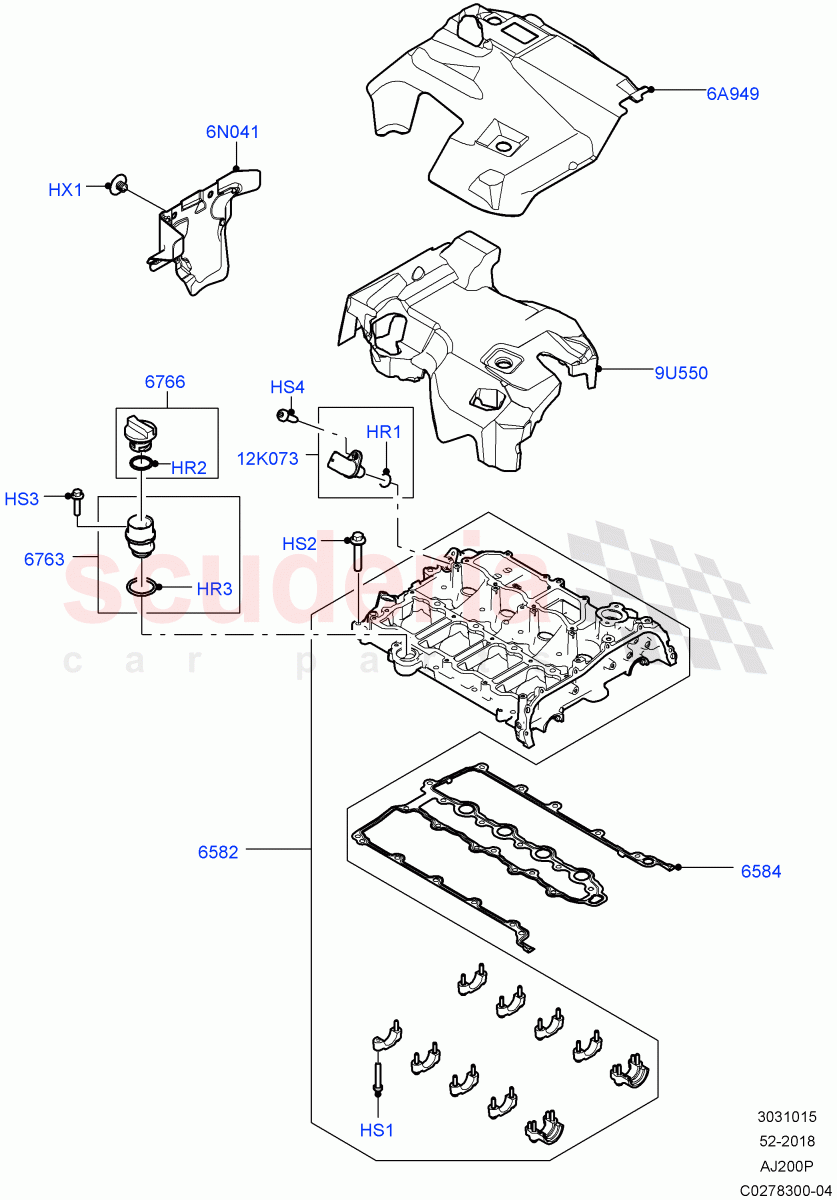

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR095781	O-RING	LR095781 O-RING 17.0MM, Camshaft Position Sensor / From: JH000001	-	2	Enquire
HR2	LR073781	O-RING	LR073781 O-RING Filler Cap,	-	1	Enquire
HR3	LR121391	O-RING	LR121391 O-RING FILLER,	-	1	Enquire
HS1	LR092072	SCREW	LR092072 SCREW M6 x 35MM / From: JH000001	-	20	Enquire
HS2	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: JH000001	-	19	Enquire
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: JH000001	-	1	Enquire
HS4	LR073720	SCREW	LR073720 SCREW Camshaft Position Sensor, M6 X 20MM / From: JH000001	-	2	Enquire
HX1	LR094062	PIN - TRIM	LR094062 PIN - TRIM Pin / From: JH000001	-	2	Enquire
6A949	LR106463	COVER - ENGINE TOP	LR106463 COVER - ENGINE TOP Top / From: JH000001	-	1	Enquire
6N041	LR106461	INSULATOR - CYLINDER HEAD	LR106461 INSULATOR - CYLINDER HEAD Engine Front / From: JH000001	-	1	Enquire
9U550	LR093826	INSULATOR - FOAM PAD	LR093826 INSULATOR - FOAM PAD Camshaft Cover, Top / From: JH000001 / To: KH827355	-	1	Enquire
9U550	LR128417	INSULATOR - FOAM PAD	LR128417 INSULATOR - FOAM PAD Camshaft Cover, Top / From: KH827356	-	1	Enquire
12K073	LR074065	SENSOR - CAMSHAFT POSITION	LR074065 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: JH000001	-	2	Enquire
6582	LR091531	COVER - CYLINDER HEAD	LR091531 COVER - CYLINDER HEAD From: JH000001 / To: JH737247	-	1	Enquire
6582	LR110346	COVER - CYLINDER HEAD	LR110346 COVER - CYLINDER HEAD From: JH737248	-	1	Enquire
6584	LR091765	GASKET - CAMSHAFT COVER	LR091765 GASKET - CAMSHAFT COVER Camshaft Cover / From: JH000001	-	1	Enquire
6763	LR094414	PIPE - OIL INLET	LR094414 PIPE - OIL INLET From: JH000001	-	1	Enquire
6766	LR094641	CAP - OIL FILLER	LR094641 CAP - OIL FILLER From: JH000001	-	1	Enquire
