Name: Cooling System Pipes And Hoses (2.0L AJ20P4 Petrol High PTA, Halewood (UK), Low Engine Cooling, Less Active Tranmission Warming, Medium Engine Cooling, High Engine Cooling)
Rating: 4.6 (1 reviews)

Cooling System Pipes And Hoses (2.0L AJ20P4 Petrol High PTA, Halewood (UK), Low Engine Cooling, Less Active Tranmission Warming, Medium Engine Cooling, High Engine Cooling) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (2.0L AJ20P4 Petrol High PTA, Halewood (UK), Low Engine Cooling,...

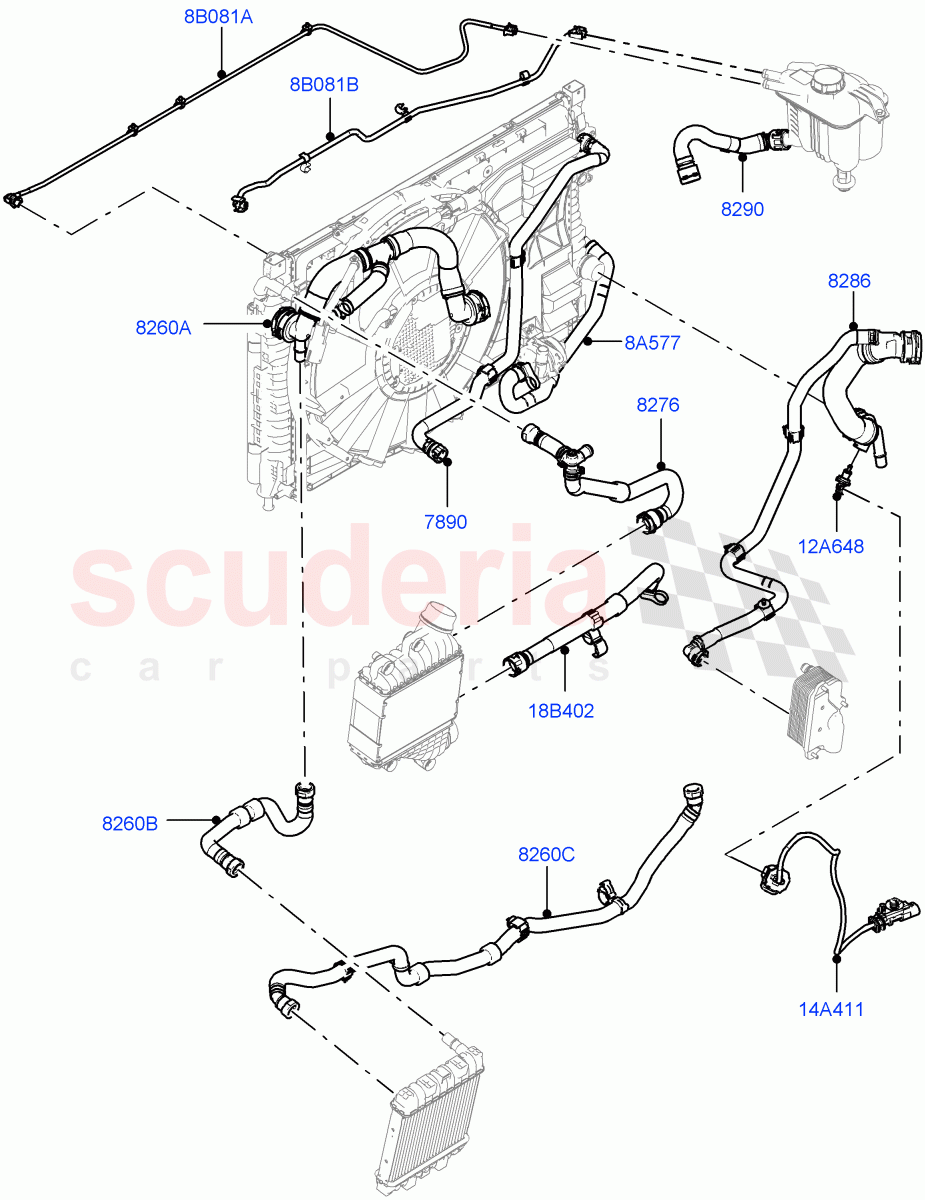

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR114664	HOSE - OIL COOLER	$77.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115218	HOSE - WATER	$68.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115066	HOSE - RADIATOR	$95.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115029	TUBE	$84.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115021	HOSE - RADIATOR	$94.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115225	HOSE - RADIATOR	$52.55	To Order
	LR136866	HOSE - RADIATOR	$52.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115222	HOSE - WATER	$87.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115215	HOSE	$33.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135274	WIRING - TRACTION BATTERY	$53.14	To Order

Photo	Part No	Description	Price (each)	Stock
	104123694	HOSE - TURBOCHARGER TO INTERCOOLER	$28.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128178	HOSE	$55.76	To Order
	LR163783	HOSE	$58.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115227	HOSE - OVERFLOW CONTAINER	$45.72	To Order
	LR137723	HOSE - OVERFLOW CONTAINER	$48.14	To Order
	LR163785	HOSE - OVERFLOW CONTAINER	$54.59	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
8A577	LR115215	HOSE	LR115215 HOSE Auxiliary Water Pump Assembly, Outlet / From: LH000001	$33.33	1
8B081A	LR128178	HOSE	LR128178 HOSE Radiator To Expansion Tank Bleed / From: LH000001 / To: NH908813	$55.76	1
8B081A	LR163783	HOSE	LR163783 HOSE Radiator To Expansion Tank Bleed / From: NH908814	$58.55	1
8B081B	LR115227	HOSE - OVERFLOW CONTAINER	LR115227 HOSE - OVERFLOW CONTAINER From Engine To Expansion Tank / From: LH000001 / To: LH850862	$45.72	1
8B081B	LR137723	HOSE - OVERFLOW CONTAINER	LR137723 HOSE - OVERFLOW CONTAINER From Engine To Expansion Tank / From: LH850863 / To: NH908813	$48.14	1
8B081B	LR163785	HOSE - OVERFLOW CONTAINER	LR163785 HOSE - OVERFLOW CONTAINER From Engine To Expansion Tank / From: NH908814	$54.59	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: LH000001	$47.02	1
14A411	LR135274	WIRING - TRACTION BATTERY	LR135274 WIRING - TRACTION BATTERY For Sensor / From: LH000001	$53.14	1
18B402	104123694	HOSE - TURBOCHARGER TO INTERCOOLER	104123694 HOSE - TURBOCHARGER TO INTERCOOLER From Intercooler To Water Pump / From: LH000001	$28.28	1
7890	LR114664	HOSE - OIL COOLER	LR114664 HOSE - OIL COOLER Transmission Cooler Line / From: LH000001	$77.08	1
8260A	LR115021	HOSE - RADIATOR	LR115021 HOSE - RADIATOR Radiator, Upper / From: LH000001	$94.49	1
8260B	LR115225	HOSE - RADIATOR	LR115225 HOSE - RADIATOR LH, Auxiliary Radiator / From: LH000001 / To: LH853088	$52.55	1
8260B	LR136866	HOSE - RADIATOR	LR136866 HOSE - RADIATOR LH, Auxiliary Radiator / From: LH853089	$52.91	1
8260C	LR115222	HOSE - WATER	LR115222 HOSE - WATER Auxiliary Radiator, Outlet / From: LH000001	$87.10	1
8276	LR115218	HOSE - WATER	LR115218 HOSE - WATER Intercooler To Radiator / From: LH000001	$68.44	1
8286	LR115066	HOSE - RADIATOR	LR115066 HOSE - RADIATOR Lower, Radiator / From: LH000001	$95.06	1
8290	LR115029	TUBE	LR115029 TUBE Radiator Coolant Reservoir / From: LH000001	$84.74	1
