Name: Air Cleaner (2.0L AJ20P4 Petrol Mid PTA, Changsu (China))
Rating: 5.0 (1 reviews)

View All

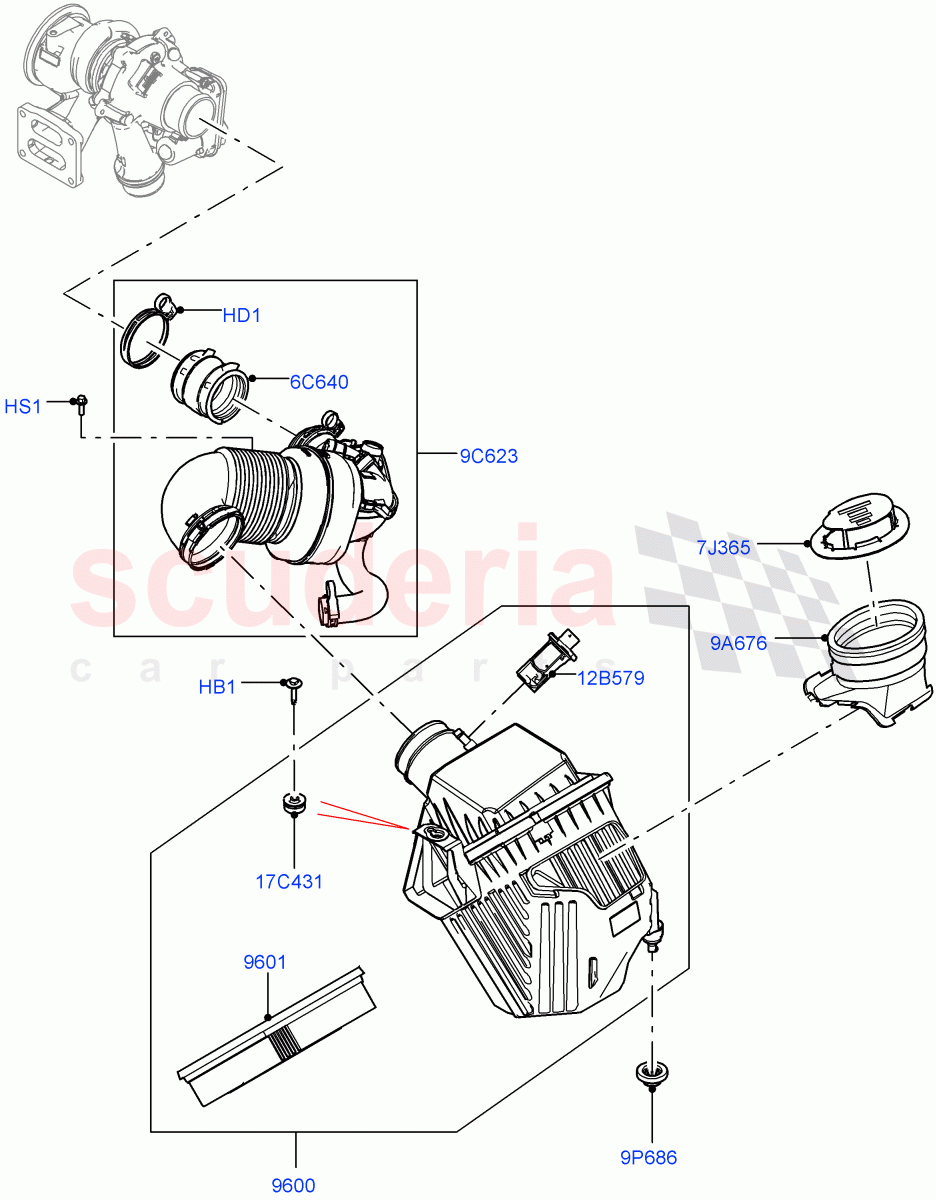

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR030371	BOLT	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090633	CLAMP - HOSE	$5.78	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094063	CLEANER - AIR	$528.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071942	ELEMENT - AIR CLEANER	$58.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092041	CONNECTOR - INLET	$109.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125597	GUIDE - DIRTY AIR DUCT	$23.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115769	TUBE - AIR CLEANER INTAKE	$71.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126502	DUCT - AIR INTAKE	$252.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	$4.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR093998	SENSOR - MASS AIR FLOW	$187.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060069	INSULATOR - AIR CLEANER HOUSING	$14.21	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR030371	BOLT	LR030371 BOLT Bolt And Washer, Hexagonal Head, M6 x 25MM / From: KG446857	$1.31	1
HD1	LR090633	CLAMP - HOSE	LR090633 CLAMP - HOSE From: KG446857	$5.78	2
HS1	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Air Duct, Hexagonal Head, M6 X 20MM / From: KG446857 IN STOCK	$0.69	1
6C640	LR092041	CONNECTOR - INLET	LR092041 CONNECTOR - INLET From: KG446857	$109.74	1
7J365	LR125597	GUIDE - DIRTY AIR DUCT	LR125597 GUIDE - DIRTY AIR DUCT From: KG446857	$23.93	1
9A676	LR115769	TUBE - AIR CLEANER INTAKE	LR115769 TUBE - AIR CLEANER INTAKE From: KG446857	$71.45	1
9C623	LR126502	DUCT - AIR INTAKE	LR126502 DUCT - AIR INTAKE From: KG446857	$252.13	1
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING IN STOCK	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown / From: KG446857 IN STOCK	$4.74	2
12B579	LR093998	SENSOR - MASS AIR FLOW	LR093998 SENSOR - MASS AIR FLOW Mass Air Flow Sensor / From: KG446857	$187.37	1
17C431	LR060069	INSULATOR - AIR CLEANER HOUSING	LR060069 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown / From: KG446857	$14.21	1
9600	LR094063	CLEANER - AIR	LR094063 CLEANER - AIR From: KG446857	$528.00	1
9601	LR071942	ELEMENT - AIR CLEANER IN STOCK	LR071942 ELEMENT - AIR CLEANER From: KG446857 IN STOCK	$58.58	1

Air Cleaner (2.0L Aj20P4 Petrol Mid Pta, Changsu (China))

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]
