Cylinder Head (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Cylinder Head (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L...

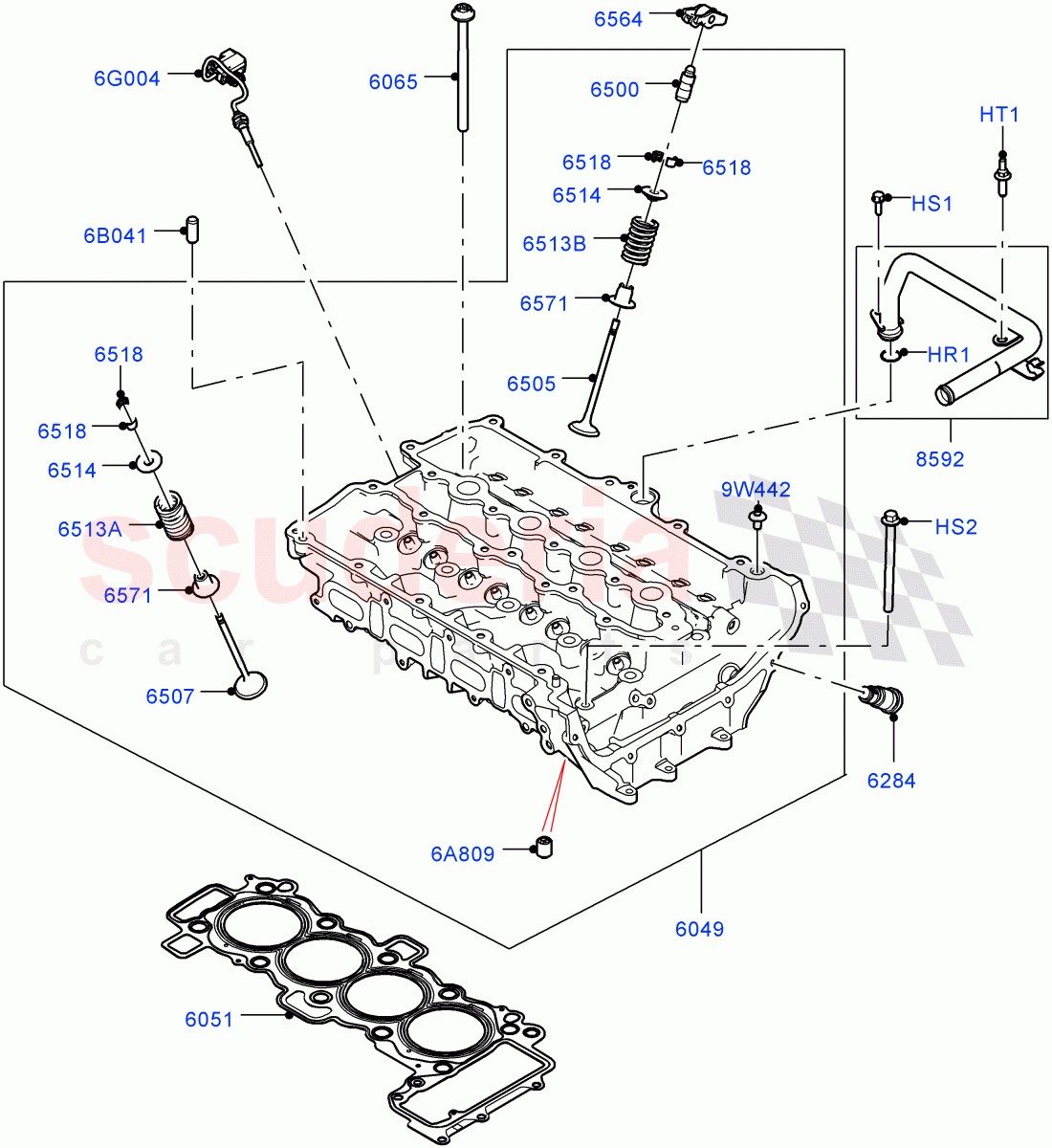

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123820	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073738	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094453	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091530	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091486	GASKET-CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091487	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091743	TENSIONER - TIMING BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073777	TAPPET - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134473	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124745	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091753	RETAINER - VALVE SPRING - UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073774	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091754	ARM - VALVE ROCKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091757	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094433	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091751	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091752	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073651	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074069	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073685	TUBE - DRAIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR123820	O-RING	LR123820 O-RING Between Cylinder Head And Coolant Inlet Pipe, Elbow Connector / From: HG379388	-	1	Enquire
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM / From: HG379388	-	1	Enquire
HS2	LR073738	SCREW	LR073738 SCREW M8 x 100MM / From: HG379388	-	1	Enquire
HT1	LR094453	STUD	LR094453 STUD M8 X 25MM + M6 X 15MM / From: HG379388	-	1	Enquire
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK From: HG379388	-	1	Enquire
6B041	LR073651	DOWEL - PIN	LR073651 DOWEL - PIN 8 x 19MM / From: HG379388	-	2	Enquire
6G004	LR074069	SENSOR - CYLINDER HEAD TEMPERATURE	LR074069 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: HG379388	-	1	Enquire
9W442	LR073685	TUBE - DRAIN	LR073685 TUBE - DRAIN Drain / From: HG379388	-	1	Enquire
6049	LR091530	CYLINDER HEAD	LR091530 CYLINDER HEAD With Valves / From: HG379388	-	1	Enquire
6051	LR091486	GASKET-CYLINDER HEAD	LR091486 GASKET-CYLINDER HEAD From: HG379388	-	1	Enquire
6065	LR091487	BOLT - HEX.HEAD	LR091487 BOLT - HEX.HEAD From: HG379388	-	10	Enquire
6284	LR091743	TENSIONER - TIMING BELT	LR091743 TENSIONER - TIMING BELT Secondary / From: HG379388	-	1	Enquire
6500	LR073777	TAPPET - VALVE	LR073777 TAPPET - VALVE From: HG379388	-	8	Enquire
6505	LR134473	VALVE - EXHAUST	LR134473 VALVE - EXHAUST From: HG379388	-	8	Enquire
6507	LR124745	VALVE - INLET	LR124745 VALVE - INLET From: HG379388	-	8	Enquire
6513A	LR091751	SPRING - VALVE	LR091751 SPRING - VALVE Intake Side / From: HG379388	-	8	Enquire
6513B	LR091752	SPRING - VALVE	LR091752 SPRING - VALVE EXHAUST SIDE / From: HG379388	-	8	Enquire
6514	LR091753	RETAINER - VALVE SPRING - UPPER	LR091753 RETAINER - VALVE SPRING - UPPER From: HG379388	-	16	Enquire
6518	LR073774	COLLET - VALVE SPRING RETAINER	LR073774 COLLET - VALVE SPRING RETAINER From: HG379388	-	32	Enquire
6564	LR091754	ARM - VALVE ROCKER	LR091754 ARM - VALVE ROCKER From: HG379388	-	8	Enquire
6571	LR091757	SEAL - VALVE STEM	LR091757 SEAL - VALVE STEM From: HG379388	-	16	Enquire
8592	LR094433	TUBE - WATER OUTLET	LR094433 TUBE - WATER OUTLET From: HG379388	-	1	Enquire
