Console - Floor (Internal Components) (Halewood (Uk)) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Console - Floor (Internal Components) (Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR027626 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR098196 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR044894 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR036724 NUT - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR161214 CAP - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR007312 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500820 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR127563 MOULDING - FLOOR CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR027190 BUMP STOP - FLOOR CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR032137 BUMPER - FLOOR CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR135197 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR117978 BRACKET - CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR127482 CONSOLE - CENTRE FLOOR Enquire To Order
LR154753 CONSOLE - CENTRE FLOOR Enquire To Order
View All

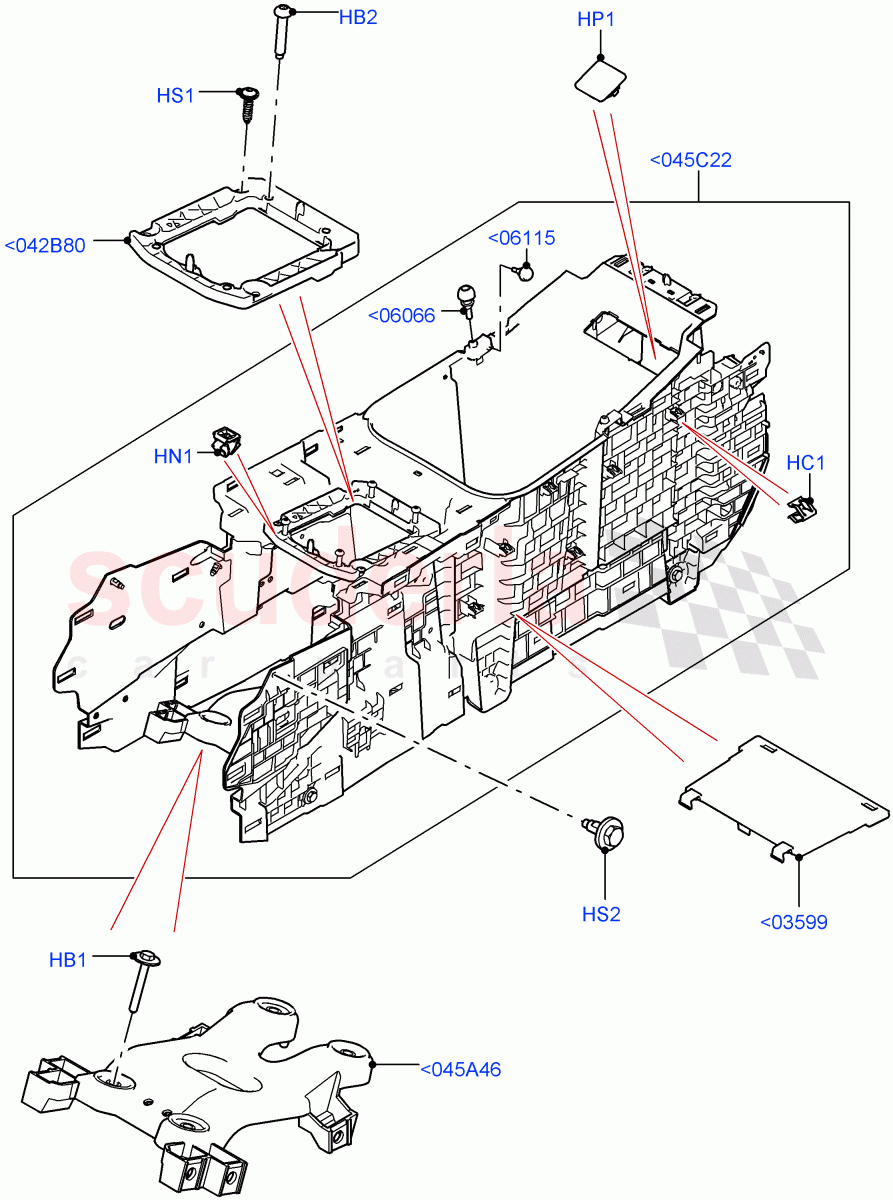

Console - Floor (Internal Components) (Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<042B80 LR135197
BRACKET - SUPPORT
9 Speed Auto Trans 9HP50 / From: LH000001 		- 1 Enquire
<045A46 LR117978
BRACKET - CONSOLE
From: LH000001 		- 1 Enquire
<045C22 LR127482
CONSOLE - CENTRE FLOOR
From: LH000001 / To: LH999999 		- 1 Enquire
<045C22 LR154753
CONSOLE - CENTRE FLOOR
From: MH000001 / To: NH905990 		- 1 Enquire
<03599 LR127563
MOULDING - FLOOR CONSOLE
Access Panel / From: LH000001 		- 1 Enquire
<06066 LR027190
BUMP STOP - FLOOR CONSOLE
From: LH000001 		- 2 Enquire
<06115 LR032137
BUMPER - FLOOR CONSOLE
From: LH000001 		- 1 Enquire
HB1 LR027626
BOLT
9 Speed Auto Trans 9HP50 / M6 X 47.5 / From: LH000001 		- 4 Enquire
HB2 LR098196
BOLT
9 Speed Auto Trans 9HP50 / M5 x 25MM / From: LH000001 		- 4 Enquire
HC1 LR044894
CLIP
0.8 - 2.5 / From: LH000001 		- 12 Enquire
HN1 LR036724
NUT - SPRING
M4.2 / From: LH000001 		- 4 Enquire
HP1 LR161214
CAP - BLANKING
From: PH000001 		- 1 Enquire
HS1 LR007312
SCREW
9 Speed Auto Trans 9HP50 / 4.2 X 19MM / From: LH000001 		- 4 Enquire
HS2 RYG500820
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: LH000001 / To: NH906872 		- 14 Enquire
