Heater & Air Conditioning Controls (Halewood (Uk)) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Heater & Air Conditioning Controls (Halewood (UK)) ((V) TOKH999999)

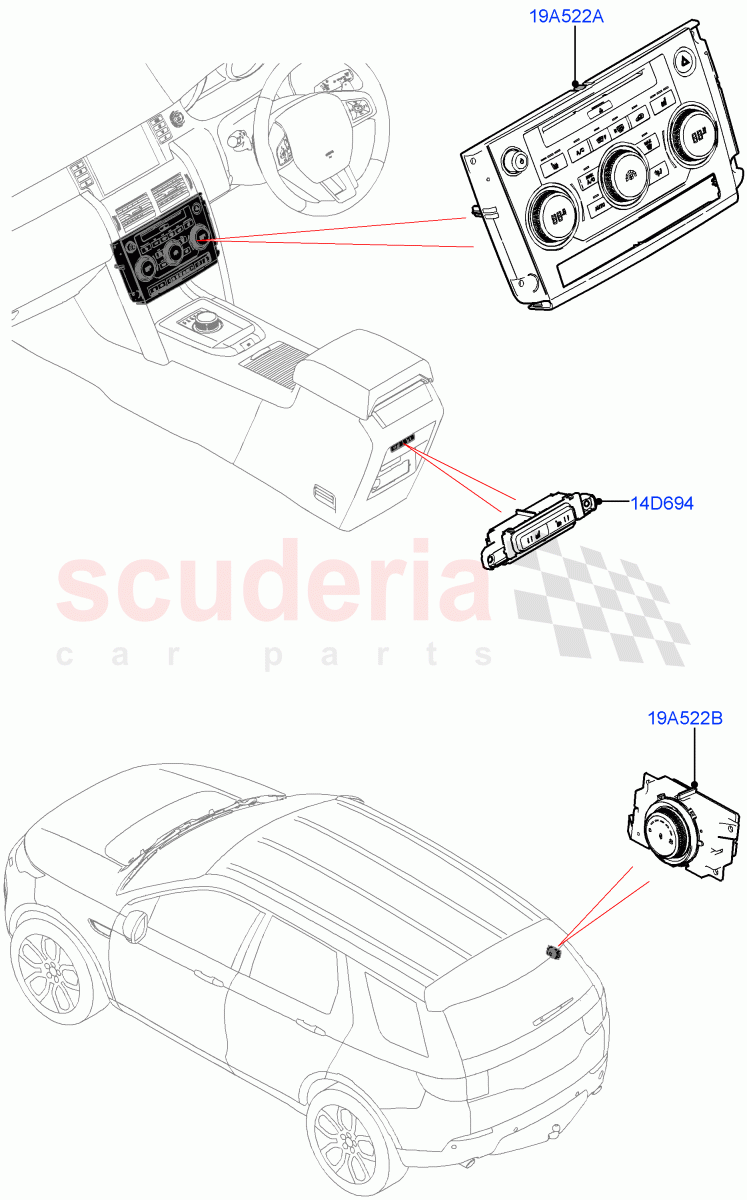

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR059783 SWITCH - HEATABLE SEATS Enquire To Order
Photo Part No Description Price (each) Stock
LR066843 HEATER CONTROL Enquire To Order
LR066844 HEATER CONTROL Enquire To Order
LR066845 HEATER CONTROL Enquire To Order
...and 86 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060913 HEATER CONTROL Enquire To Order
View All
Heater & Air Conditioning Controls (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14D694 LR059783
SWITCH - HEATABLE SEATS
Heated/Cooled Front - Heated Rear / To: KH999999 		- 1 Enquire
19A522A LR066843
HEATER CONTROL
Less Heated Windscreen, Less Seat Temperature Control, Midline Sound System, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066844
HEATER CONTROL
Heated Seats - Drivers/Passengers, Less Heated Windscreen, Mid Performance Sound System, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066845
HEATER CONTROL
Mid Performance Sound System, With Heated Seats - Front/Rear, With Heated Windscreen, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066846
HEATER CONTROL
Cooled Driver And Passenger Seats, Mid Performance Sound System, With Heated Windscreen, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066847
HEATER CONTROL
Less Seat Temperature Control, Standard Audio (Base), With Heated Windscreen, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066848
HEATER CONTROL
Less Heated Windscreen, Less Seat Temperature Control, Premium Audio 1280 W, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066849
HEATER CONTROL
Less Heated Windscreen, Premium Audio 1280 W, With Heated Seats - Front/Rear, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066850
HEATER CONTROL
Hi Line Audio System - 600 W, With Heated Seats - Front/Rear, With Heated Windscreen, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066851
HEATER CONTROL
Cooled Driver And Passenger Seats, Premium Audio 1280 W, With Heated Windscreen, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066852
HEATER CONTROL
Hi Line Audio System - 600 W, Less Seat Temperature Control, With Heated Windscreen, With Manual Air Conditioning / To: GH572411 		- 1 Enquire
19A522A LR066853
HEATER CONTROL
ATC Air Conditioning, Less Seat Temperature Control, Midline Sound System, With Heated Windscreen / To: GH572411 		- 1 Enquire
19A522A LR066854
HEATER CONTROL
ATC Air Conditioning, Mid Performance Sound System, With Heated Seats - Front/Rear, With Heated Windscreen / To: GH572411 		- 1 Enquire
19A522A LR066855
HEATER CONTROL
ATC Air Conditioning, Heated/Cooled Front - Heated Rear, Midline Sound System, With Heated Windscreen / To: GH572411 		- 1 Enquire
19A522A LR066856
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Less Seat Temperature Control, Standard Audio (Base) / To: GH572411 		- 1 Enquire
19A522A LR066857
HEATER CONTROL
ATC Air Conditioning, Cooled Driver And Passenger Seats, Less Heated Windscreen, Midline Sound System / To: GH572411 		- 1 Enquire
19A522A LR066858
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Midline Sound System, With Heated Seats - Front/Rear / To: GH572411 		- 1 Enquire
19A522A LR066859
HEATER CONTROL
ATC Air Conditioning, Hi Line Audio System - 600 W, Less Seat Temperature Control, With Heated Windscreen / To: GH572411 		- 1 Enquire
19A522A LR066860
HEATER CONTROL
ATC Air Conditioning, Heated Seats - Drivers/Passengers, Hi Line Audio System - 600 W, With Heated Windscreen / To: GH572411 		- 1 Enquire
19A522A LR066861
HEATER CONTROL
ATC Air Conditioning, Heated/Cooled Front - Heated Rear, Premium Audio 1280 W, With Heated Windscreen / To: GH572411 		- 1 Enquire
19A522A LR066863
HEATER CONTROL
ATC Air Conditioning, Heated/Cooled Front - Heated Rear, Less Heated Windscreen, Premium Audio 1280 W / To: GH572411 		- 1 Enquire
19A522A LR066864
HEATER CONTROL
ATC Air Conditioning, Heated Seats - Drivers/Passengers, Hi Line Audio System - 600 W, Less Heated Windscreen / To: GH572411 		- 1 Enquire
19A522A LR066862
HEATER CONTROL
ATC Air Conditioning, Hi Line Audio System - 600 W, Less Heated Windscreen, Less Seat Temperature Control / To: GH572411 		- 1 Enquire
19A522A LR084392
HEATER CONTROL
ATC Air Conditioning, Cooled Driver And Passenger Seats, Mid Performance Sound System, With Heated Windscreen / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084398
HEATER CONTROL
ATC Air Conditioning, Cooled Driver And Passenger Seats, Premium Audio 1280 W, With Heated Windscreen / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084391
HEATER CONTROL
ATC Air Conditioning, Heated Seats - Drivers/Passengers, Mid Performance Sound System, With Heated Windscreen / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084397
HEATER CONTROL
ATC Air Conditioning, Heated Seats - Drivers/Passengers, Hi Line Audio System - 600 W, With Heated Windscreen / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084395
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Midline Sound System, With Heated Seats - Front/Rear / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR083825
HEATER CONTROL
Less Heated Windscreen, Mid Performance Sound System, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083826
HEATER CONTROL
Less Heated Windscreen, Standard Audio (Base), With Heated Seats - Front/Rear, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083829
HEATER CONTROL
Midline Sound System, With Heated Seats - Front/Rear, With Heated Windscreen, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083830
HEATER CONTROL
Heated/Cooled Front - Heated Rear, Mid Performance Sound System, With Heated Windscreen, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083831
HEATER CONTROL
Less Seat Temperature Control, Mid Performance Sound System, With Heated Windscreen, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083832
HEATER CONTROL
Hi Line Audio System - 600 W, Less Heated Windscreen, Less Seat Temperature Control, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083834
HEATER CONTROL
Heated Seats - Drivers/Passengers, Less Heated Windscreen, Premium Audio 1280 W, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083835
HEATER CONTROL
Heated Seats - Drivers/Passengers, Hi Line Audio System - 600 W, With Heated Windscreen, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083836
HEATER CONTROL
Heated/Cooled Front - Heated Rear, Hi Line Audio System - 600 W, With Heated Windscreen, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083837
HEATER CONTROL
Hi Line Audio System - 600 W, Less Seat Temperature Control, With Heated Windscreen, With Manual Air Conditioning / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083839
HEATER CONTROL
ATC Air Conditioning, Less Seat Temperature Control, Mid Performance Sound System, With Heated Windscreen / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083840
HEATER CONTROL
ATC Air Conditioning, Midline Sound System, With Heated Seats - Front/Rear, With Heated Windscreen / From: HH000001 / To: HH720720 		- 1 Enquire
19A522A LR083841
HEATER CONTROL
ATC Air Conditioning, Heated/Cooled Front - Heated Rear, Mid Performance Sound System, With Heated Windscreen / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083843
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Less Seat Temperature Control, Midline Sound System / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083845
HEATER CONTROL
ATC Air Conditioning, Cooled Driver And Passenger Seats, Less Heated Windscreen, Midline Sound System / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083846
HEATER CONTROL
ATC Air Conditioning, Heated Seats - Drivers/Passengers, Less Heated Windscreen, Mid Performance Sound System / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083847
HEATER CONTROL
ATC Air Conditioning, Hi Line Audio System - 600 W, Less Seat Temperature Control, With Heated Windscreen / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083848
HEATER CONTROL
ATC Air Conditioning, Hi Line Audio System - 600 W, With Heated Seats - Front/Rear, With Heated Windscreen / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083849
HEATER CONTROL
ATC Air Conditioning, Heated/Cooled Front - Heated Rear, Hi Line Audio System - 600 W, With Heated Windscreen / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083850
HEATER CONTROL
ATC Air Conditioning, Heated/Cooled Front - Heated Rear, Hi Line Audio System - 600 W, Less Heated Windscreen / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083851
HEATER CONTROL
ATC Air Conditioning, Heated Seats - Drivers/Passengers, Less Heated Windscreen, Premium Audio 1280 W / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR083852
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Less Seat Temperature Control, Premium Audio 1280 W / From: HH000001 / To: HH999999 		- 1 Enquire
19A522A LR084380
HEATER CONTROL
Less Heated Windscreen, Less Seat Temperature Control, Standard Audio (Base), With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084381
HEATER CONTROL
Heated Seats - Drivers/Passengers, Less Heated Windscreen, Mid Performance Sound System, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084382
HEATER CONTROL
Heated Seats - Drivers/Passengers, Mid Performance Sound System, With Heated Windscreen, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084383
HEATER CONTROL
Cooled Driver And Passenger Seats, Standard Audio (Base), With Heated Windscreen, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084384
HEATER CONTROL
Less Seat Temperature Control, Standard Audio (Base), With Heated Windscreen, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084385
HEATER CONTROL
Less Heated Windscreen, Less Seat Temperature Control, Premium Audio 1280 W, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084386
HEATER CONTROL
Heated Seats - Drivers/Passengers, Hi Line Audio System - 600 W, Less Heated Windscreen, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084387
HEATER CONTROL
Hi Line Audio System - 600 W, With Heated Seats - Front/Rear, With Heated Windscreen, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084388
HEATER CONTROL
Heated/Cooled Front - Heated Rear, Hi Line Audio System - 600 W, With Heated Windscreen, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084389
HEATER CONTROL
Less Seat Temperature Control, Premium Audio 1280 W, With Heated Windscreen, With Manual Air Conditioning / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084390
HEATER CONTROL
ATC Air Conditioning, Less Seat Temperature Control, Mid Performance Sound System, With Heated Windscreen / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084393
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Less Seat Temperature Control, Standard Audio (Base) / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084394
HEATER CONTROL
ATC Air Conditioning, Cooled Driver And Passenger Seats, Less Heated Windscreen, Standard Audio (Base) / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084396
HEATER CONTROL
ATC Air Conditioning, Hi Line Audio System - 600 W, Less Seat Temperature Control, With Heated Windscreen / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084399
HEATER CONTROL
ATC Air Conditioning, Heated/Cooled Front - Heated Rear, Less Heated Windscreen, Premium Audio 1280 W / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084400
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Premium Audio 1280 W, With Heated Seats - Front/Rear / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR084401
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Less Seat Temperature Control, Premium Audio 1280 W / From: GH572412 / To: GH999999 		- 1 Enquire
19A522A LR106302
HEATER CONTROL
Less Seat Temperature Control, Midline Sound System, With Heated Windscreen, With Manual Air Conditioning / From: HH000001 		- 1 Enquire
19A522A LR107470
HEATER CONTROL
Less Heated Windscreen, Less Seat Temperature Control, Standard Audio (Base), With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107463
HEATER CONTROL
Heated Seats - Drivers/Passengers, Less Heated Windscreen, Mid Performance Sound System, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107464
HEATER CONTROL
Low Line Audio System - 400W, With Heated Seats - Front/Rear, With Heated Windscreen, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107471
HEATER CONTROL
Cooled Driver And Passenger Seats, Mid Performance Sound System, With Heated Windscreen, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107472
HEATER CONTROL
Less Seat Temperature Control, Standard Audio (Base), With Heated Windscreen, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107465
HEATER CONTROL
Hi Line Audio System - 600 W, Less Heated Windscreen, Less Seat Temperature Control, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107466
HEATER CONTROL
Hi Line Audio System - 600 W, Less Heated Windscreen, With Heated Seats - Front/Rear, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107467
HEATER CONTROL
Premium Audio 1280 W, With Heated Seats - Front/Rear, With Heated Windscreen, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107468
HEATER CONTROL
Cooled Driver And Passenger Seats, Hi Line Audio System - 600 W, With Heated Windscreen, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107469
HEATER CONTROL
Hi Line Audio System - 600 W, Less Seat Temperature Control, With Heated Windscreen, With Manual Air Conditioning / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107473
HEATER CONTROL
Less Seat Temperature Control, Mid Performance Sound System, With Front Comfort Air Con (IHKA), With Heated Windscreen / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107474
HEATER CONTROL
ATC Air Conditioning, Heated/Cooled Front - Heated Rear, Standard Audio (Base), With Heated Windscreen / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107475
HEATER CONTROL
Less Heated Windscreen, Less Seat Temperature Control, Midline Sound System, With ATC Air Con & Row 2 Vents / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107476
HEATER CONTROL
Cooled Driver And Passenger Seats, Less Heated Windscreen, Low Line Audio System - 400W, With Front Comfort Air Con (IHKA) / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107477
HEATER CONTROL
Heated Seats - Drivers/Passengers, Less Heated Windscreen, Midline Sound System, With Front Comfort Air Con (IHKA) / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107478
HEATER CONTROL
Hi Line Audio System - 600 W, Less Seat Temperature Control, With Front Comfort Air Con (IHKA), With Heated Windscreen / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107479
HEATER CONTROL
Premium Audio 1280 W, With ATC Air Con & Row 2 Vents, With Heated Seats - Front/Rear, With Heated Windscreen / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107480
HEATER CONTROL
Heated/Cooled Front - Heated Rear, Hi Line Audio System - 600 W, With ATC Air Con & Row 2 Vents, With Heated Windscreen / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107481
HEATER CONTROL
ATC Air Conditioning, Cooled Driver And Passenger Seats, Hi Line Audio System - 600 W, Less Heated Windscreen / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107482
HEATER CONTROL
Less Heated Windscreen, Premium Audio 1280 W, With ATC Air Con & Row 2 Vents, With Heated Seats - Front/Rear / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR107483
HEATER CONTROL
Hi Line Audio System - 600 W, Less Heated Windscreen, Less Seat Temperature Control, With ATC Air Con & Row 2 Vents / From: JH000001 / To: KH999999 		- 1 Enquire
19A522A LR106726
HEATER CONTROL
Heated Seats - Drivers/Passengers, Standard Audio (Base), With ATC Air Con & Row 2 Vents, With Heated Windscreen / From: HH720721 / To: KH999999 		- 1 Enquire
19A522B LR060913
HEATER CONTROL
Climate Control - Chiller Unit, With 7 Seat Configuration / To: KH999999 		- 1 Enquire
