Fuel Tank & Related Parts (2.0L Aj21D4 Diesel Mid, Halewood (Uk)) ((V) Frommh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Fuel Tank & Related Parts (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR115125 RETAINER - RIVET Enquire To Order
Photo Part No Description Price (each) Stock
LR139186 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR138861 CAP - FUEL TANK FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR126525 PIPE - FUEL FILLER Enquire To Order
LR126553 PIPE - FUEL FILLER Enquire To Order
LR126557 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR126524 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR126572 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR126505 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR126562 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR126577 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR126578 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR139070 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR139403 SHIELD Enquire To Order
View All

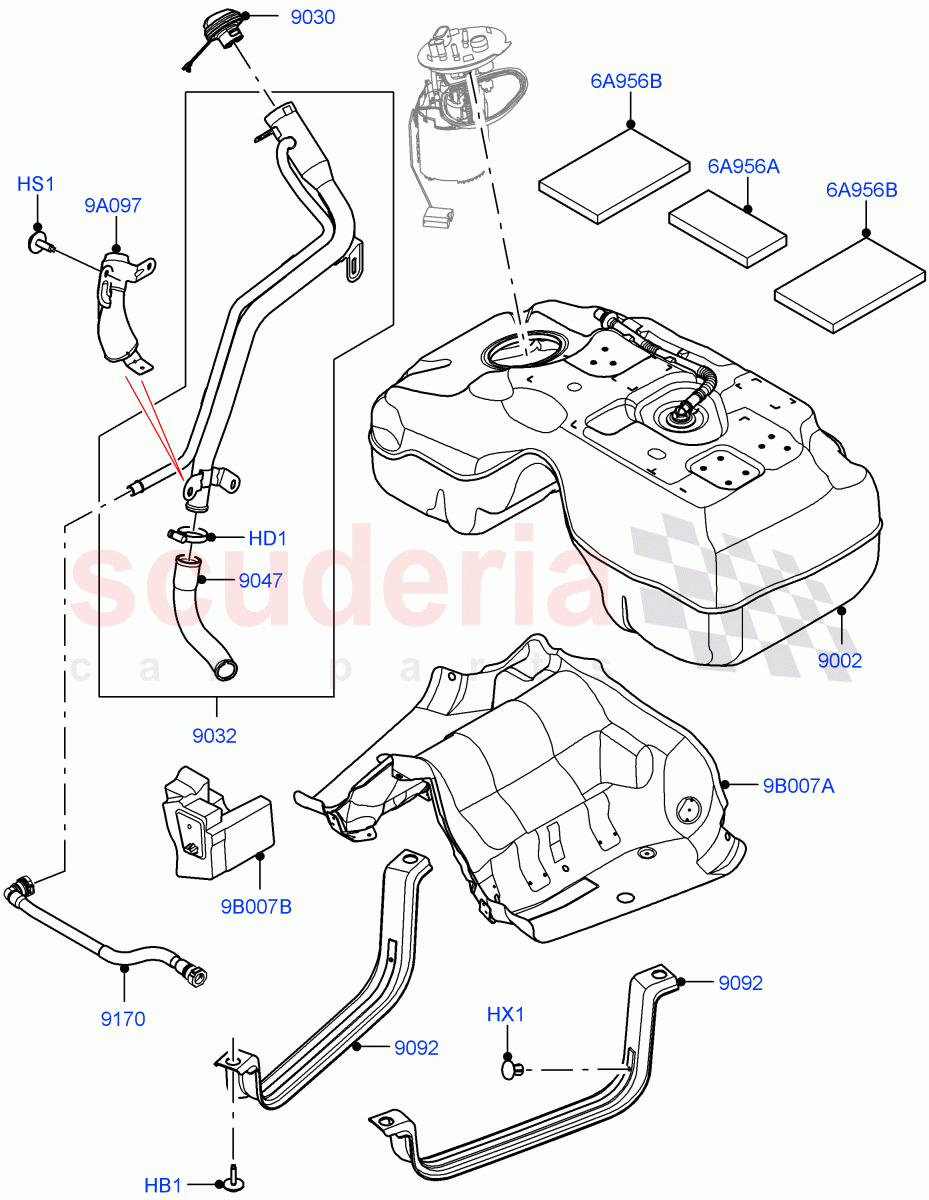

Fuel Tank & Related Parts (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM / From: MH000001 		- 4 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: MH000001 		- 1 Enquire
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex, Shield / From: MH000001 		- 3 Enquire
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: MH000001 		- 2 Enquire
6A956A LR126577
FOAM PAD - ENERGY ABSORBING
From: MH000001 		- 1 Enquire
6A956B LR126578
FOAM PAD - ENERGY ABSORBING
From: MH000001 		- 2 Enquire
9A097 LR126562
SHIELD
Filler Pipe / From: MH000001 		- 1 Enquire
9B007A LR139070
SHIELD
Main / From: MH000001 		- 1 Enquire
9B007B LR139403
SHIELD
From: MH000001 		- 1 Enquire
9002 LR139186
TANK - FUEL
From: MH000001 		- 1 Enquire
9030 LR138861
CAP - FUEL TANK FILLER
From: MH000001 		- 1 Enquire
9032 LR126525
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: MH000001 		- 1 Enquire
9032 LR126553
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: MH000001 		- 1 Enquire
9032 LR126557
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: MH000001 		- 1 Enquire
9047 LR126524
HOSE - FILLER PIPE
From: MH000001 		- 1 Enquire
9092 LR126572
STRAP - FUEL TANK
RH/LH / From: MH000001 		- 2 Enquire
9170 LR126505
HOSE - VENT
From: MH000001 		- 1 Enquire
