Turbocharger (Lubrication And Cooling) (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

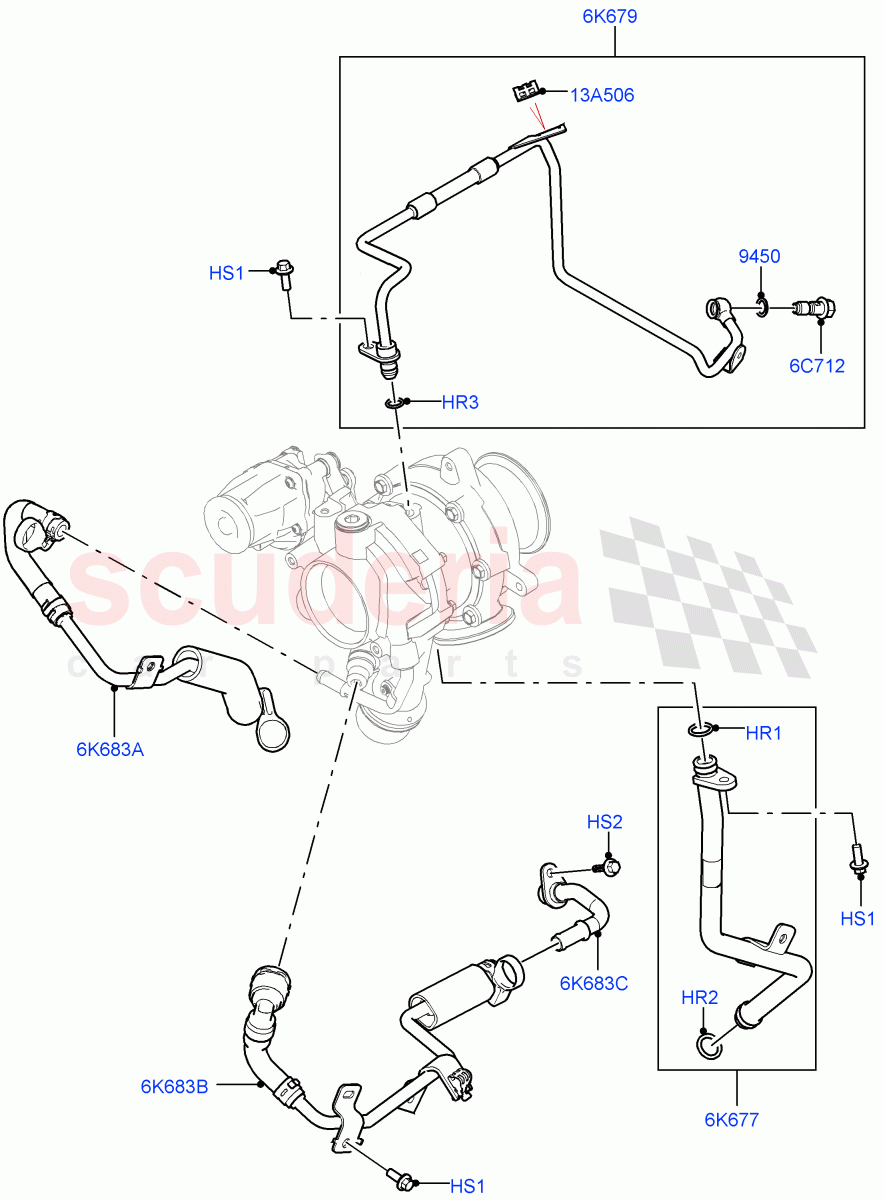

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Turbocharger (Lubrication And Cooling) (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139741	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139740	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139743	TUBE - OIL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139742	PIPE - OIL FEED	Enquire	To Order
	LR157911	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139803	CONNECTION - WATER	Enquire	To Order
	LR159994	CONNECTION - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139802	CONNECTION - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139934	TUBE - CONNECTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Upper / From: MH000001	-	1	Enquire
HR2	LR073688	O-RING	LR073688 O-RING 15 X 3MM, Lower / From: MH000001	-	1	Enquire
HR3	LR139741	O-RING	LR139741 O-RING	-	2	Enquire
HS1	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: MH000001	-	4	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: MH000001	-	1	Enquire
6C712	LR139740	BOLT - BANJO	LR139740 BOLT - BANJO From: MH000001	-	1	Enquire
6K677	LR139743	TUBE - OIL RETURN	LR139743 TUBE - OIL RETURN Cylinder Block / From: MH000001	-	1	Enquire
6K679	LR139742	PIPE - OIL FEED	LR139742 PIPE - OIL FEED From: MH000001 / To: MH894071	-	1	Enquire
6K679	LR157911	PIPE - OIL FEED	LR157911 PIPE - OIL FEED From: MH894072	-	1	Enquire
6K683A	LR139803	CONNECTION - WATER	LR139803 CONNECTION - WATER Hose Water Inlet To Turbocharger / From: MH000001 / To: MH898614	-	1	Enquire
6K683A	LR159994	CONNECTION - WATER	LR159994 CONNECTION - WATER Hose Water Inlet To Turbocharger / From: MH898615	-	1	Enquire
6K683B	LR139802	CONNECTION - WATER	LR139802 CONNECTION - WATER Hose Water Outlet From Turbocharger / From: MH000001	-	1	Enquire
6K683C	LR139934	TUBE - CONNECTING	LR139934 TUBE - CONNECTING Tube Water Outlet To Cylinder Block / From: MH000001	-	1	Enquire
13A506	YQR000050	CLIP - WIRING	YQR000050 CLIP - WIRING From: MH000001	-	1	Enquire
9450	LR073671	WASHER - COPPER	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt / From: MH000001	-	2	Enquire
