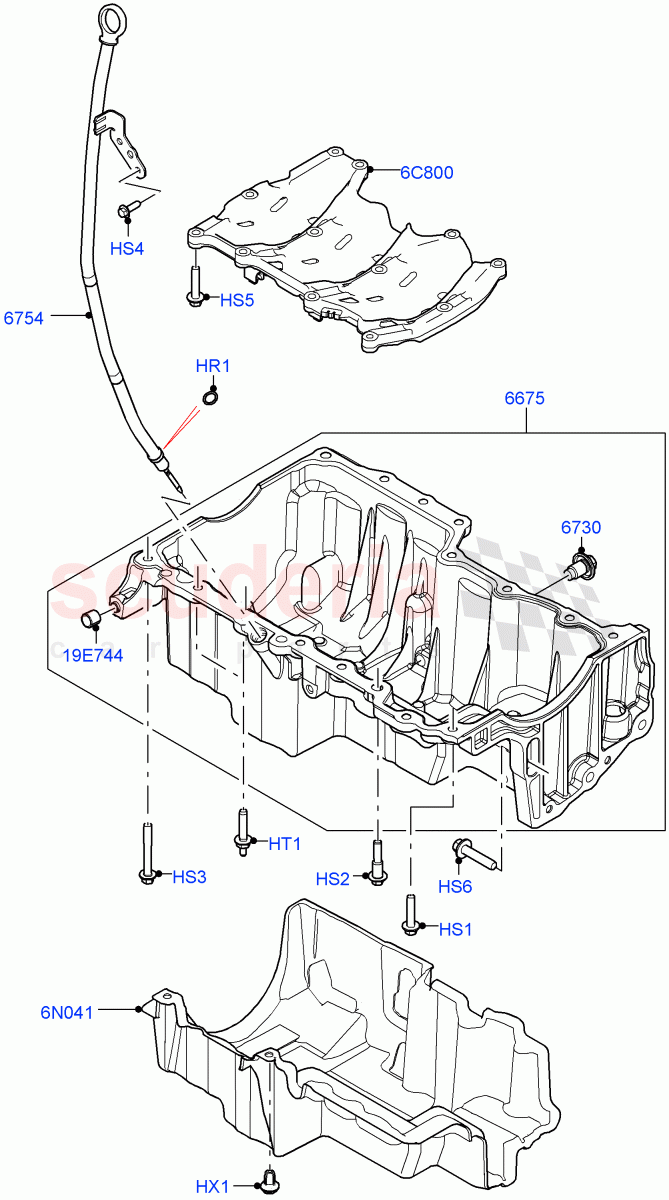

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089234	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154106	PAN - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154091	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140665	TUBE - OIL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137476	TRAY - WINDAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124586	INSULATOR - OIL SUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator / From: MH000001	-	1	Enquire
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: MH000001	-	11	Enquire
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm / From: MH000001	-	2	Enquire
HS3	LR074137	SCREW	LR074137 SCREW M8 x 60mm / From: MH000001	-	1	Enquire
HS4	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: MH000001	-	1	Enquire
HS5	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: MH000001	-	12	Enquire
HS6	LR073724	SCREW	LR073724 SCREW M8 X 25MM, Timing Chain Lower Cover / From: MH000001	-	1	Enquire
HT1	LR089234	STUD	LR089234 STUD M8 X 35 + M6 X 12 / From: MH000001	-	2	Enquire
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: MH000001	-	3	Enquire
6C800	LR137476	TRAY - WINDAGE	LR137476 TRAY - WINDAGE From: MH000001	-	1	Enquire
6N041	LR124586	INSULATOR - OIL SUMP	LR124586 INSULATOR - OIL SUMP Oil Pan / From: MH000001	-	1	Enquire
19E744	LR057802	DOWEL - PIN	LR057802 DOWEL - PIN Air Conditioning Compressor Bracket,	-	1	Enquire
6675	LR154106	PAN - ENGINE OIL	LR154106 PAN - ENGINE OIL From: MH000001	-	1	Enquire
6730	LR154091	PLUG - OIL DRAIN	LR154091 PLUG - OIL DRAIN From: MH000001	-	1	Enquire
6754	LR140665	TUBE - OIL LEVEL INDICATOR	LR140665 TUBE - OIL LEVEL INDICATOR From: MH000001	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Oil Pan/Oil Level Indicator (2.0L Aj21D4 Diesel Mid, Halewood (Uk)) ((V) Frommh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]
