Name: Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, Halewood (UK), With Diesel Exh Fluid Emission Tank) ((V) FROMMH000001)
Rating: 5.0 (1 reviews)

Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, Halewood (UK), With Diesel Exh Fluid Emission Tank) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, Halewood (UK), With...

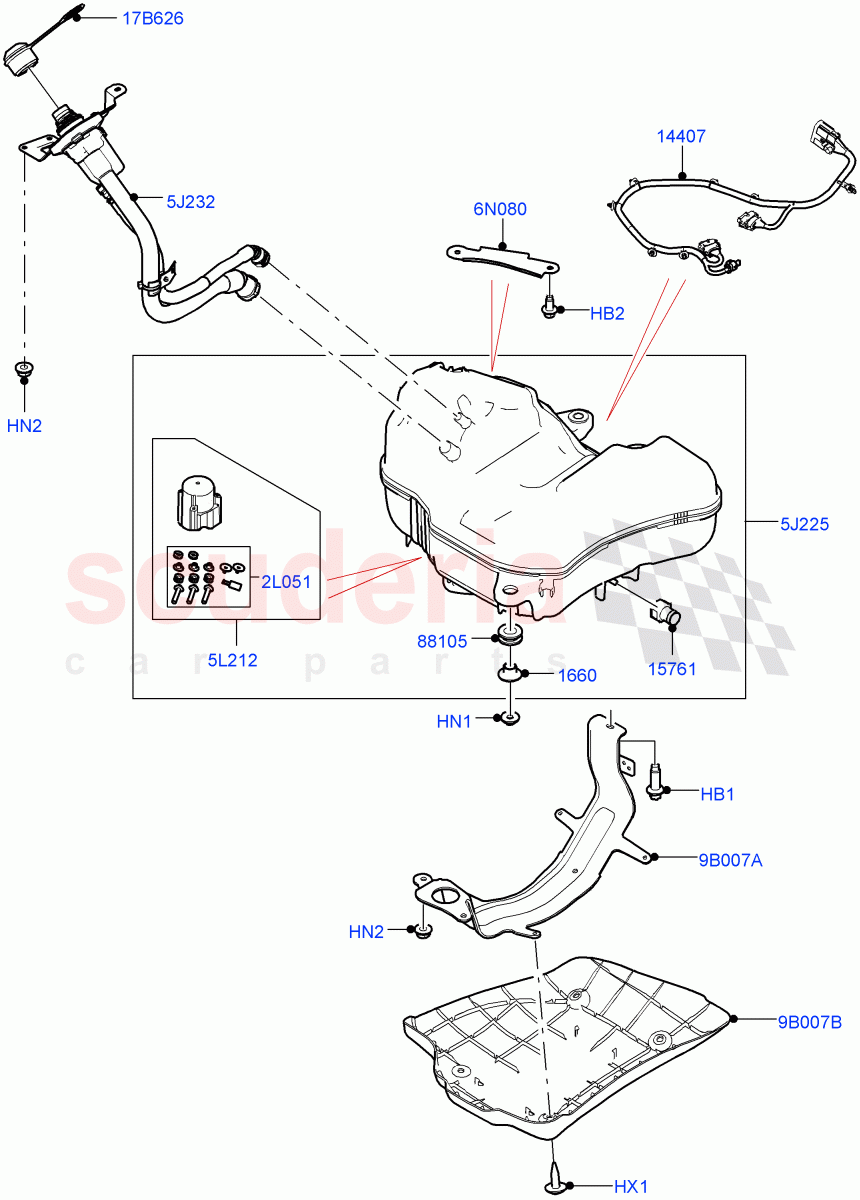

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR032819	BOLT AND WASHER - TORX HEAD	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500170	BOLT	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR115628	SPACER - STRIKER	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144020	WIRE - FUEL SENDER	$116.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115627	PLUG - BLANKING	$6.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085287	KIT - FIXING PARTS	$45.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139657	TANK - DIESEL EXHAUST FLUID	$983.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140690	HOSE - TANK	$114.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166698	PUMP - DIESEL EXHAUST FLUID	$451.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138834	REINFORCEMENT - REAR CROSSMEMBER	$25.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125664	BUSH - INSULATING	$3.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115637	CAP - FILLER	$13.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126501	SHIELD - FUEL TANK	$140.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126494	SHIELD - TANK	$44.94	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR032819	BOLT AND WASHER - TORX HEAD	LR032819 BOLT AND WASHER - TORX HEAD M8 X 20MM / From: MH000001	$1.19	1
HB2	RYG500170	BOLT	RYG500170 BOLT M8 X 14MM / From: MH000001	$0.42	1
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer / From: MH000001	$0.63	4
HN2	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: MH000001 IN STOCK	$1.45	5
HX1	RYQ500070	PIN - RETAINING IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin / From: MH000001 IN STOCK	$1.45	4
2L051	LR085287	KIT - FIXING PARTS	LR085287 KIT - FIXING PARTS Diesel Exhaust Fluid Pump / From: MH000001	$45.18	1
5J225	LR139657	TANK - DIESEL EXHAUST FLUID	LR139657 TANK - DIESEL EXHAUST FLUID From: MH000001	$983.63	1
5J232	LR140690	HOSE - TANK	LR140690 HOSE - TANK From: MH000001	$114.23	1
5L212	LR166698	PUMP - DIESEL EXHAUST FLUID	LR166698 PUMP - DIESEL EXHAUST FLUID Kit Includes Fitting Parts, Service Kit / From: MH000001	$451.38	1
6N080	LR138834	REINFORCEMENT - REAR CROSSMEMBER	LR138834 REINFORCEMENT - REAR CROSSMEMBER From: MH000001	$25.16	1
9B007A	LR126501	SHIELD - FUEL TANK	LR126501 SHIELD - FUEL TANK Upper / From: MH000001	$140.00	1
9B007B	LR126494	SHIELD - TANK	LR126494 SHIELD - TANK Lower / From: MH000001	$44.94	1
17B626	LR115637	CAP - FILLER	LR115637 CAP - FILLER From: MH000001	$13.99	1
1660	LR115628	SPACER - STRIKER	LR115628 SPACER - STRIKER From: MH000001	$7.33	4
14407	LR144020	WIRE - FUEL SENDER	LR144020 WIRE - FUEL SENDER Diesel Exhaust Fluid Pump / From: MH000001	$116.18	1
15761	LR115627	PLUG - BLANKING	LR115627 PLUG - BLANKING From: MH000001	$6.05	1
88105	LR125664	BUSH - INSULATING	LR125664 BUSH - INSULATING From: MH000001	$3.48	4

Exhaust Fluid Injection System (Tank And Filler) (2.0L Aj21D4 Diesel Mid, Halewood (Uk), With...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ21D4 Diesel Mid, Halewood (UK), With...
