Cylinder Head Cover (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Cylinder Head Cover (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

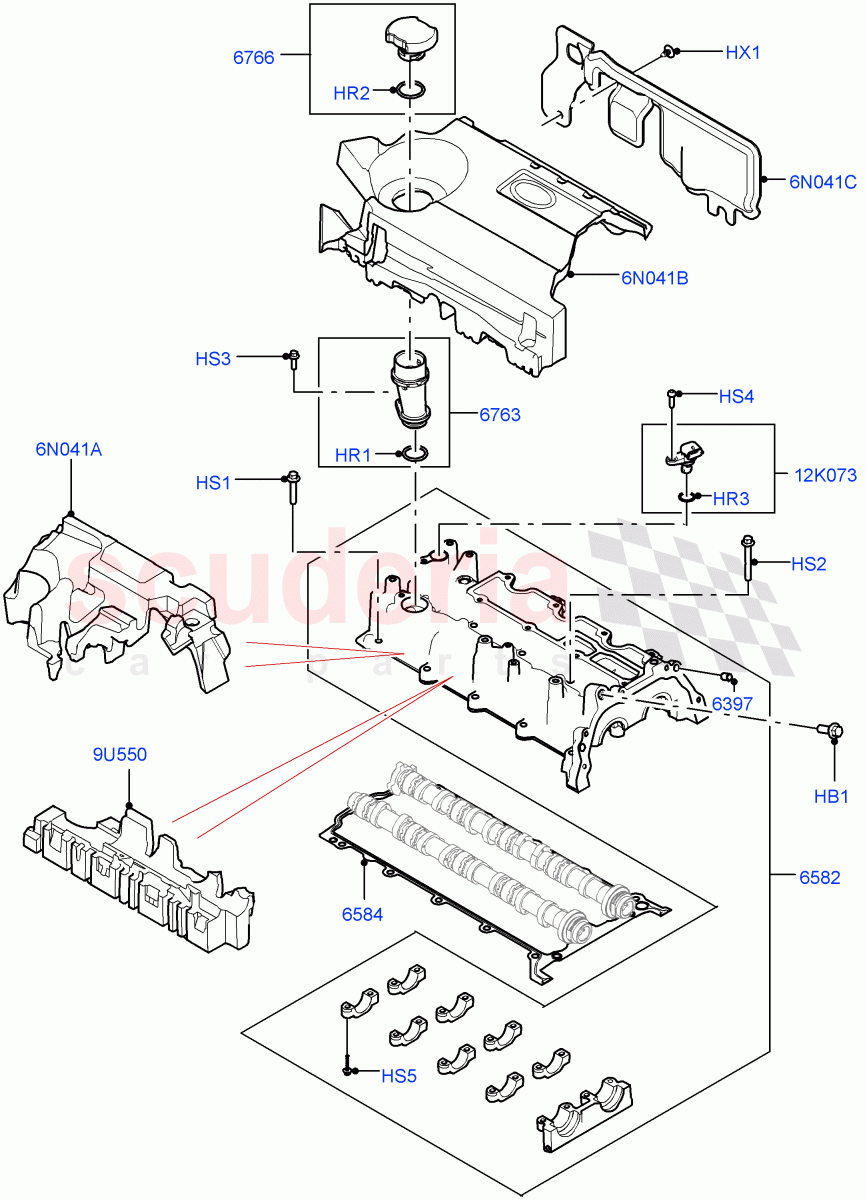

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074133	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075631	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073781	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154827	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000335	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139771	COVER - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073784	GASKET - CAMSHAFT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139789	PIPE - OIL INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073782	CAP - OIL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139669	INSULATOR PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139691	SENSOR - CAMSHAFT POSITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139665	INSULATOR - FOAM PAD	Enquire	To Order
	LR156111	INSULATOR - FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140693	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140691	INSULATOR - CYLINDER HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR074133	BOLT	LR074133 BOLT M10 X 30MM / From: MH000001	-	3	Enquire
HR1	LR075631	O-RING	LR075631 O-RING FILLER,	-	1	Enquire
HR2	LR073781	O-RING	LR073781 O-RING Filler Cap,	-	1	Enquire
HR3	LR154827	O-RING	LR154827 O-RING	-	1	Enquire
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: MH000001	-	11	Enquire
HS2	LR074137	SCREW	LR074137 SCREW M8 x 60mm / From: MH000001	-	5	Enquire
HS3	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: MH000001	-	1	Enquire
HS4	LR073720	SCREW	LR073720 SCREW M6 X 20MM / From: MH000001	-	1	Enquire
HS5	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: MH000001	-	20	Enquire
HX1	LR126160	PIN - FASTENING	LR126160 PIN - FASTENING 6.5 x 6, Insulator / From: MH000001	-	1	Enquire
6N041A	LR139665	INSULATOR - FOAM PAD	LR139665 INSULATOR - FOAM PAD Fuel Injectors / From: MH000001 / To: MH890340	-	1	Enquire
6N041A	LR156111	INSULATOR - FOAM PAD	LR156111 INSULATOR - FOAM PAD Fuel Injectors / From: MH890341	-	1	Enquire
6N041B	LR140693	COVER - ENGINE TOP	LR140693 COVER - ENGINE TOP Engine Cover / From: MH000001	-	1	Enquire
6N041C	LR140691	INSULATOR - CYLINDER HEAD	LR140691 INSULATOR - CYLINDER HEAD Rear / From: MH000001	-	1	Enquire
9U550	LR139669	INSULATOR PAD	LR139669 INSULATOR PAD Camshaft Cover / From: MH000001	-	1	Enquire
12K073	LR139691	SENSOR - CAMSHAFT POSITION	LR139691 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: MH000001	-	1	Enquire
6397	LR000335	DOWEL - PIN	LR000335 DOWEL - PIN	-	2	Enquire
6582	LR139771	COVER - CYLINDER HEAD	LR139771 COVER - CYLINDER HEAD From: MH000001	-	1	Enquire
6584	LR073784	GASKET - CAMSHAFT COVER	LR073784 GASKET - CAMSHAFT COVER Camshaft Cover / From: MH000001	-	1	Enquire
6763	LR139789	PIPE - OIL INLET	LR139789 PIPE - OIL INLET From: MH000001	-	1	Enquire
6766	LR073782	CAP - OIL FILLER	LR073782 CAP - OIL FILLER From: MH000001	-	1	Enquire

Cylinder Head Cover (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)
