Name: Thermostat/Housing & Related Parts (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)
Rating: 5.0 (1 reviews)

View All

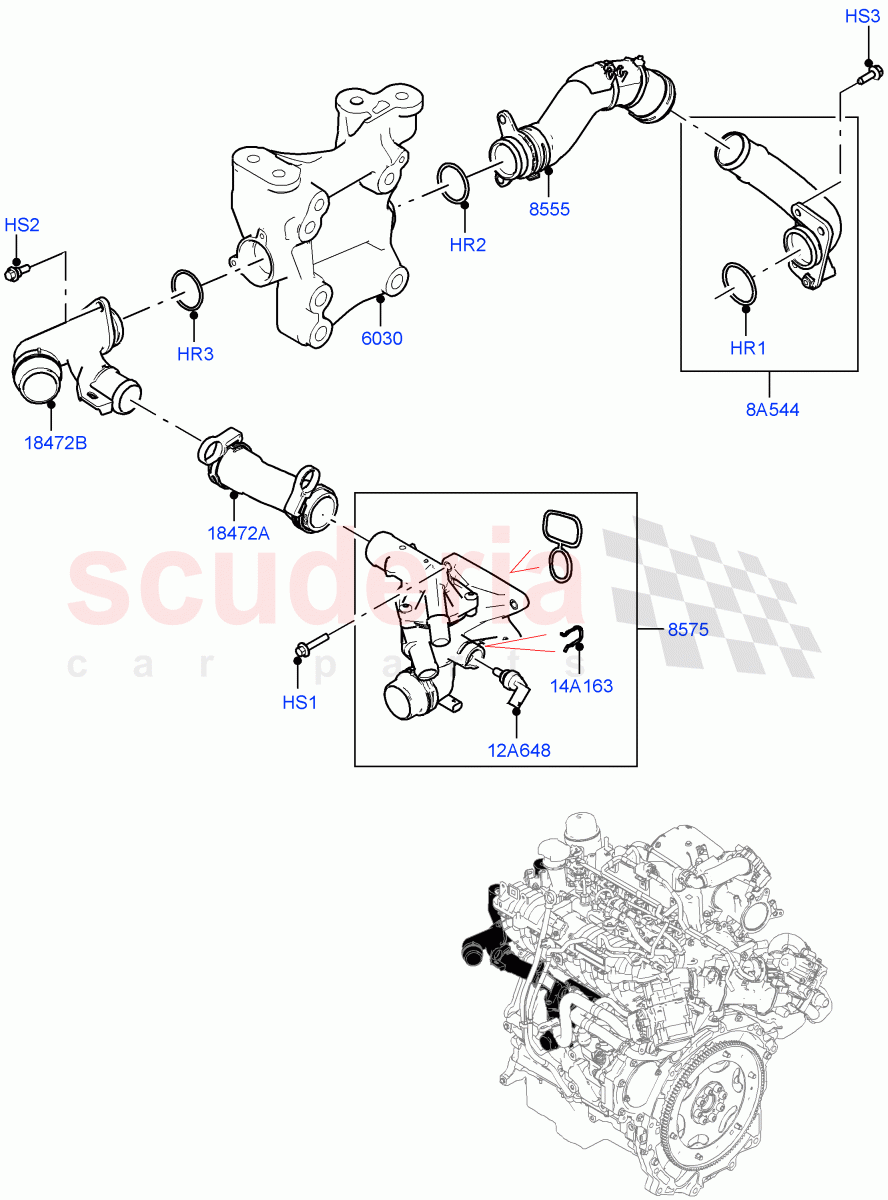

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR096839	O-RING	$5.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096840	O-RING	$12.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096841	O-RING	$5.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140267	SUPPORT - ENGINE MOUNTING - FRONT	$169.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR184620	TUBE	$88.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139875	THERMOSTAT	$80.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139821	TUBE - CONNECTING	$49.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115297	HOSE	$39.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144161	TUBE - BY-PASS	$151.84	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR096839	O-RING	LR096839 O-RING Elbow Connector,	$5.82	1
HR2	LR096840	O-RING	LR096840 O-RING	$12.09	1
HR3	LR096841	O-RING	LR096841 O-RING	$5.67	1
HS1	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: MH000001 IN STOCK	$2.55	4
HS2	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM / From: MH000001 IN STOCK	$0.69	4
HS3	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM / From: MH000001	$2.27	2
8A544	LR139821	TUBE - CONNECTING	LR139821 TUBE - CONNECTING Inlet, Water Pump / From: MH000001	$49.42	1
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE From: MH000001	$34.73	1
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP From: MH000001	$4.50	1
6030	LR140267	SUPPORT - ENGINE MOUNTING - FRONT	LR140267 SUPPORT - ENGINE MOUNTING - FRONT From: MH000001	$169.37	1
8555	LR184620	TUBE	LR184620 TUBE Rear, To Engine / From: MH000001	$88.20	1
8575	LR139875	THERMOSTAT	LR139875 THERMOSTAT From: MH000001	$80.43	1
18472A	LR115297	HOSE	LR115297 HOSE To Thermostat / From: MH000001	$39.22	1
18472B	LR144161	TUBE - BY-PASS	LR144161 TUBE - BY-PASS Front, To Engine / From: MH000001	$151.84	1

Thermostat/Housing & Related Parts (2.0L Aj21D4 Diesel Mid, Halewood (Uk)) ((V) Frommh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]
