Steering Gear (Halewood (Uk)) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Steering Gear (Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR026277 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR114075 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR026275 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR135927 JOINT - BALL Enquire To Order
Photo Part No Description Price (each) Stock
LR125336 KIT - CONNECTING ROD BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR117500 GEAR - STEERING Enquire To Order
LR117499 GEAR - STEERING Enquire To Order
LR138943 GEAR - STEERING Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR122368 KIT - BUSHING REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
LR114898 SHIELD - STEERING GEAR Enquire To Order
LR114899 SHIELD - STEERING GEAR Enquire To Order
LR138617 SHIELD - STEERING GEAR Enquire To Order
Photo Part No Description Price (each) Stock
LR125338 ROD - SPINDLE CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR059274 NUT - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
LR124111 WIRING - POWER STEERING Enquire To Order
LR124112 WIRING - POWER STEERING Enquire To Order
LR124114 WIRING - POWER STEERING Enquire To Order
...and 22 more part variants. See table on right for more details.
View All

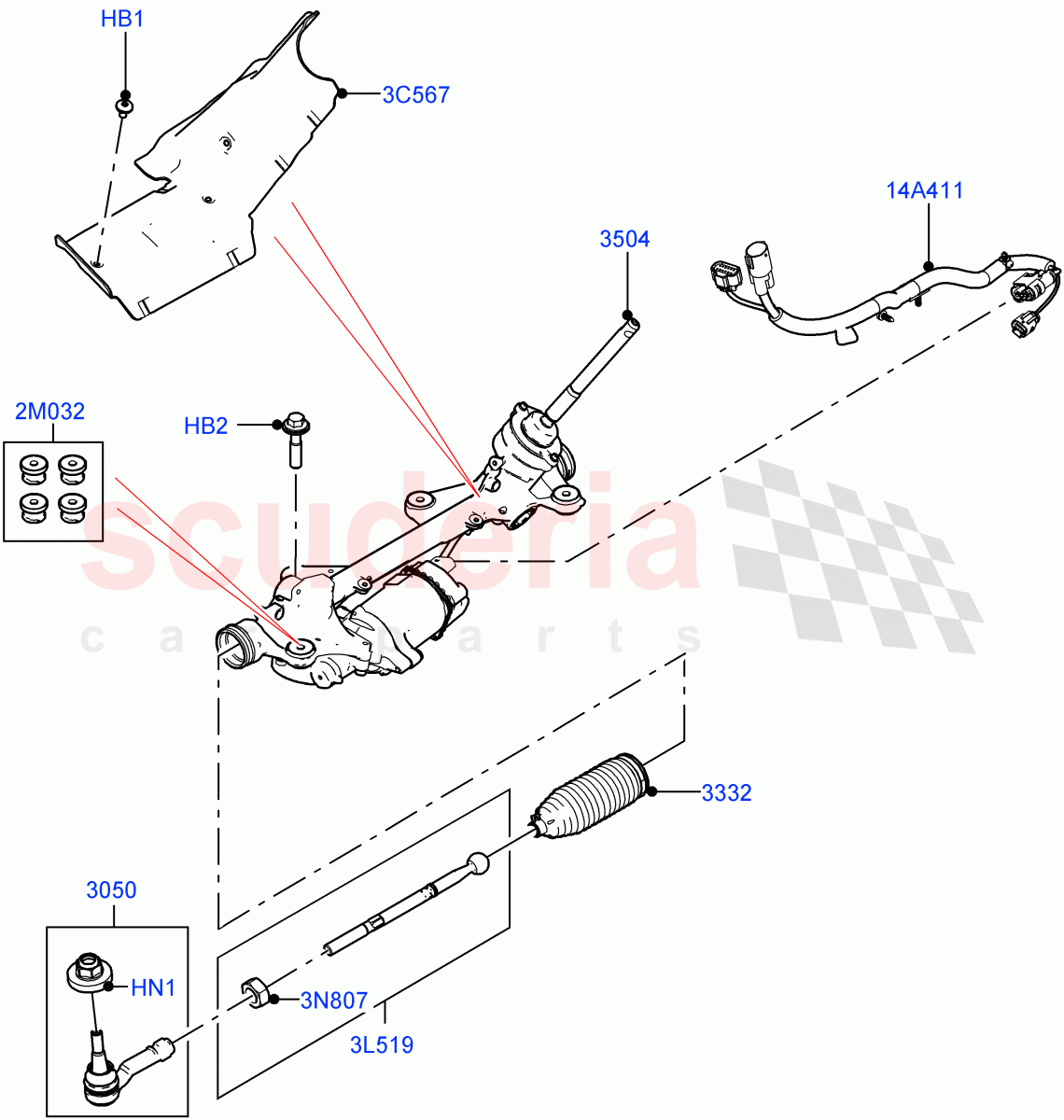

Steering Gear (Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR026277
BOLT
M6 x 12MM, Torx / From: LH000001 		- 3 Enquire
HB2 LR114075
BOLT
M10 X 45 / From: LH000001 		- 4 Enquire
HN1 LR026275
NUT - FLANGED
M14, RH/LH / From: LH000001 		- 2 Enquire
2M032 LR122368
KIT - BUSHING REPAIR
From: LH000001 		- 1 Enquire
3C567 LR114898
SHIELD - STEERING GEAR
LHD / From: LH000001 / To: LH849027 		- 1 Enquire
3C567 LR114899
SHIELD - STEERING GEAR
RHD / From: LH000001 		- 1 Enquire
3C567 LR138617
SHIELD - STEERING GEAR
LHD / From: LH849028 		- 1 Enquire
3L519 LR125338
ROD - SPINDLE CONNECTING
RH/LH / From: LH000001 		- 2 Enquire
3N807 LR059274
NUT - ADJUSTING
M16 / From: LH000001 		- 2 Enquire
14A411 LR124111
WIRING - POWER STEERING
2.0L AJ20P4 Petrol High PTA, EU6 Emissions, Less Emission Tank, RHD / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124112
WIRING - POWER STEERING
2.0L AJ20P4 Petrol High PTA, Japan DBA Emissions, Less Emission Tank, RHD / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124114
WIRING - POWER STEERING
2.0L AJ20D4 Diesel LF PTA, Euro Stage 4 Emissions, Less Emission Tank, RHD / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124115
WIRING - POWER STEERING
2.0L AJ20D4 Diesel High PTA, Less Emission Tank, RHD, Stage V Plus DPF / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124116
WIRING - POWER STEERING
2.0L AJ20D4 Diesel Mid PTA, Japanese Emission + DPF, RHD, With Diesel Exh Fluid Emission Tank / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124117
WIRING - POWER STEERING
2.0L AJ20D4 Diesel LF PTA, EU6D Diesel + DPF Emissions, RHD, With Diesel Exh Fluid Emission Tank / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124118
WIRING - POWER STEERING
2.0L AJ20P4 Petrol E100 PTA, EU6 Emissions, LHD, Less Emission Tank / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124120
WIRING - POWER STEERING
2.0L AJ20D4 Diesel LF PTA, Euro Stage 4 Emissions, LHD, Less Emission Tank / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124121
WIRING - POWER STEERING
2.0L AJ20D4 Diesel High PTA, LHD, Less Emission Tank, Stage V Plus DPF / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124123
WIRING - POWER STEERING
2.0L AJ20D4 Diesel Mid PTA, EU6 + DPF Emissions, LHD, With Diesel Exh Fluid Emission Tank / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124124
WIRING - POWER STEERING
2.0L AJ20D4 Diesel LF PTA, EU6D Diesel + DPF Emissions, LHD, With Diesel Exh Fluid Emission Tank / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR133626
WIRING - POWER STEERING
1.5L AJ20P3 Petrol High PHEV, EU6 Emissions, LHD, Less Emission Tank / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR137798
WIRING - POWER STEERING
1.5L AJ20P3 Petrol High PHEV, EU6D - Final (Petrol) Emission, Less Emission Tank, RHD / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR124119
WIRING - POWER STEERING
2.0L AJ20P4 Petrol Mid PTA, Beijing 6 Petrol Emission, LHD, Less Emission Tank / From: LH000001 / To: LH999999 		- 1 Enquire
14A411 LR143859
WIRING - POWER STEERING
2.0L AJ20P4 Petrol Mid PTA, EU2, Less Emission Tank, RHD / From: MH000001 		- 1 Enquire
14A411 LR143860
WIRING - POWER STEERING
2.0L AJ21D4 Diesel Mid, Less Emission Tank, RHD, Stage V Plus DPF / From: MH000001 / To: MH999999 		- 1 Enquire
14A411 LR143861
WIRING - POWER STEERING
2.0L AJ21D4 Diesel Mid, RHD, With Diesel Exh Fluid Emission Tank / From: MH000001 		- 1 Enquire
14A411 LR143862
WIRING - POWER STEERING
2.0L AJ20P4 Petrol Mid PTA, EU6D - Final (Petrol) Emission, Less Emission Tank, RHD / From: MH000001 		- 1 Enquire
14A411 LR143863
WIRING - POWER STEERING
1.5L AJ20P3 Petrol High, RHD / From: MH000001 		- 1 Enquire
14A411 LR143864
WIRING - POWER STEERING
2.0L AJ20P4 Petrol High PTA, LHD, Less Emission Tank, Proconve L6 Emissions / From: MH000001 		- 1 Enquire
14A411 LR143865
WIRING - POWER STEERING
2.0L AJ21D4 Diesel Mid, J-WLTP Emission, LHD, Less Emission Tank / From: MH000001 		- 1 Enquire
14A411 LR143866
WIRING - POWER STEERING
2.0L AJ21D4 Diesel Mid, LHD, With Diesel Exh Fluid Emission Tank / From: MH000001 		- 1 Enquire
14A411 LR143867
WIRING - POWER STEERING
2.0L AJ20P4 Petrol High PTA, LHD, Less Emission Tank, SULEV Requirements / From: MH000001 		- 1 Enquire
14A411 LR143868
WIRING - POWER STEERING
1.5L AJ20P3 Petrol High, LHD / From: MH000001 		- 1 Enquire
14A411 LR143860
WIRING - POWER STEERING
2.0L AJ21D4 Diesel Mid, Less Emission Tank, RHD / From: NH000001 		- 1 Enquire
3050 LR135927
JOINT - BALL
RH/LH / From: LH000001 		- 2 Enquire
3332 LR125336
KIT - CONNECTING ROD BOOT
RH/LH, With Clamps / From: LH000001 		- 2 Enquire
3504 LR117500
GEAR - STEERING
RHD / From: LH000001 / To: LH845427 		- 1 Enquire
3504 LR117499
GEAR - STEERING
LHD / From: LH000001 / To: LH844567 		- 1 Enquire
3504 LR138943
GEAR - STEERING
RHD / From: LH845428 / To: LH874567 		- 1 Enquire
3504 LR138942
GEAR - STEERING
LHD / From: LH844568 / To: LH874567 		- 1 Enquire
3504 LR140563
GEAR - STEERING
LHD / From: MH000001 / To: NH911255 		- 1 Enquire
3504 LR140564
GEAR - STEERING
RHD / From: MH000001 		- 1 Enquire
3504 LR161612
GEAR - STEERING
LHD / From: LH874568 / To: LH999999 		- 1 Enquire
3504 LR161613
GEAR - STEERING
RHD / From: LH874568 / To: LH999999 		- 1 Enquire
3504 LR171860
GEAR - STEERING
LHD / From: NH911256 		- 1 Enquire
