Front Seat Base (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

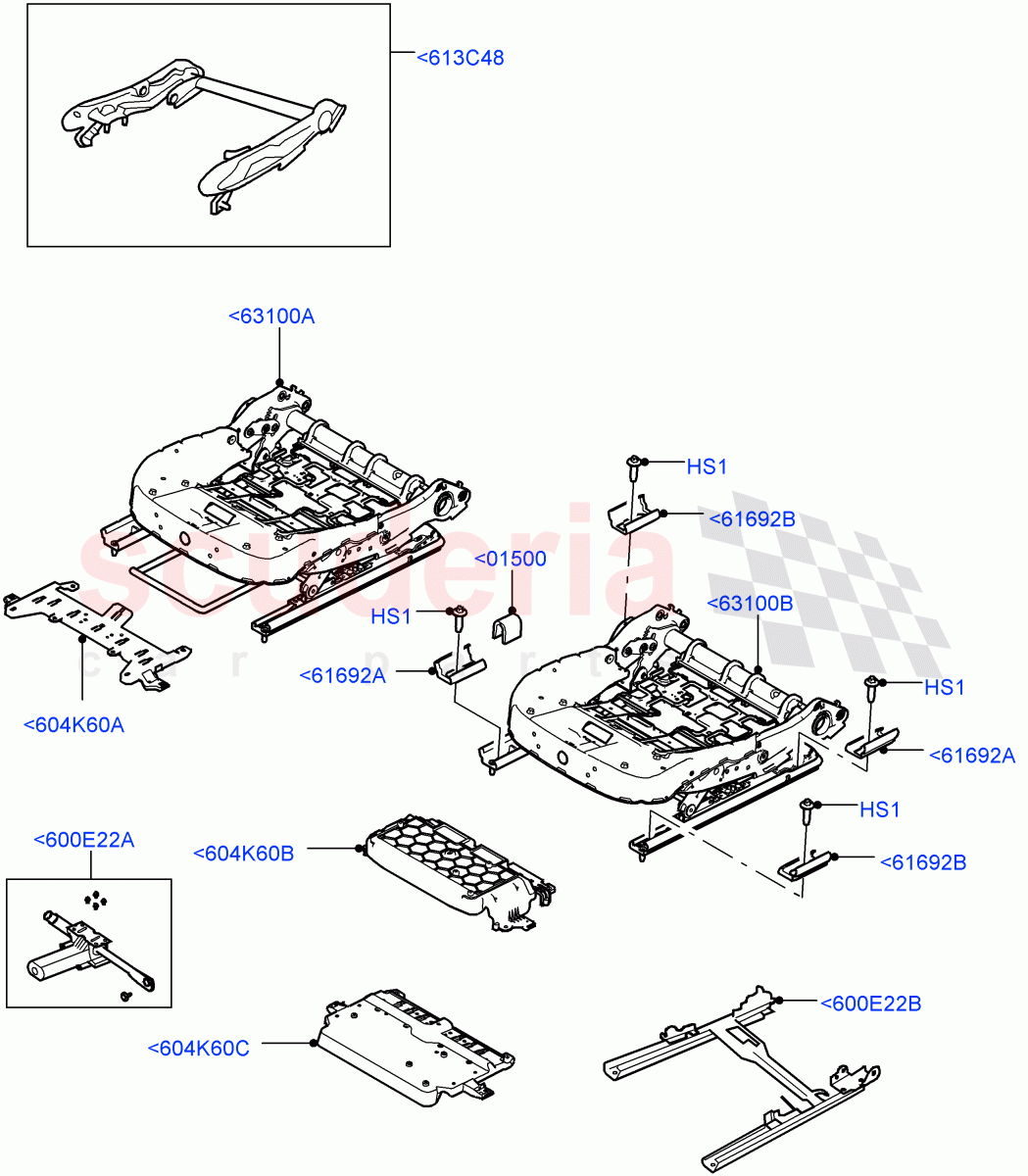

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Front Seat Base (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR067428	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068153	BRACKET - SEAT MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162957	KIT - SEAT CUSHION FRAME	Enquire	To Order
	LR162959	KIT - SEAT CUSHION FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058759	COVER - FRONT SEAT TRACK SUPPORT	Enquire	To Order
	LR058759	COVER - FRONT SEAT TRACK SUPPORT	Enquire	To Order
	LR142478	COVER - FRONT SEAT TRACK SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058764	COVER - FRONT SEAT TRACK SUPPORT	Enquire	To Order
	LR058764	COVER - FRONT SEAT TRACK SUPPORT	Enquire	To Order
	LR142479	COVER - FRONT SEAT TRACK SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074167	FRAME - SEAT	Enquire	To Order
	LR074170	FRAME - SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087291	FRAME - SEAT	Enquire	To Order
	LR087294	FRAME - SEAT	Enquire	To Order
	LR087295	FRAME - SEAT	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR154975	MOTOR - SEAT ADJUSTER	Enquire	To Order
	LR154975	MOTOR - SEAT ADJUSTER	Enquire	To Order
	LR154976	MOTOR - SEAT ADJUSTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR154842	MOTOR - SEAT ADJUSTER	Enquire	To Order
	LR154842	MOTOR - SEAT ADJUSTER	Enquire	To Order
	LR154843	MOTOR - SEAT ADJUSTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR058771	TRAY - PACKAGE	Enquire	To Order
	LR122820	TRAY - PACKAGE	Enquire	To Order
	LR122820	TRAY - PACKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077065	TRAY - PACKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088354	TRAY - PACKAGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<600E22A	LR154975	MOTOR - SEAT ADJUSTER	LR154975 MOTOR - SEAT ADJUSTER Electric Front Seat Adj Non-Memory / RH, Seat Height Adjust / To: KT999999	-	1	Enquire
<600E22A	LR154975	MOTOR - SEAT ADJUSTER	LR154975 MOTOR - SEAT ADJUSTER Seat Cushion Power Fore/Aft / RH, Seat Height Adjust / From: LT000001	-	1	Enquire
<600E22A	LR154976	MOTOR - SEAT ADJUSTER	LR154976 MOTOR - SEAT ADJUSTER Driver/Pass Elec Fr Seat Adj/Memory / LH, Seat Height Adjust / To: KT999999	-	1	Enquire
<600E22A	LR154976	MOTOR - SEAT ADJUSTER	LR154976 MOTOR - SEAT ADJUSTER Seat Cushion Power Fore/Aft / LH, Seat Height Adjust / From: LT000001	-	1	Enquire
<600E22B	LR154842	MOTOR - SEAT ADJUSTER	LR154842 MOTOR - SEAT ADJUSTER Electric Front Seat Adj Non-Memory / RH, Fore/Aft Adjustment / To: KT999999	-	1	Enquire
<600E22B	LR154842	MOTOR - SEAT ADJUSTER	LR154842 MOTOR - SEAT ADJUSTER Seat Cushion Power Fore/Aft / RH, Fore/Aft Adjustment / From: LT000001	-	1	Enquire
<600E22B	LR154843	MOTOR - SEAT ADJUSTER	LR154843 MOTOR - SEAT ADJUSTER Electric Front Seat Adj Drv Memory / LH, Fore/Aft Adjustment / To: KT999999	-	1	Enquire
<600E22B	LR154843	MOTOR - SEAT ADJUSTER	LR154843 MOTOR - SEAT ADJUSTER Seat Cushion Power Fore/Aft / LH, Fore/Aft Adjustment / From: LT000001	-	1	Enquire
<604K60A	LR058771	TRAY - PACKAGE	LR058771 TRAY - PACKAGE Manual Front Seat Adj Driver & Pass / From: GT000001 / To: JT999999	-	2	Enquire
<604K60A	LR122820	TRAY - PACKAGE	LR122820 TRAY - PACKAGE Manual Front Seat Adj Driver & Pass / ECU / From: KT000001 / To: KT999999	-	2	Enquire
<604K60A	LR122820	TRAY - PACKAGE	LR122820 TRAY - PACKAGE Seat Cushion Manual Fore/Aft / ECU / From: LT000001	-	2	Enquire
<604K60B	LR077065	TRAY - PACKAGE	LR077065 TRAY - PACKAGE Driver/Pass Elec Fr Seat Adj/Memory / RH/LH / From: GT000001 / To: KT999999	-	2	Enquire
<604K60C	LR088354	TRAY - PACKAGE	LR088354 TRAY - PACKAGE Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft / ECU, RH/LH / From: LT000001	-	2	Enquire
<613C48	LR162957	KIT - SEAT CUSHION FRAME	LR162957 KIT - SEAT CUSHION FRAME RH, Less Motor, Upper Frame	-	1	Enquire
<613C48	LR162959	KIT - SEAT CUSHION FRAME	LR162959 KIT - SEAT CUSHION FRAME LH, Less Motor, Upper Frame	-	1	Enquire
<01500	LR068153	BRACKET - SEAT MOUNTING	LR068153 BRACKET - SEAT MOUNTING From: GT000001	-	1	Enquire
<61692A	LR058759	COVER - FRONT SEAT TRACK SUPPORT	LR058759 COVER - FRONT SEAT TRACK SUPPORT Front RH, LH Rear, RH Seat / From: GT000001 / To: JT999999	-	2	Enquire
<61692A	LR058759	COVER - FRONT SEAT TRACK SUPPORT	LR058759 COVER - FRONT SEAT TRACK SUPPORT LH Rear, LH Seat / From: GT000001	-	1	Enquire
<61692A	LR142478	COVER - FRONT SEAT TRACK SUPPORT	LR142478 COVER - FRONT SEAT TRACK SUPPORT Front RH, LH Rear, RH Seat / From: LT000001	-	2	Enquire
<61692B	LR058764	COVER - FRONT SEAT TRACK SUPPORT	LR058764 COVER - FRONT SEAT TRACK SUPPORT LH Front, LH Seat, RH Rear / From: GT000001 / To: JT999999	-	2	Enquire
<61692B	LR058764	COVER - FRONT SEAT TRACK SUPPORT	LR058764 COVER - FRONT SEAT TRACK SUPPORT RH Rear, RH Seat / From: GT000001	-	1	Enquire
<61692B	LR142479	COVER - FRONT SEAT TRACK SUPPORT	LR142479 COVER - FRONT SEAT TRACK SUPPORT LH Front, LH Seat, RH Rear / From: LT000001	-	2	Enquire
<63100A	LR074167	FRAME - SEAT	LR074167 FRAME - SEAT Manual Front Seat Adj Driver & Pass / RH, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: GT000001	-	1	Enquire
<63100A	LR074170	FRAME - SEAT	LR074170 FRAME - SEAT Manual Front Seat Adj Driver & Pass / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: GT000001	-	1	Enquire
<63100B	LR087291	FRAME - SEAT	LR087291 FRAME - SEAT Electric Front Seat Adj Non-Memory / RH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: GT000001 / To: KT999999	-	1	Enquire
<63100B	LR087294	FRAME - SEAT	LR087294 FRAME - SEAT Electric Front Seat Adj Non-Memory / LH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: GT000001 / To: KT999999	-	1	Enquire
<63100B	LR087295	FRAME - SEAT	LR087295 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / LH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: GT000001 / To: KT999999	-	1	Enquire
<63100B	LR087292	FRAME - SEAT	LR087292 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / RH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: GT000001 / To: KT999999	-	1	Enquire
<63100B	LR129299	FRAME - SEAT	LR129299 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft / RH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: LT000001	-	1	Enquire
<63100B	LR129307	FRAME - SEAT	LR129307 FRAME - SEAT Electric Front Seat Adj Non-Memory, Seat Cushion Power Fore/Aft, With Driver 8 Way Pwr.Seat Adjuster, With Front Seat Cushion Power Tilt / LH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: LT000001	-	1	Enquire
<63100B	LR129302	FRAME - SEAT	LR129302 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft / LH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: LT000001	-	1	Enquire
<63100B	LR129304	FRAME - SEAT	LR129304 FRAME - SEAT Less Seat Adjuster, Seat Cushion Power Fore/Aft, With Front Seat Cushion Power Tilt / Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: LT000001	-	1	Enquire
<63100B	LR129298	FRAME - SEAT	LR129298 FRAME - SEAT Electric Front Seat Adj Non-Memory, Less Front Seat Cushion Tilt, Seat Cushion Power Fore/Aft, With Pass 6 Way Power Seat Adjuster / RH, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: LT000001	-	1	Enquire
<63100B	LR129301	FRAME - SEAT	LR129301 FRAME - SEAT Less Front Seat Cushion Tilt, Less Seat Adjuster, Seat Cushion Power Fore/Aft / LH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: LT000001	-	1	Enquire
HS1	LR067428	SCREW	LR067428 SCREW M10 x 32MM / From: GT000001	-	8	Enquire
